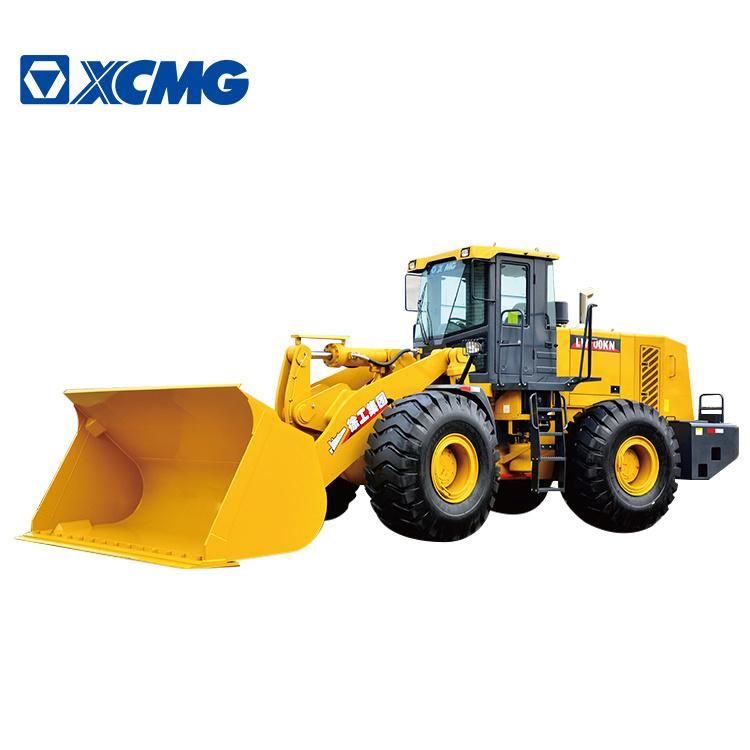

• Model NO.：LW700KN
• Type：Large Loader
• Rated Operating Loade：7000kg
• Bucket Capacity：6m3
• Machine Weight：25500kg
• Dumping Height：3515mm
• Reach at Maximum Lift：1388mm
• Engine Model：226 Kw
• Articulated Angle：40º
• Transport Package：Comply with Export Packaging Requirements
• Specification：9455× 3430× 3630mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：84295100
• Production Capacity：10000,Year

DescriptionUnitParameter valueWheel base mm3450Tread mm2360Dump clearance at maximum liftmm3515Reach at maximum lift mm1388Height of hinge at maximum lift height mm4780Working height(fully lifted) mm6560Overall machine dimension L×W×H mm9455×3430×3630Rated operating load kg7000Bucket capacity m³6Machine weight kg25500Max.breakout force kN150Max.horse powerkN220Lifting time of booms≤6.5Total cycle time s≤11Minimum turning radius (at tire center) mm5920Articulation angle °±40 Gradeability °28Tyre size  26.5R25EngineModel  WD12G310E221 Rated Power/Speed kW/rpm 226/2100  Travel Speed1-gear(F/R) km/h  2-gear(F/R)km/h 12.7/12.73-gear(F/R)km/h 27/274-gear(F)km/h 38

Advantage

1,The latest cab features higher safety, broader visual field, and more comfortable operations.

2,The scientifically matched and in-depth optimized drive system and the transmission and drive axle of international advanced quality achieve higher efficiency and reliability.

3,The three-segment drive shaft is applied and the front drive shaft adopts the flexible connection to reduce the impact on drive shaft and improve the drive reliability.

4,The extended wheelbase heavy-duty design is analyzed and optimized by 3D simulation to realize high reliability and better energy-conservation.

5,The double-pump confluence system, the hydraulic flow amplifying steering, and the single-joystick pilot control are applied to realize high efficiency and flexibility.

6,The pressure unloading technology is applied to realize automatic unloading, reduce the overflow loss, and achieve higher traction force during operations under complicated environment.

7,The single-row radiator with large fin spacing is applied to thoroughly solve the thermal balance difficult during opera-tions under diversified severe environments.
