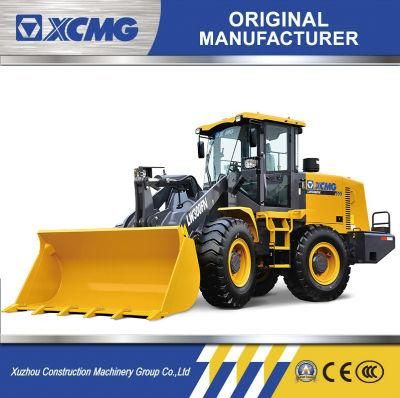

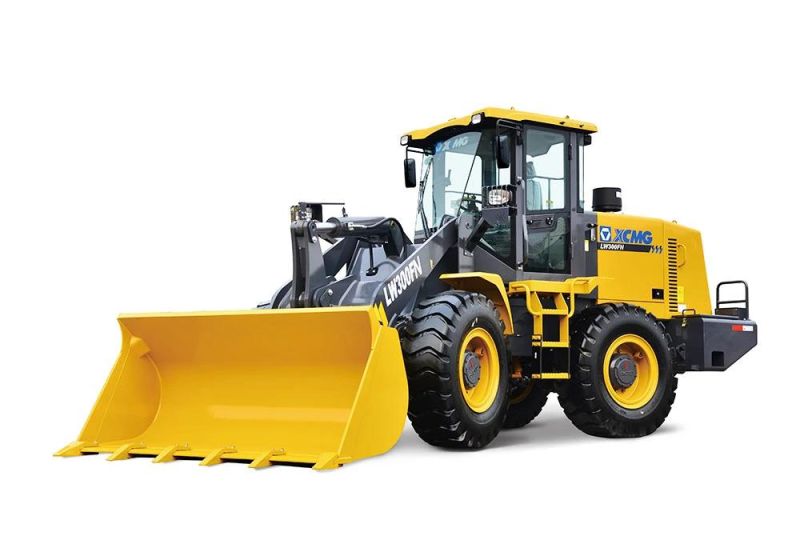

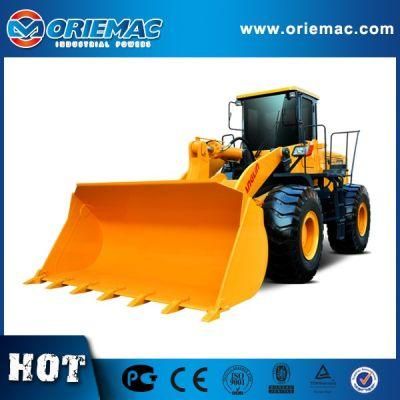

• Model NO.：LW300FN
• Type：Medium-sized Loader
• Rated Operating Loade：3000kg
• Bucket Capacity：1.5~2.5
• Machine Weight：10600±200
• Dump Clearance at Maximum Lift：2770~3260mm
• Reach at Maximum Lift：1010~1210mm
• Max.Breakout Force：130
• Engine Model：92,2300 Kw,R,Min
• Articulated Angle：35º
• Transport Package：Comply with Export Packaging Requirements
• Specification：7050× 2482× 3118
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：84295100
• Production Capacity：10000,Year

ItemSpecificationUnitRated operating load3000kgBucket capacity1.5~2.5m³Machine weight10600±200kgDump clearance at maximum lift2770~3260mmReach at maximum lift1010~1210mmWheel base2600mmTread1850mmHeight of hinge at maximum lift height3830mmWorking height(fully lifted)4870mmMax.breakout force130kNMax.horse power95kNHydraulic cycle time-raise5.5sTotal hydraulic cycle time10sMin. turning radius over tyres5165mmArticulation angle35±1°Gradeability28°Tyre size17.5-25-12PR Overall machine dimension L×W×H7050×2482×3118 ModelWP6G125E22 Emission standardsEmission 2 Rated Power/Speed92/2300kW/rpmFuel Tank170LHydraulic Tank170L I-gear(F/R)8/10km/h II-gear(F/R)13/30km/hTravel speedIII-gear(F)24/-km/h IV-gear(F)40/-km/hStructure and specification are subject to change without notice.In case there is any difference between the description of the machine and the substantial machine,the substantial machine should govern.
