• Model NO.：LSD1000
• Certification：ISO9001: 2000, CE
• Condition：New
• Dimension：3460X1820X1800mm
• Diesel Engine Model：R180
• Diesel Engine Power：5.67kw,2660rpm
• Empty Weight：1180kgs
• Loading Weight：1000kgs
• Tank Capacity：1000L
• Asphalt Pump Displacement：30ml,Min
• Bitumen Temperature：120-160
• Insulation Thicknes：50mm
• Air Compressor：0.08 M3,Min
• Transport Package：by Sea Required
• Specification：ISO
• Trademark：Kudat
• Origin：China
• HS Code：870590999
• Production Capacity：50, 000 PCS,Year

Basic Info.

Model NO. LSD1000 Certification ISO9001: 2000, CE Condition New Dimension 3460X1820X1800mm Diesel Engine Model R180 Diesel Engine Power 5.67kw/2660rpm Empty Weight 1180kgs Loading Weight 1000kgs Tank Capacity 1000L Asphalt Pump Displacement 30ml/Min Bitumen Temperature 120-160 Insulation Thicknes 50mm Air Compressor 0.08 M3/Min Transport Package by Sea Required Specification ISO Trademark Kudat Origin China HS Code 870590999 Production Capacity 50, 000 PCS/Year

Product Description

LSD1000 Trailer Aspshalt Distributor with Diesel burner
LSD1000 Trailer Asphalt Distributor
*Energy-saving, environmental Protection
*Simple reliable
*Opration Convenience
*Fast Transportantion

LSD1000 trailer asphalt distributor is a repairing maintenance equipment; It adapt to country road low grade road, high quality and good price, good stability and using expedience.

This trailer designed with hand spray gun, it's quite easy for operation.
General Description:

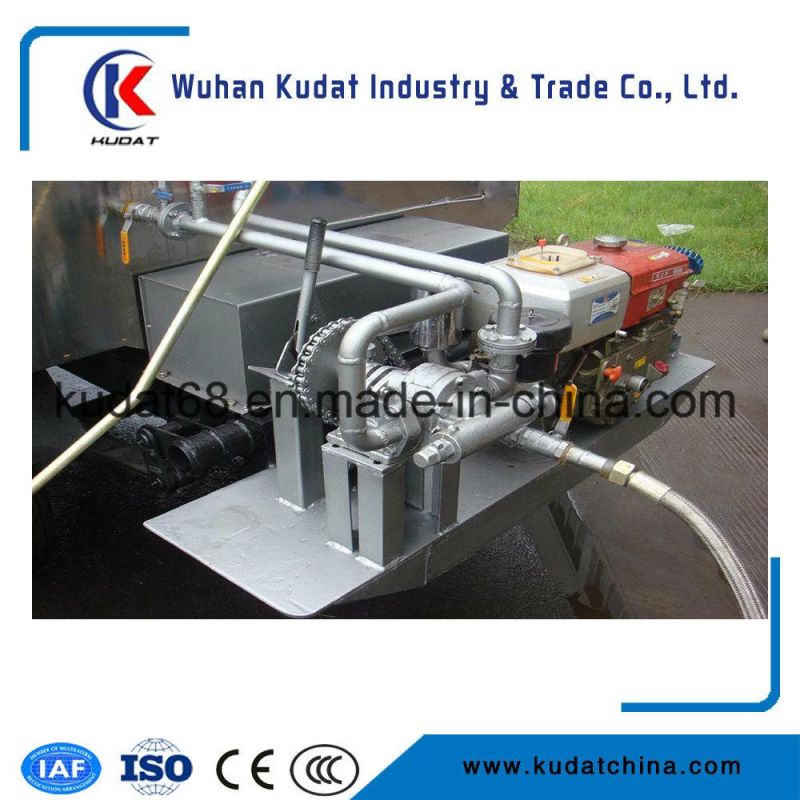

The unit including tank mounted on trailer, made up of by asphalt tank, drive system, transmission system, pipeline system, asphalt pump, heating system, hand sprayer system etc. This is units can suitable for hot bitumen and emulsion bitumen transportation and spray, use hot bitumen the temperature need to reach 160~180 degree.

Asphalt tank:

The Max. Tank capacity is 1000 Liters, the tank made by carbon steel inside with 50mm thickness heat preservation material (silicic acid aluminum). Hand brake, inside the tank has heating system, also the tank connecting with hand spray system, and the spray value around 30 L/min.


Heating system:

The vehicle has its own heating system, the burner model is PQ5, the fuel tank capacity is 13.5 Liters, the burner flame could be adjusted by the hand valve.

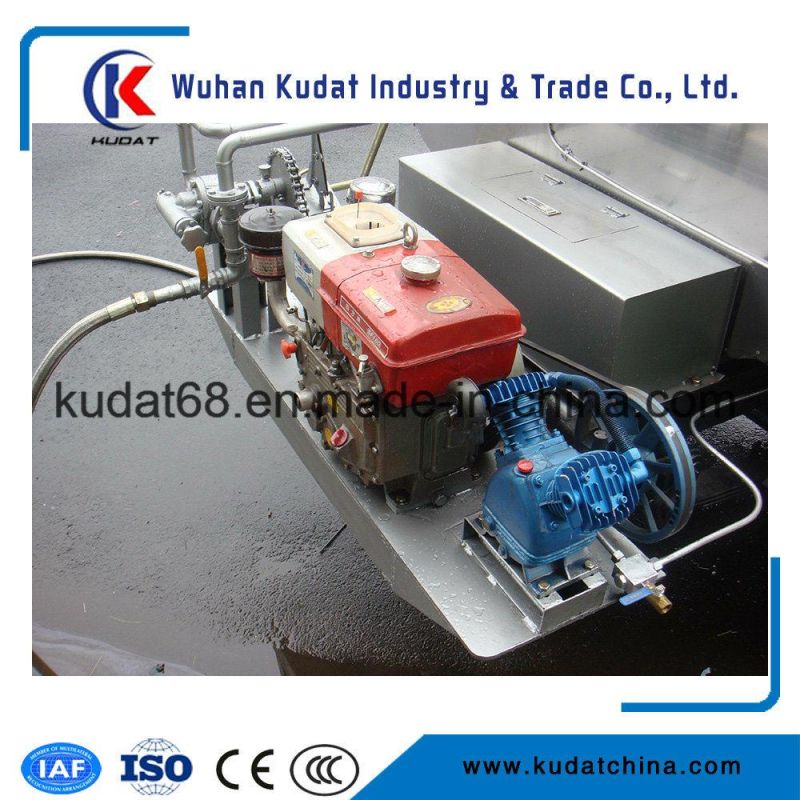

Drive system:
We adopted diesel engine, the model is R180, power 5.67/2660 (Kw/rpm).

ITEM	PARAMETER
Model	LSD1000
Dimension(mm)	3460X1820X1800
Diesel Engine Model	R180
Diesel Engine Power(Kw/r/min)	5.67/2660
Empty weight(Kg)	1180
Loading Weight(Kg)	1000
Tank Capacity(L)	1000
Asphalt Pump Displacement (L/min)	30
Bitumen temperature	120-160
Insulation thicknes(mm)	50
Air compressor	0.08 m³/min
