Mini Crawler Hydraulic Excavator with CE (CT85-8)
Wuhan Kudat Industry & Trade Co., Ltd.- Type：Crawler Excavator
- Bucket：Shovel
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.5~1.0m³
- Size：Small-Scale
Base Info
- Model NO.：CT85-8
- Certification：CE
- Condition：New
- Color：Yellow
- Operating Weight：8150kg
- Track Shoe Width：450mm
- Arm Length：1700mm
- Boom Length：3500mm

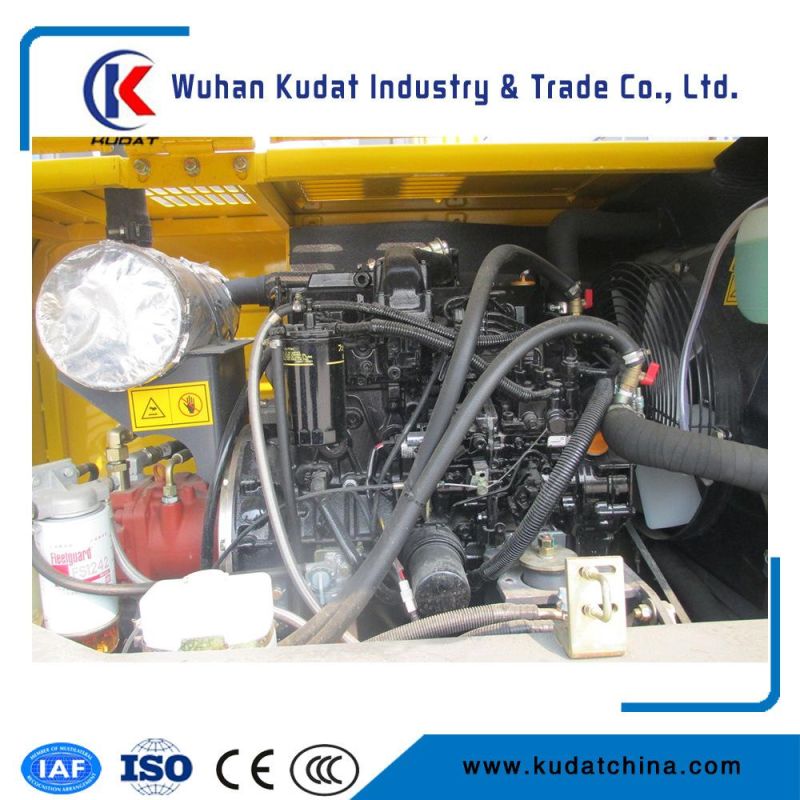

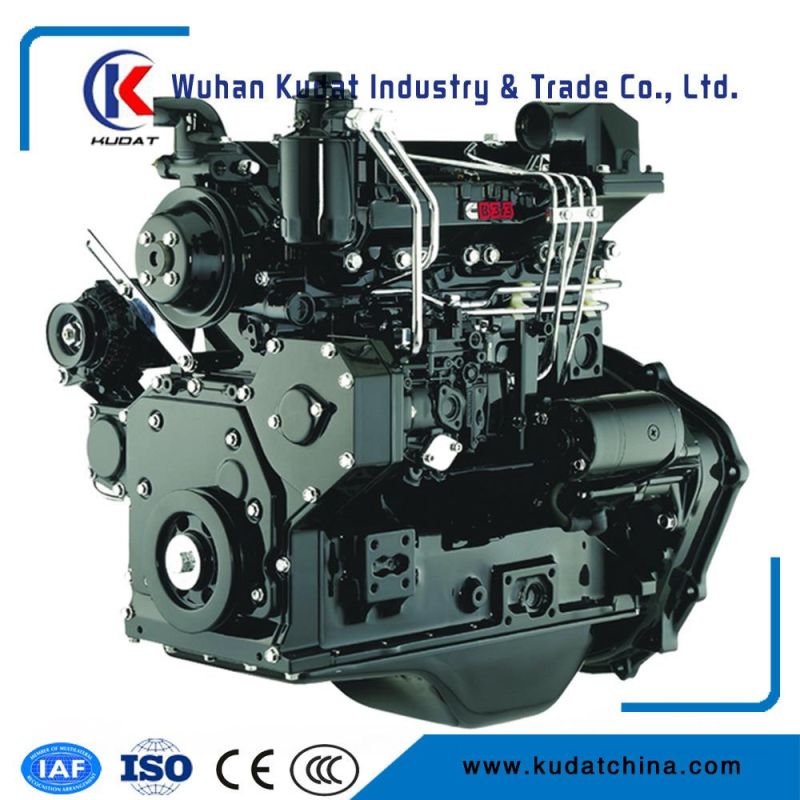

- Engine Model：Yanmar 4tnv98-S
- Number of Cylinder：4
- Max. Power/Rpm：56.5kw,2200rpm
- Max Digging Radius：6810 mm
- Max Digging Depth：4375 mm
- Transport Package：Bulk
- Specification：SGS CE
- Trademark：kudat
- Origin：China
- Production Capacity：500PCS,Year
Description
Hydraulic system (KYB)Main pump type gear pump Flow pressure 20.9 l/min @ 2200 rpm/3.9 MPa Attachments overload pressure boom/arm/bucket 30.5 MPa Dimensions Boom length 3905 mm Arm length 1750 mm Upper structure width 2170 mm Undercarriage width 2100 mm Overall height with cabinet 2540 mm Rear swing radius 1835 mm Clearance under counter weight 785 mm Tumbler distance 2200 mm Ground clearance 370 mm Overall length for transportation 6430 mm Working range Max digging radius 6810 mm Max digging radius at ground level 6680 mm Max digging depth 4375 mm Max vertical wall digging depth 3200 mm Max digging height 7310 mm Max dumping height 4950 mm Max dozer cutting depth 430 mm Max dozer lifting height 310 mm
