• Model NO.：WSFQ
• Specification：ISO, CO, CE, CCC
• Trademark：GMEC
• Origin：Zhengzhou
• HS Code：84283200
• Production Capacity：800 Sets Per Month

Basic Info.

Model NO. WSFQ Specification ISO, CO, CE, CCC Trademark GMEC Origin Zhengzhou HS Code 84283200 Production Capacity 800 Sets Per Month

Product Description

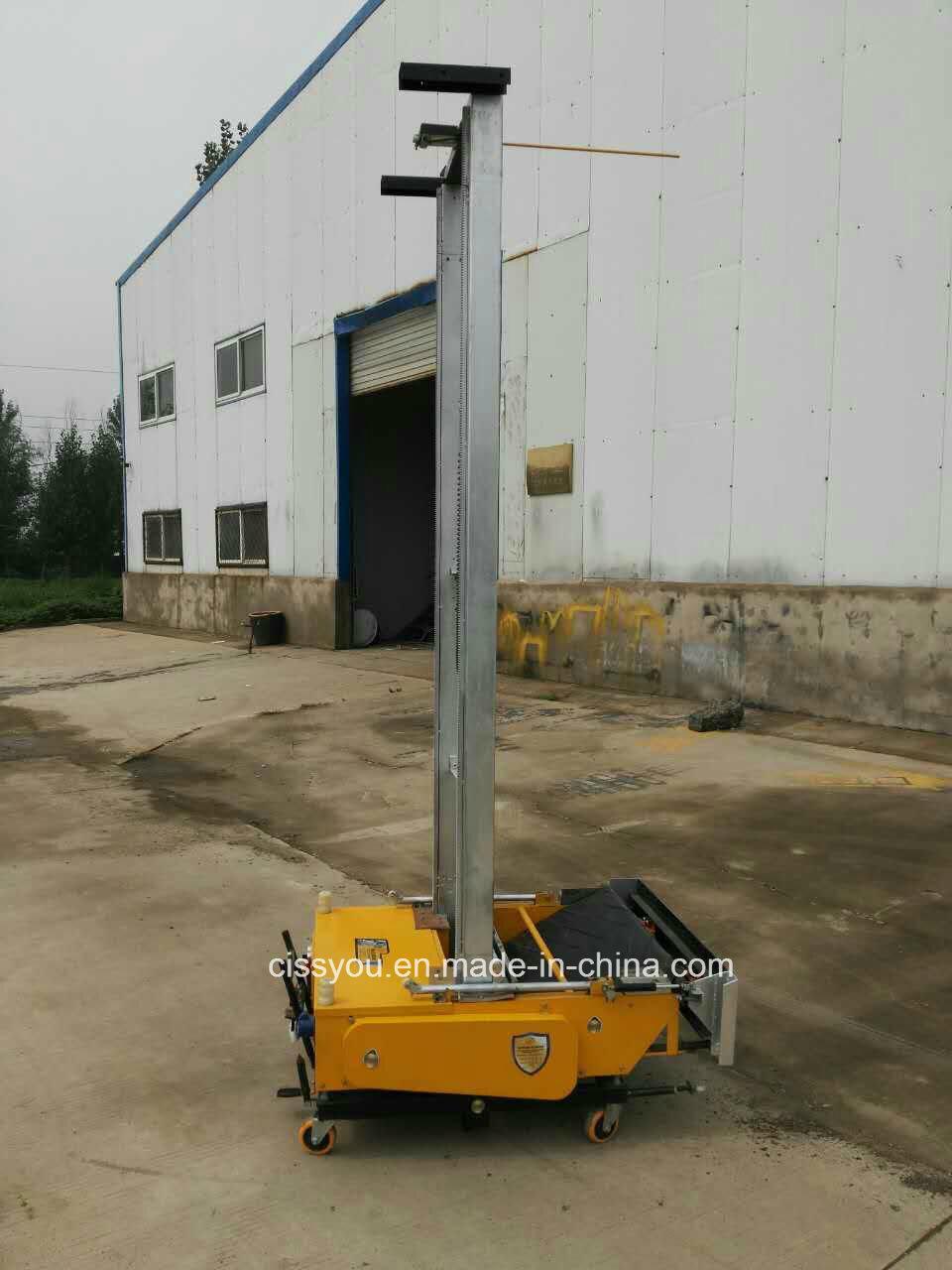

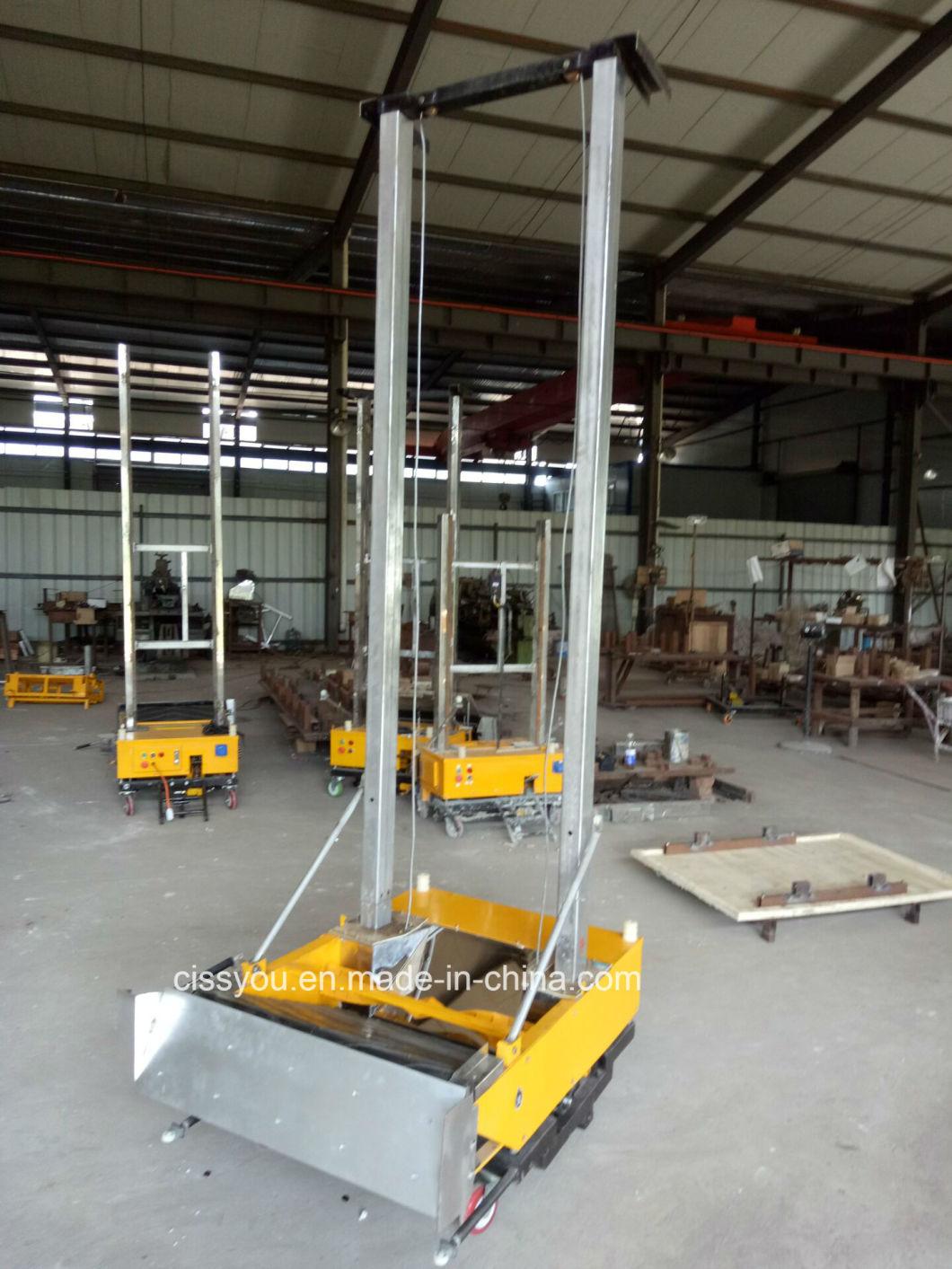

              Automatic cement render wall plaster wall machine


Machine introduction of Cement plastering machine:
1. The machine has solved the defect that previous machines cannot render the top of the wall.
It takes only several seconds to fix the machine vertically and flatly and less one minute from the
Bottom to the top of the wall.


2. It renders on bricks and blocks with cement mortar, ready mix mortar, lime mortar or gypsum mortar.

3. It is mainly used for dweller building, office building, as well as domestic indoor tilt wall plastering,
With the high efficiency
It could replace the manual work, and the wall space is smooth and glossy.

4. It can plaster include cement wall, brick and concrete wall, light body brick wall, baking-free brick wall and so on.

5. The thickness of the ash can be adjusted. Easy to operate with one or two people.
The quality is up to the international standard. High sensitivity leakage protection device is safety and reliability.


The main technical performance indicators.

Single-phase motor	0.65kw	Startup mode	Control button ( distribution box)
Motor speed	1440n/min	Reducer	Reduction ratio30 :1
Plastering speed	5m/39s	Plaster width	0.3m- 0.8m
Plastering height	0.5- 5m	Plaster efficiency	2.56 /39s
Plastering time	39s	A plastered area	2.56/39s
Secondary calender time	39s	Secondary pressure light area	2.56/39s
Flatness error	≤3mm	Vertical error	≤ 3mm
Flatness, plaster thickness , Plaster joints, adjust the motor	24v 30w	Walking speed	10m/ Minute
Vertical adjustment motor	24v 30w	Alignment guide motor	550W
Walking mot	550w	Reducer	30 :1
Lifting motor	0.65kw	Reducer	30 :1
Console shape size	30cm*50cm*80cm	Console weight	20kg
The plaster drive motor	650w	Reducer	30 :1
The main rail height	176cm	Positioning rail height	176cm
