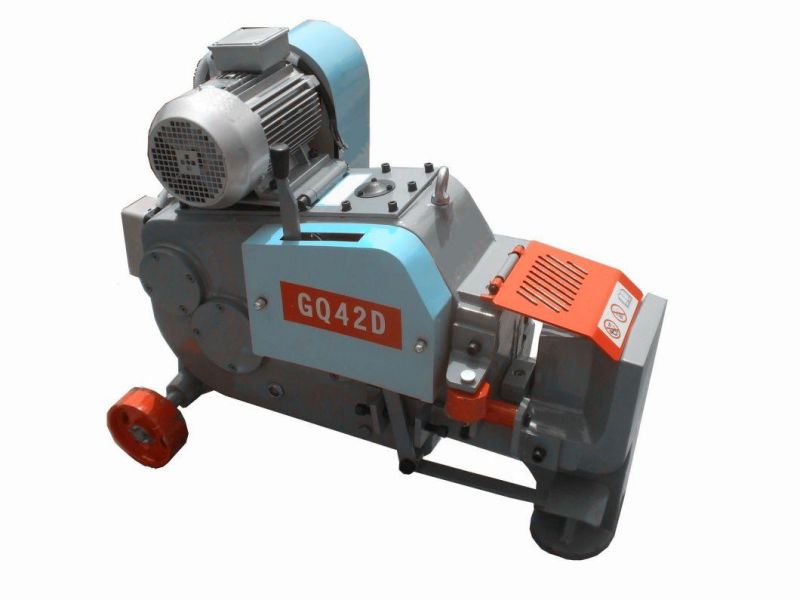

Steel Cutting Machine (GQ42 3.0KW/380V)

Ningbo Ace Machinery Co., Ltd.
  • Item：Steel Cutting Machine
  • Power：4.0kw
  • Voltage：380 V
  • Max Flat Steel：60 X 12 Mm
  • Max Square Steel：32 X 32 Mm
  • Weight：510kg

Base Info

  • Model NO.：GQ42
  • Packing Size：1100X500X1050mm
  • Transport Package：Hob with Carton
  • Specification：42mm
  • Trademark：KZW
  • Origin：Ningbo, China
  • HS Code：8461500090
  • Production Capacity：1500 PCS,Year

Description

ModelGQ42DGQ55DThe Max. diameter of cutting off steel bar  A3# (tensile strength σb ≤ 450MPa)Φ6~42mm Φ6~55mm The Max. diameter of cutting off steel bar 45# (tensile strength σb ≤ 450MPa)Φ6~36mm Φ6~44mm The Max. size of cutting off square steel(Q235A) 32 × 32mm(Q235A) 42 × 42mmContinuous cutting off number48 times / min41 times / minModel of the motorY100L-2Y100M-2Power of the Motor3.0KW4.0KWVoltage of the motor380V /50HZ380V /50HZMotor speed2880 r / min2880 r / minWhole weight510kg715kgsOverall dimension1100 × 500 × 1050mm1200*600*1100mm
Recommendation for piece number of simultaneously cutting off steel bars with diameters smaller than φ22mm
 (mm)
Diameter of steel bar (mm)4~810~1314~1819~22More than 22
Cutting off piece number each time65321GQ4065321GQ40C65321GQ35D64321GQ42D85432GQ45E85432GQ5085432GQ55D96543GQ40AG65321
