• Model NO.：WSFQ
• Vibrating Amplitude：2.2mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Blue
• Positioning Rail Height：1760mm
• Key Word 1：Plaster Machine
• Key Word 2：Render Machine
• Key Word 3：Wall Plaster Machine
• Key Word 4：Wall Plastering Machine
• Transport Package：Export Wooden Cases
• Specification：ISO, CO, CE, CCC
• Trademark：GMEC
• Origin：Zhengzhou
• HS Code：84283200
• Production Capacity：1000 Sets Per Month

Basic Info.

Model NO. WSFQ Vibrating Amplitude 2.2mm Certification ISO9001: 2000, CE Condition New Color Blue Positioning Rail Height 1760mm Key Word 1 Plaster Machine Key Word 2 Render Machine Key Word 3 Wall Plaster Machine Key Word 4 Wall Plastering Machine Transport Package Export Wooden Cases Specification ISO, CO, CE, CCC Trademark GMEC Origin Zhengzhou HS Code 84283200 Production Capacity 1000 Sets Per Month

Product Description

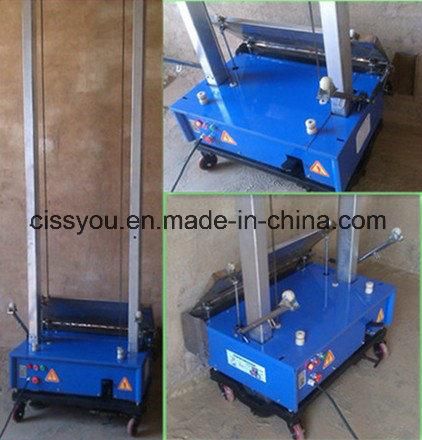

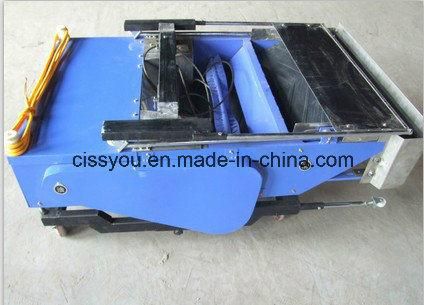

             Auto-matic Mortar Wall render Plastering Machine






Founction: Auto rendering machine provides high quality wall rendering. Machine can achieve mortar coating and smoothing in the same time.
About the plastering machine:
1. Automatic plastering machine is new machine instead of labor in construction plastering area.
2. The capacity is as 15 professional plasterers.
3. The quality is subject to international wall plastering standard.
4. Easy operation (can be operated by normal person or construction workers)
5. Saving more than 20% raw material (cement &sand)
Features and advantages:
1. Our machine utilize the conveyor taking mortar forwardly and upwardly, It can plaster to the top of the wall. In this aspect our machine is unique. The conveyor can take mortar or stop in any position by hand control.
2. The spatula can change the angle as your wish, plastering the wall by rising large angle, sharpening and pressing by angle decline, thus guaranteed zero vertical error and plastering to the roof.
3. The hydraulic telescopic rod can make the machine installation in 10 second and the chassis is not stress. When
You want to move the machine you just can release the rod
As moving jack. The main rod declined by gravitation. This kind of installation is the most fast and stable one.
4. The width of spatula is designed according the width of the door, The machine can go into the room freely. It can reach the inside corner and the exposed corner.
5. There are two min-vibrators after the spatula, thus you need not to worry about Hollowing and adhesion.
6. Our machine adopted the universal wheel after sealing and it can easily move to any place you like.
7. This machine is totally artificially designed.

The main technical performance indicators.

Single-phase motor	0.65kw	Startup mode	Control button ( distribution box)
Motor speed	1440n/min	Reducer	Reduction ratio30 :1
Plastering speed	5m/39s	Plaster width	0.3m- 0.8m
Plastering height	0.5- 5m	Plaster efficiency	2.56 /39s
Plastering time	39s	A plastered area	2.56/39s
Secondary calender time	39s	Secondary pressure light area	2.56/39s
Flatness error	≤3mm	Vertical error	≤ 3mm
Flatness, plaster thickness , Plaster joints, adjust the motor	24v 30w	Walking speed	10m/ Minute
Vertical adjustment motor	24v 30w	Alignment guide motor	550W
Walking mot	550w	Reducer	30 :1
Lifting motor	0.65kw	Reducer	30 :1
Console shape size	30cm*50cm*80cm	Console weight	20kg
The plaster drive motor	650w	Reducer	30 :1
The main rail height	176cm	Positioning rail height	176cm

Why Choose Us
1.We are the direct manufacturer.
· All the machines we sell are made by ourselves with low price and high quality.
2.Perfect service system.
· If any interest on our machine, please feel free to contact me and let me know your requirement on capacity and material size.
· We are professional machine manufacturer, we will help to choose the most suitable machine for you.
· Whole plant design and drawings are free after set order.
· Quality Commitment: Quality Warranty, Grantee Period: 1 year.
· Supply wearing parts with favorable price and long term after-sales service.If you need, we will dispatch professional engineer for installation, trail and worker training if needed.
3.If you are new for this business,we will help you.
Many thanks for your trust.we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.

Established in 2006, our company is one professional manufacturer integrating R&D,manufacturing and trading,we are committed to feed machine,pellet machine,hammer mill,grinder mill,briquette machine,snack food extruder machine,coal process machine line,straw briquette machine line,food machine line,farming,agriculture equipments for years.We have 80 staff members and 16 technicians of research team. So we have more competitive strength,advanced processing technology and scientific management.And we are located in Zhengzhou city,Henan province,which is the business and economy center with easy transportation.Our international airport name is Zhengzhou Xinzheng International Airport.
