• Model NO.：YZ1
• Travel Speed：1.7km,H
• Centrifugal Force：19.6kn
• Certification：CE, ISO 9001:2000
• Condition：New
• Operating Weight：1000kg
• Rolling Width：820mm
• Grade Ability：20%
• Vibration Frequency：50Hz
• Transport Package：Container or Nude Package
• Specification：1960*1060*2000mm
• Trademark：SINOHENG
• Origin：China
• HS Code：84294019
• Production Capacity：1000units,Month

Basic Info.

Model NO. YZ1 Travel Speed 1.7km/H Centrifugal Force 19.6kn Certification CE, ISO 9001:2000 Condition New Operating Weight 1000kg Rolling Width 820mm Grade Ability 20% Vibration Frequency 50Hz Transport Package Container or Nude Package Specification 1960*1060*2000mm Trademark SINOHENG Origin China HS Code 84294019 Production Capacity 1000units/Month

Product Description

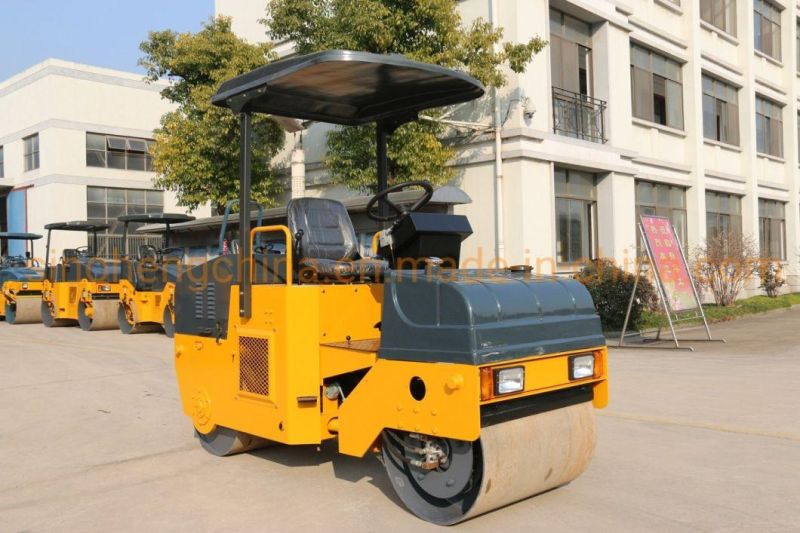

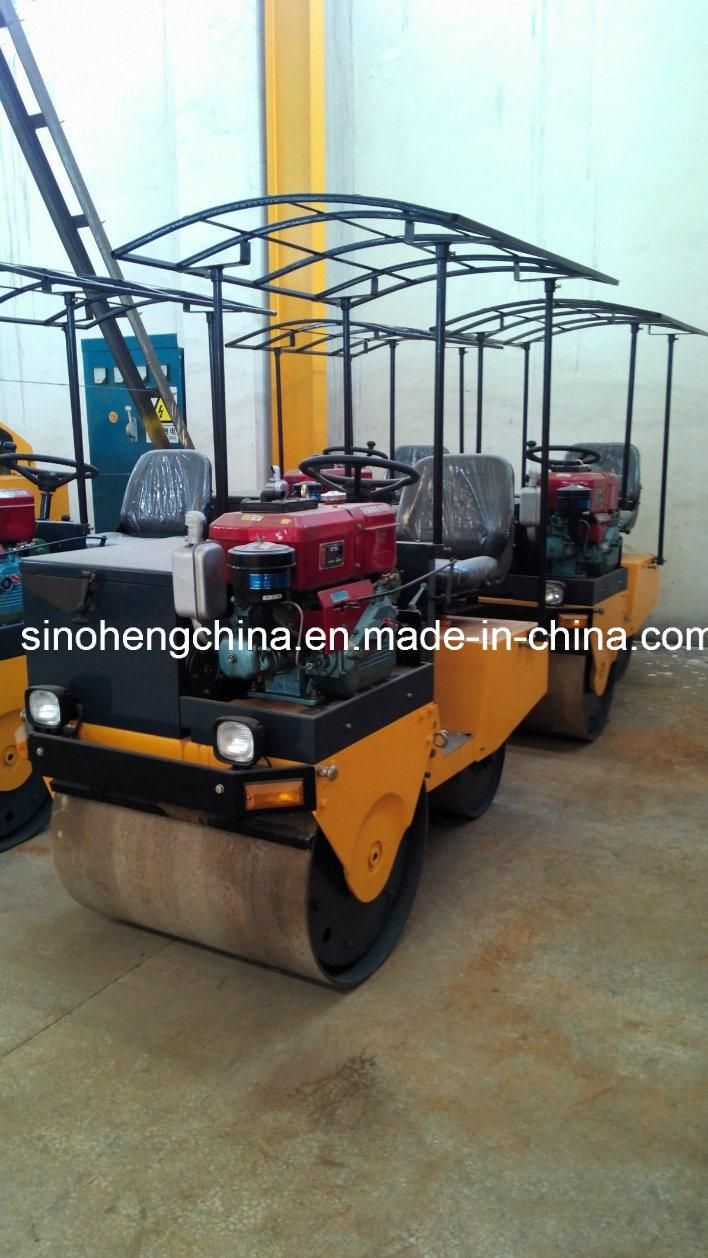

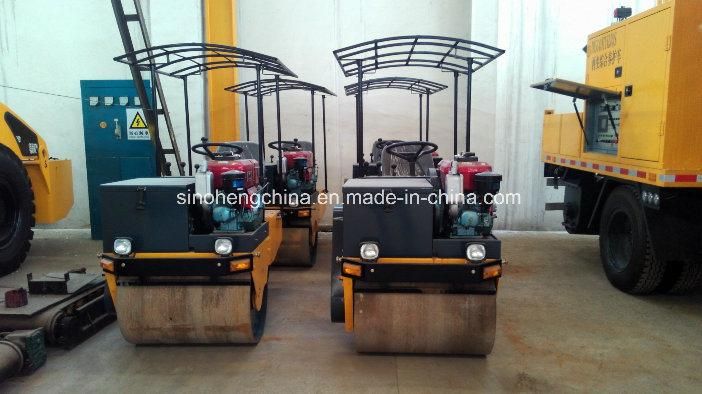

1000kg Mini Vibratory Road Roller Compactor 1 ton YZ1Application

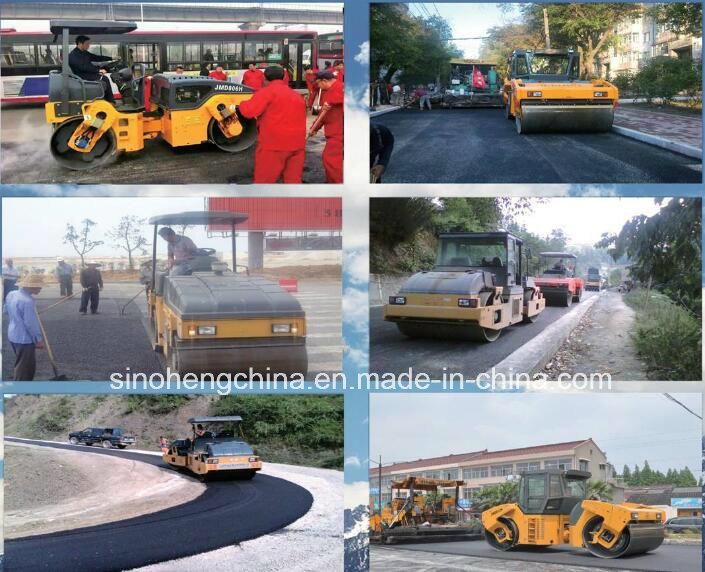

Road, trenches, country and township roads and parking ground etc. This roller is suitable for compacting and repairing the asphalt pavement and road base.
Main features

1. Mechanical drive, Mechanical vibration, High reliability
2. Vertical vibration with great centrifugal force and high efficiency
3. Compact design with short turning radius ensure rolling compaction into narrow ground
4. A trailer is provided for transportation, more conveniently and energy saving.
5. The domestic or imported engines are optional(diesel engine or gasoline engine)

Technical Data

Operating weight	1000	kg	Theoretical amplitude of vibration	0.7	mm
Diameter of vibrating drum	φ650	mm	Moving speed gear I	1.7	km/h
Rolling width	820	mm	Moving speed gear II	3.5
Static Linear Pressure	83	N/cm	Grade ability	20%
Centrifugal force	19.6	KN	Diesel engine: model  Rated rotation speed Engine power Rated power	Changchai R185  2200  6.47	r/min  kw
Vibration frequency	50	Hz	overall dimensions       L W H	1960×1060×2000	mm
