• Model NO.：912
• Bucket Capacity：0.4m3
• Rated Power：32HP
• Rated Speed：2200 R,Min (Rpm)
• Bucket Width：1300mm
• Max. Breakout Force：20kn
• Operating Weight：2440kg
• Overall Dimensions：4880mm*1600mm*2700mm
• Load and Unload Method：Front Discharge
• Engine Power：<74kw
• Transport Package：Container
• Specification：CE, ISO9001: 2000
• Trademark：SINOHENG
• Origin：China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. 912 Bucket Capacity 0.4m3 Rated Power 32HP Rated Speed 2200 R/Min (Rpm) Bucket Width 1300mm Max. Breakout Force 20kn Operating Weight 2440kg Overall Dimensions 4880mm*1600mm*2700mm Load and Unload Method Front Discharge Engine Power <74kw Transport Package Container Specification CE, ISO9001: 2000 Trademark SINOHENG Origin China Production Capacity 500PCS/Month

Product Description

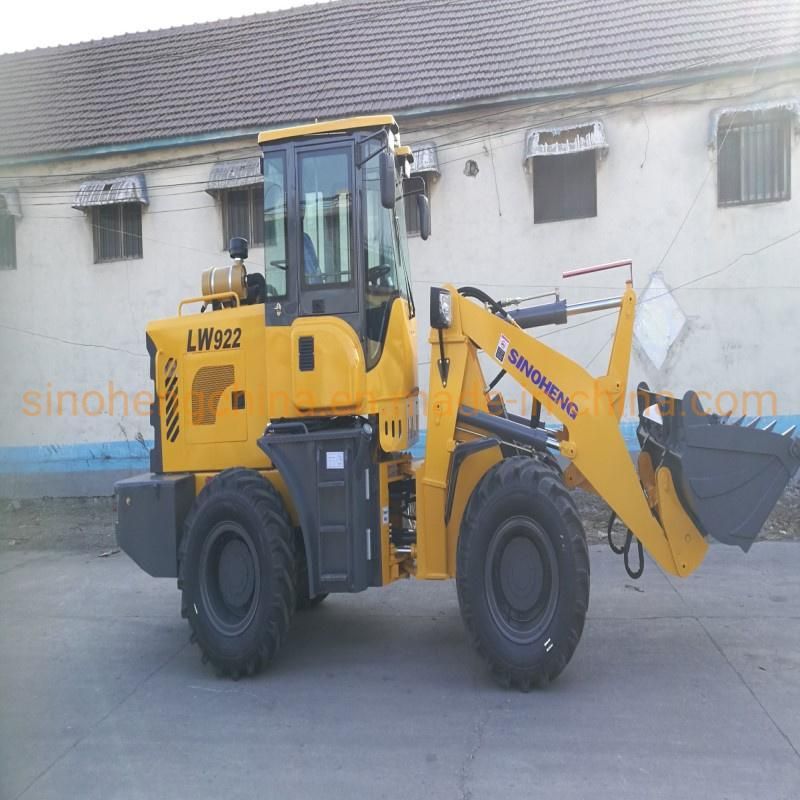

32HP/1.5 ton/0.4m3/Hydraulic small wheel Loader, Mini Hydraulic Loader.
This Mini wheel loader is a new Mini wheel loader. Mini wheel loader loader have small size, flexible operation, perfect for the small environment, construction operations.
Mini wheel loader is a widely used in highway, railway, water, construction, ports, mines and other construction projects of earthwork construction machinery, Mini wheel loader is mainly used for loading and unloading of soil, sand, lime, coal and other bulk materials, but also on the ore, hard soil, etc. For mild shovel digging operations. Dress different ancillary work but also for earthmoving equipment, lifting and other materials, such as timber handling operations. On the road, especially in highway construction, small loaders for excavation and filling roadbed engineering, asphalt and cement concrete aggregates stockyard and loading and other operations. But can also be pushing soil, scraping the ground and traction other machinery and other operations. Because small loader with operating speed, high efficiency, good mobility, easy operation, etc., so it becomes earthwork construction engineering construction is one of the main models.

Rated load	1200KG
Bucket Capacity	0.6CBM
Dump Height	2800mm
Dump distance	900mm
Wheel Base	2300mm
Wheel Tread	1500mm
Ground clearance	250mm
Machine weight	3500kg
LxWxH	5200*1850*2680mm
Model	YUNNEI 490 37KW
Type	In-line arrangement, water cooling, four strokes
Rated Power	37KW
Rated Speed	2200RPM
Torque converter model	YJ265
Type	Single phase, single stage, Radial in-ward turbine triplex
Gear box tyoe	Fixed- Spindle power shift
Electric Gear shift	2 gears ahead, 2 gears back
Type	Articulated hydraulic steering
Max. turning angle	35 degree
Service braking	Oil brake
Parking braking	Drum BRAKE  ISUZU
Standard tire	20.5/-16

1.0 Engine Details
(1) Model: 2JD32 (JIANG DONG)
(2) Engine type: In-line arrangement, water-cooled, two-cycles diesel Engine
(3) Rated Power: 32HP
(4) Rated Speed: 2200 r/min (rpm)
2.0 Steering System
(1) Cycloid full hydraulic steering system: BZZ-200
(2) System Pressure: 16MPa
(3) Steering Cylinder: Φ 75XΦ 63X280

3.0 Bucket
(1) Bucket Capacity: 0.4m3
(2) Bucket width: 1300mm
(3) Max. Breakout Force: 20KN
(4) Rated Load: 1500kg
(5) Operating Weight: 2440kg
4.0 Overall Dimensions

(1) Overall Length (Bucket on ground position): 4880mm
(2) Overall Height
(a) Ground to Cab Top: 2700mm
(b) Ground to exhaust pipe: It is below from the top of cabin
(3) Overall Width: 1600mm
5.0 Operating Specifications
(1) Drive Means: Four-wheel drive
(2) Min Turning Radius: 42000mm
(3) Driving System: Mechanical
(4) Dumping Height: 2700mm
(5) Dumping Reach at max height: 700mm
(6) Min the ground distance: 300mm
(7) Time of raise: 3.05sec.
(8) Hydraulic cycle time: 12.5second.
(9)Steering System: Articulated Frame with hydraulic power steering.
6.0 Brake System
(1) Service Brake: Four Wheel Hydraulic spread-shoed brake

7.0 Tyre
(1) Model: 8.25-16 (2) Width: 20cm (3) Diameter: 80cm
8.0 Wheelbase: 2080mm
9.0 Track: 1320mm
Transmission: Shaft

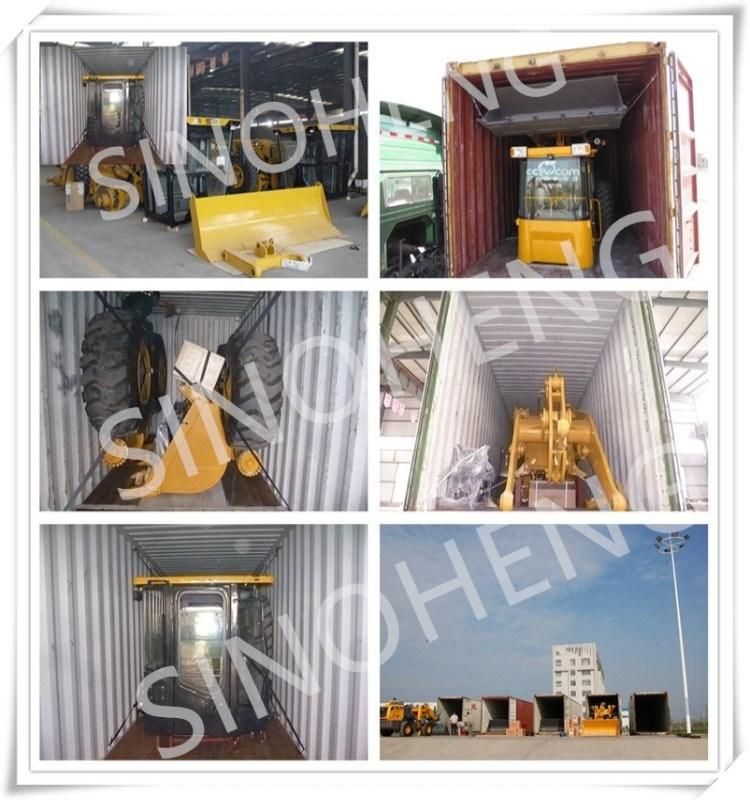

Shipment: 3units shipped in 1X40HC
