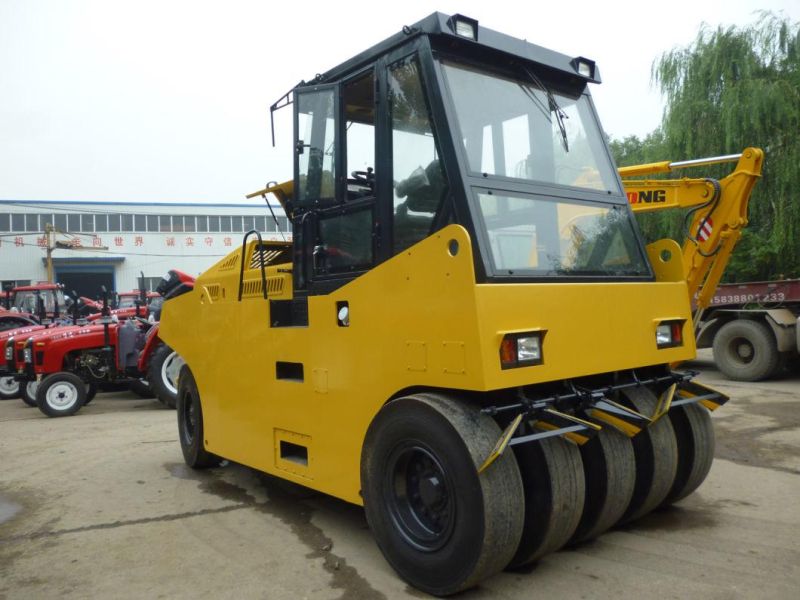

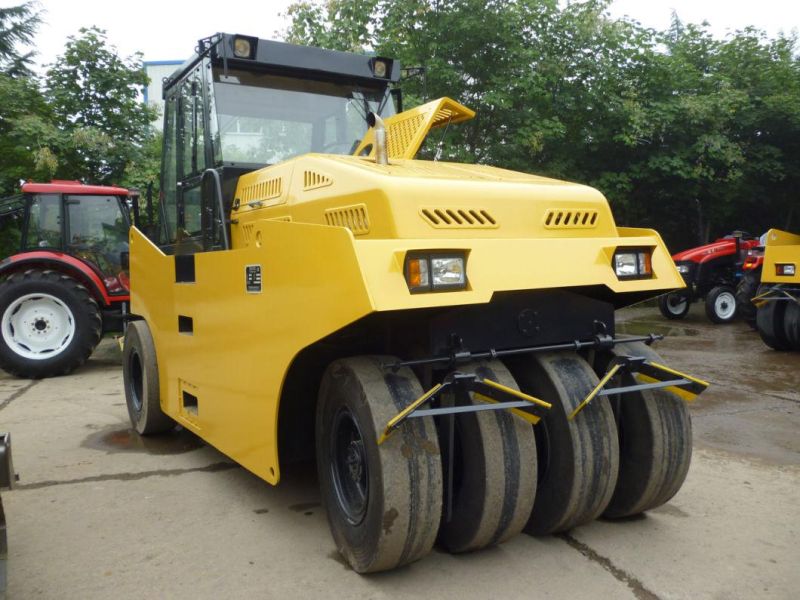

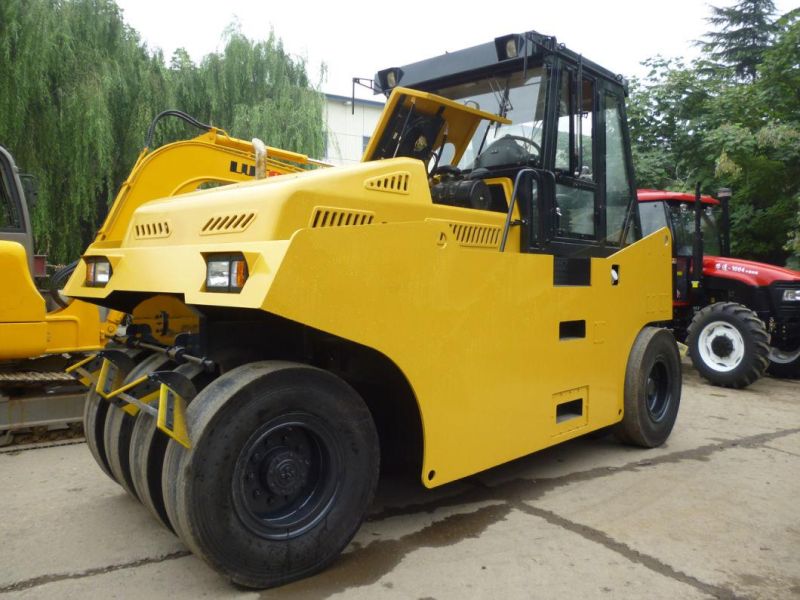

Lutong Roller Ltp1016 10 Tons Pneumatic Tyre Road Roller with Mechanical Control
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Type：Road Roller
- Working Method：Wheeled
- Grinding Wheel Type：Tire Grind
- Compaction Depth：40cm
- Engine Type：Diesel Engine
- Travel Speed：40cm,s
Base Info
- Model NO.：LTP1016
- Certification：ISO 9001:2000
- Condition：New
- Operating Mass (Kg)：10000kg
- with Ballast：16000kg
- Max. Travel Speed：14.7km,H
- Tyre Quantity(Front+Rear)：4+5
- Grade Ability：30%
- Min.Turning Radium：7500mm
- Compaction Width：2280mm
- Wheelbase：3700mm
- Diesel Power：75
- Diesel Model：4bt3.9
- Transport Package：Nude Packing
- Specification：4780*2100*3200
- Origin：Jiangsu, China
- HS Code：84294019
- Production Capacity：1000,PCS
Description
MAIN TECHNICAL PARAMETERS: MODEL LTP1016 LTP1016H LTP1826 LTP1826H LTP2030 LTP2030H Operating mass Without ballast kg 10000 10000 18000 18000 20000 20000 With ballast kg 16000 16000 26000 26000 30000 30000 Max. travel speed Km/h 14.7 14 20.64 10 20.64 10 Tyre quantity(front+rear) pcs 4+5 4+5 5+6 5+6 5+6 5+6 Grade ability % 30 30 30 30 30 30 Min.turning radium mm 7500 7500 8000 8000 8000 8000 Compaction width mm 2280 2280 2790 2790 2790 2790 Wheelbase mm 3700 3700 3800 3800 3800 3800 Overall length mm 4780 4780 4950 4950 4950 4950 Overall width mm 2100 2100 2750 2750 2750 2750 Overall height mm 3200 3200 3240 3240 3240 3240 Diesel power KW 75 75 125 125 125 125 Diesel model 4BT3.9 4BT3.9 6BTA5.9 6BTA5.9 6BTA5.9 6BTA5.9
