14ton Shantui Static Road Rollers Sr14 Single Drum Rollers Soil Compactor
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service:Video Technical Support
- Warranty:1 Year Warranty
- Type:Road Roller
- Working Method:Vibration
- Axle:Biaxial Dual-Drum
- Grinding Wheel Type:Sheep Foot Roller
Base Info
- Model NO.:SR14
- Compaction Depth:40cm
- Engine Type:Diesel Engine
- Travel Speed:40cm,s
- Centrifugal Force:40KN
- Certification:CE, ISO 9001:2000, ISO 9001:2008
- Condition:New
- Operating Weight:14000(Kg)
- Exciting Force:310,200(Kn)
- Vibration Frequency:30,35 (Hz)
- Gradeability:45(%)
- Engine Model:Weichai
- Rated Power/Rated Speed:105kw,2200rpm
- Forward Speed:F1: 0-5.5, F2: 0-10(Km,H)
- Reversing Speed:R1: 0-5.5, R2: 0-10(Km,H)
- Fuel Tank:240(L)
- Compacting Width:2130(mm)
- Transport Package:Nube, Roro, Container
- Specification:6140*2280*3100mm
- Trademark:Shantui
- Origin:Shandong, China
- HS Code:8429401100
- Production Capacity:500
Description
Basic Info.
Model NO. SR14 Compaction Depth 40cm Engine Type Diesel Engine Travel Speed 40cm/s Centrifugal Force 40KN Certification CE, ISO 9001:2000, ISO 9001:2008 Condition New Operating Weight 14000(Kg) Exciting Force 310/200(Kn) Vibration Frequency 30/35 (Hz) Gradeability 45(%) Engine Model Weichai Rated Power/Rated Speed 105kw/2200rpm Forward Speed F1: 0-5.5, F2: 0-10(Km/H) Reversing Speed R1: 0-5.5, R2: 0-10(Km/H) Fuel Tank 240(L) Compacting Width 2130(mm) Transport Package Nube, Roro, Container Specification 6140*2280*3100mm Trademark Shantui Origin Shandong, China HS Code 8429401100 Production Capacity 500Product Description
14ton Shantui Static Road Rollers SR14 Single Drum Rollers CompactorProduct description
Engine
Equipped with high quality Cummins engine, stronger power with less fuel consumption
Hydraulic systemSauer driving and vibrating system brings stability and reliability.
Hydraulic dual - wheel drive, infinitely variable, hydraulic steering, easy to operate
Double frequency and double amplitude vibration, makes sure the excellent effectiveness of compaction
Fully hydraulic transmission and Fully electrical-hydraulic control facilitates the operation and enhances the automation;
The walking is driven by hydraulic motor, single handle, infinitely variable speed, easy to operate;
Full hydraulic articulated steering makes it flexible;
Automatic cut off the braking power system to ensure the safety and reliability of the machine
Beautiful-shape
The overall shape is beautiful with the streamline design, and the console have a good view.
SpecificationParameter name | SR14 |
Performance parameters | |
Operating weight (Kg) | 14000 |
Exciting force (KN) | 310/200 |
Vibration frequency (Hz) | 30/35 |
Nominal amplitude (mm) | 1.65/0.70 |
Gradeability (%) | 45 |
Engine | |
Engine model | Weichai WP6G140E22 |
Rated power/rated speed (kW/rpm) | 105kw/2200rpm |
Overall dimensions | |
Overall dimensions of machine (mm) | 6140*2280*3100 |
Driving performance | |
Forward speed (km/h) | F1: 0-5.5, F2: 0-10 |
Reversing speed (km/h) | R1: 0-5.5, R2: 0-10 |
Chassis System | |
Wheelbase (mm) | 3100 |
Tank capacity | |
Fuel tank (L) | 240 |
Working device | |
Compacting width(mm) | 2130 |
CASES

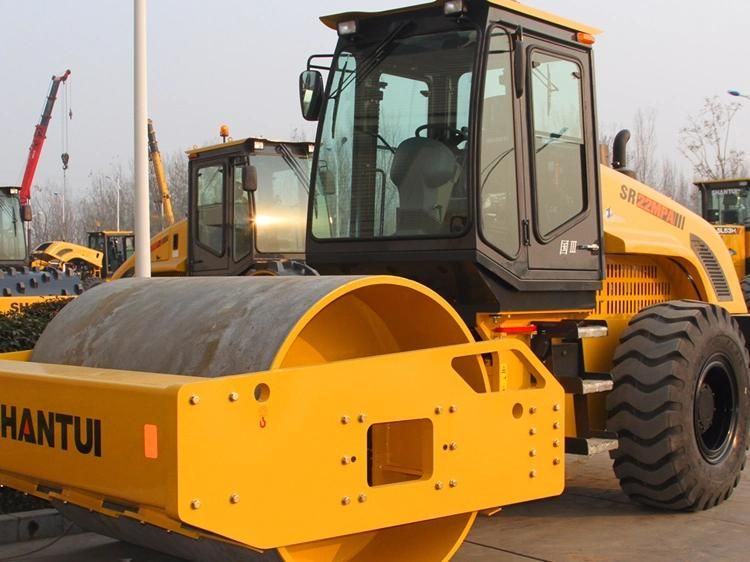

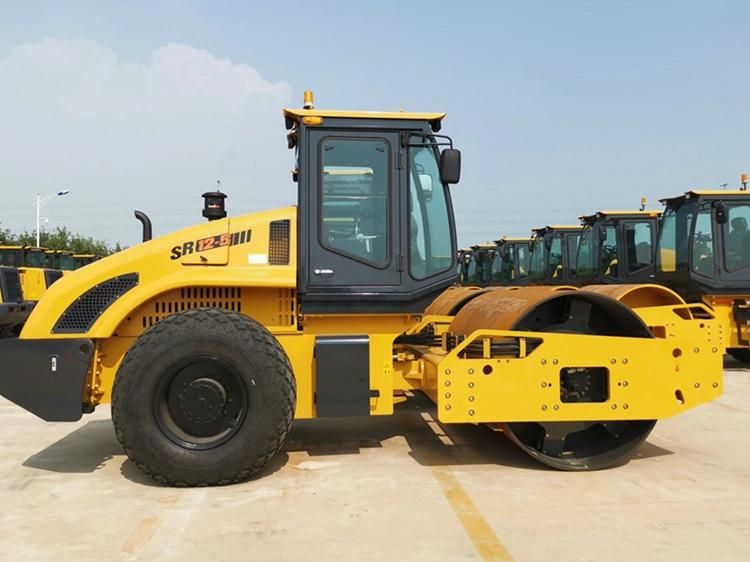

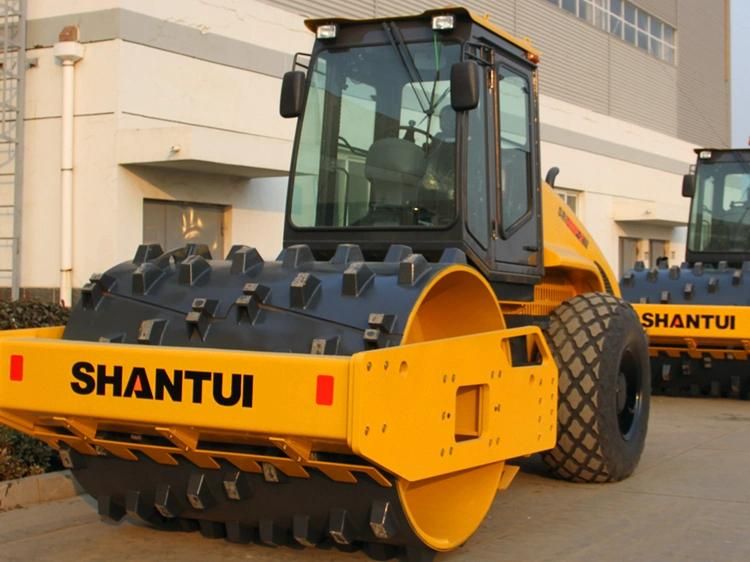

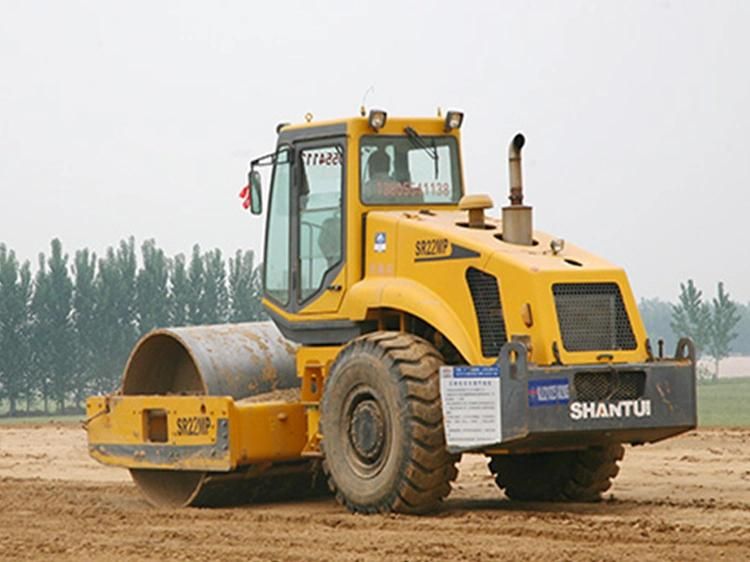

Product photos
