• Model NO.：SR26M-3
• Certification：ISO 9001:2008
• Condition：New
• Operating Weight：26000kg
• Exciting Force：435,315kn
• Vibration Frequency：29,35Hz
• Engine：Weichai
• Transport Package：40hq
• Specification：26000kg
• Trademark：SHANTUI
• Origin：Shandong, China
• HS Code：8429401100
• Production Capacity：10000 Units, Year

Basic Info.

Model NO. SR26M-3 Certification ISO 9001:2008 Condition New Operating Weight 26000kg Exciting Force 435/315kn Vibration Frequency 29/35Hz Engine Weichai Transport Package 40hq Specification 26000kg Trademark SHANTUI Origin Shandong, China HS Code 8429401100 Production Capacity 10000 Units/ Year

Product Description

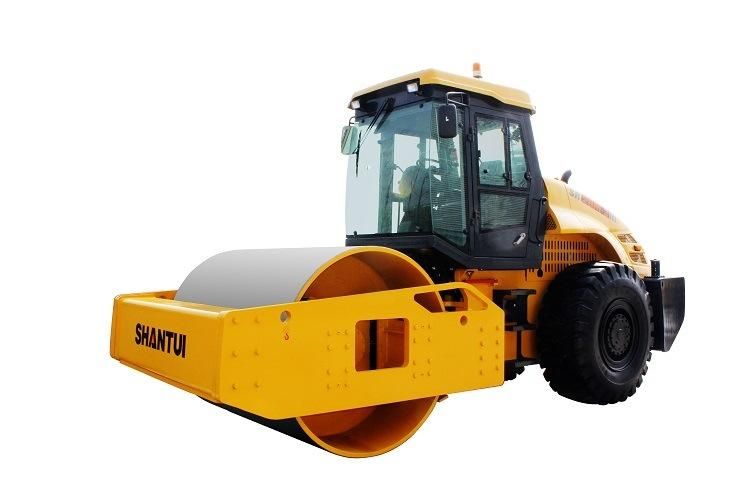

Single-Drum Road Roller SR26M-3 SHANTUI
SINGLE-DRUM ROAD ROLLER: SR26M-3
OVERALL WEIGHT: 26000
ENGINE POWER: With 140kW/1800rpm, this engine conforms to China-III emission regulation.
COMPACTING WIDTH: 2170mm

High operating comfort
* The machine adopts three-stage shock-absorbing and proprietary sealing mechanisms to achieve low vibration and low noise.
* The instrument panel, seat, and control box of the cab are arranged ergonomically to achieve high operating comfort.
* The hydraulic drive and two-speed stepless speed regulation guarantee simple operations.

Working performance
* Weichai WP6 engine features good fuel economy, powerful parts universality, and low repair costs.
* The large-area suction type radiator effectively prolongs the lives of engine and hydraulic parts.
* The bearings for Shantui's proprietary steel drum are independently lubricated to achieve long life.

High maintenance convenience
*The fuel filter element and hydraulic filter element are arranged on the same side of machine body to ease the repairs and maintenances;
* The routine maintenances can be fulfilled after the opening of hood with cold start preheater.
* The drainage water from water tank and the drainage oil from oil sump are directed to the rear side of machine to ease the maintenances.
* The intelligent combination instrument with automatic malfunction detection function incorporates the all-weather and all-round malfunction diagnosis and warning system.

Operating cost
* The proprietary match technology can achieve high operating efficiency and reasonable fuel economy and reduce the composite fuel consumption by 8%~10%.
* The core electric and hydraulic parts of imported brands guarantee high quality and reliability and reduce the malfunction downtime.
* High value maintenance.


Parameter name	SR26M-3 (Standard version)
Performance parameters
Operating weight (Kg)	26000
Exciting force (KN)	435/315
Vibration frequency (Hz)	29/35
Nominal amplitude (mm)	-
Ground pressure (KPa)	-
Gradeability (%)	-
Engine
Engine model	WP6
Rated power/rated speed (kW/rpm)	140/1800
Overall dimensions
Overall dimensions of machine (mm)	6442*2432*3314
Driving performance
Forward speed (km/h)	2.8/5.5/9.0
Reversing speed (km/h)	2.8/5.5/9.0
Chassis System
Wheelbase (mm)	-
Tank capacity
Fuel tank (L)	375
Working device
Compacting width(mm)	2170
