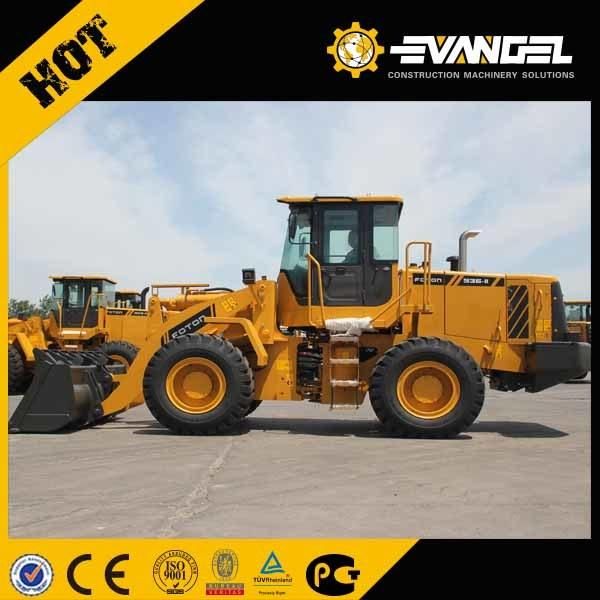

• Model NO.：FL956
• Type：Small Loader
• Bucket Capacity：3m3
• Transport Package：40hq
• Trademark：foton
• Origin：China
• HS Code：8430411900
• Production Capacity：100units,Month

Rated Load (kg)5000Operating Weight (standard configuration)(kg)17100Rated Bucket Capacity (m³)3Maximum Digging Force (KN)185Maximum Traction (KN)160Total Cycling Time (s)10.6Maximum Dumping Height (mm)3180Maximum Dumping Distance (mm)1160Forward Speed Range (km/h)0~38.4Backward Speed Range (km/h)0~24.2Transportation Clearance (length*width*height)(mm)7960*2970*3450Maximum Steering Angle (°)37Maximum Climbing Capacity (°)30Minimum Turning Radius (mm)6770Tyre Specification23.5-25-16PREngine ParameterModelWeichai WD10G220E23Type6-cylinder, in-line, direct injection and turbochargedPower (kw)162Maximum Torque (N.m)930Cylinder Diameter (mm)126Distance of Travel (mm)130Output Volume (L)9.756Fuel Oil Consumption (g/kw.h)220Hydaulic SystemPressure of Working System (Mpa)20Type of Motor Braking SystemSingle pipeline gas-oil 4-wheel clipper disc brakingType of Parking/Emergency Braking SystemDrum brakingFuel Tank CapacityFuel Oil Tank Capacity (L)280Hydraulic Fuel Tank Capacity (L)210
