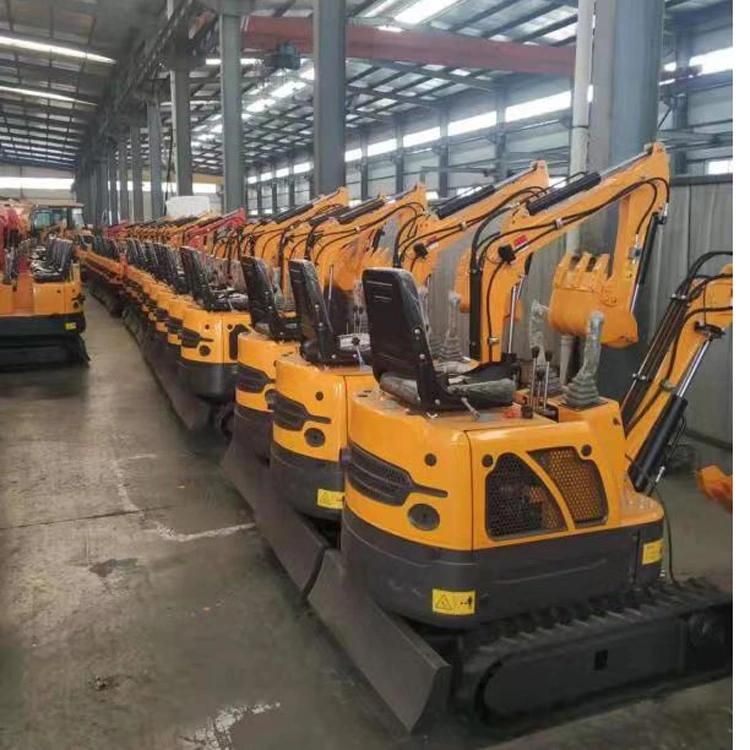

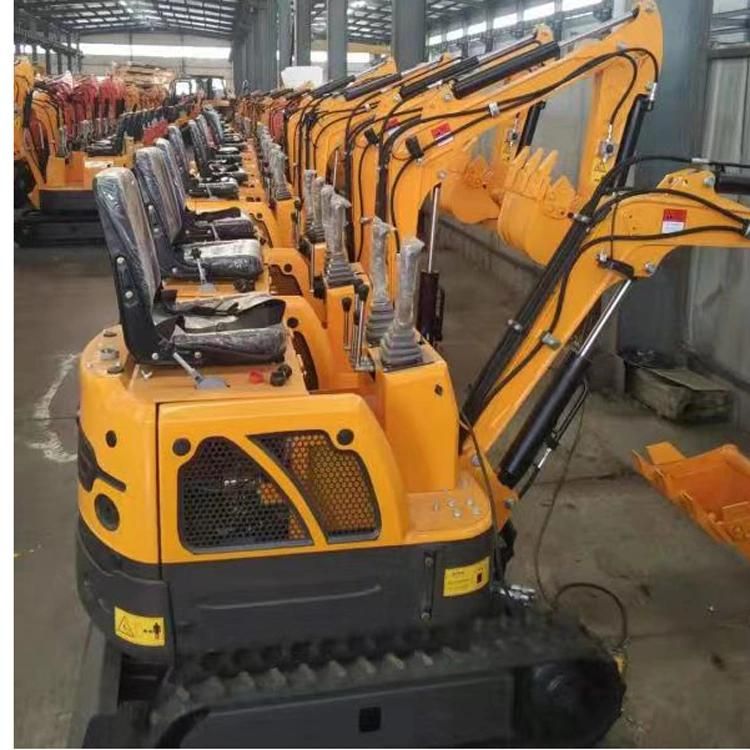

Xn20 2ton Excavator Rhinoceros
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.1~0.5m³
Base Info
- Model NO.：XN20
- Size：Small-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Product Name：Xn20 2ton Excavator Rhinoceros
- Operating Weight：2000kg
- Digging Bucket Capacity：0.05cbm,500kg
- Engine：3tnv70-S
- Max. Digging Depth：2150 mm
- Max. Digging Height：3275 mm
- Max. Dumping Height：2310 mm
- Max. Digging Radius on Ground：3610mm
- Max. Digging Depth of Bulldozer Blade：180mm
- Transport Package：Nude Package
- Specification：3400x1040x2350mm
- Trademark：RHINOCEROS
- Origin：China
- HS Code：8429521200
- Production Capacity：1000pieces,Year
Description
Model
XN20
Operating Weight
2000kg
Digging bucket capacity
0.05cbm/500kg
Digging bucket width
420mm, can add narrow bucket is 200mm
Engine
Yanmar (3TNV70-S)
Rated power
10kw/2200/r/min
Displacement
0.854L
Bore stroke
three cylinder, water cool
Main pump
JAPAN NAICH
Pump flow
23.3L/Min
Hydraulic oil tank capacity
15.3L
Engine oil tank capacity
2.8(1.3)L
Diesel tank capacity
19 L
Valve
JAPAN KYB
Displacement
6.8ml/r
Swing motor
EATON
Traveling motor
EATON
MAIN DEMENSIONS
Overall dimension( LxWxH)
3400x1040x2350mm
Total length of track on land 1590mm
Platform ground clearance
473 mm
Platform back turning radius
740 mm
Chassis width
990 mm(retract)/ 1240mm(extended)
Track width
230 mm
Chassis ground clearance
460 mm
Bucket digging force
13.5kn
Arm digging force
10.1kn
Theoretical Maximum traction
17.5Kn
Ground specific pressure
32.8KPA
Boom length
1780mm
Arm length
925mm
Track height
360 mm
Swing boom to left
390 mm
Swing boom to right
510 mm
OPERATING RANGE
Max. Digging depth
2150 mm
Max. Vertical digging depth 1740 mm
Max. Digging height
3275 mm
Max. Dumping height
2310 mm
Max. Digging radius on ground
3610 mm
Min. Rotation radius
1580 mm
Max. Upgrade height of bulldozer blade
275 mm
Max. Digging depth of bulldozer blade
180 mm
