• Model NO.：320*52.5*98
• Link：98
• Weight：177.38kg
• Color：Black
• Delivery：15-20 Days
• Warranty：12 Months Under Normal Use
• Export Markets：Global
• Material：Rubber and Steel
• Transport Package：Bare Packing or Wooden Pallets
• Specification：320*52.5*98
• Trademark：PY
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：5000 Per Month

Basic Info.

Model NO. 320*52.5*98 Link 98 Weight 177.38kg Color Black Delivery 15-20 Days Warranty 12 Months Under Normal Use Export Markets Global Material Rubber and Steel Transport Package Bare Packing or Wooden Pallets Specification 320*52.5*98 Trademark PY Origin Shanghai, China HS Code 8431499900 Production Capacity 5000 Per Month

Product Description

Rubber Track 320*52.5*98 for Excavator Crawler 350/JT2720ALL/JT30/JT3020

Rubber track 320*52.5*98
Specifications of rubber track
1). Continuous rubber track
2). Conventional type or interchangeable type rubber track
3). Warranty: Guarantee one year under normal use
4). Conventional and interchangeable type
5). OEM orders of complete track systems are welcome
6). Comprehensive range of standard rubber crawler track systems are available
7). Undercarriages and bases are available for a wide range of machinery
8). Application: Mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler carrier vehicle, agriculture machinery, paver and other special machine
9). Warranty: 12 months
10). Certification: ISO9001: 2000

  Product Advantage:

 Continuous rubber track

Conventional type or interchangeable type rubber track

Warranty: guarantee one year under normal use



Application: Mini-Excavator, Bulldozer, Dumper, Crawler Loader, Crawler Crane, Crawler Carrier Vehicle, Agriculture Machinery, Paver and other special machine



Rubber Track we can supply such as KUBOTA, MOROOKA, YANMAR, TAKEUCHI, BOBCAT, CAT, KOMATSU, KOBELCO, SUMITOMO, DOOSAN, DAEWOO, FIAT, IHI, HITACHI, HYUNDAI, KATO, JCB, JOHN DEERE, YUCHAI, VOLVO, TEREX...

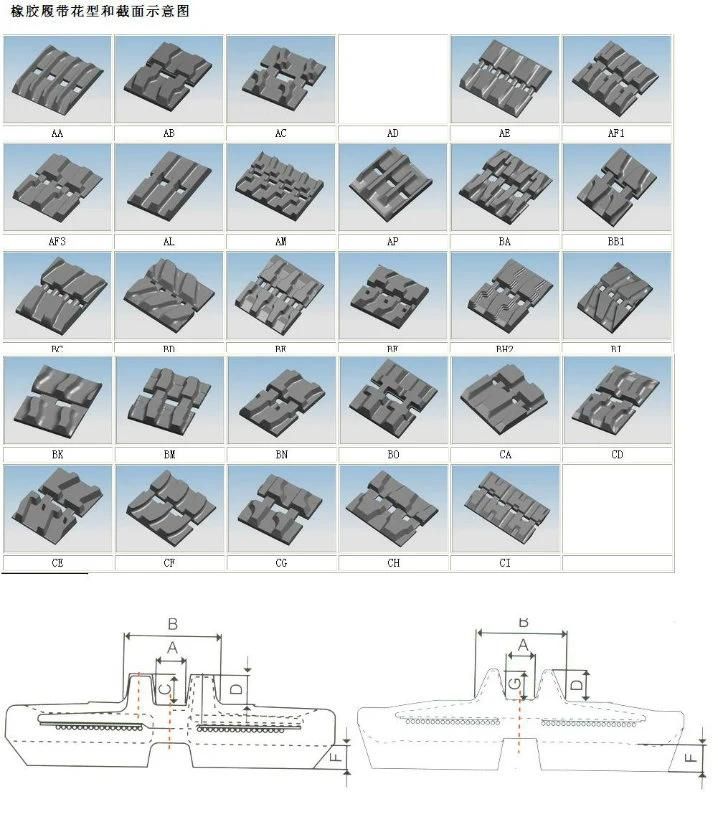

Product Picture:

1. Installation of the Rubber Tracks
A. Too small strength: Easily causes jumping teeth, riding a tooth or steering failure of the guide wheels and supporting wheels and leads to track derailment or escapes.
B. Too large strength: Track wire will be deformed at the elongation by the excessive strain tensile, which will make the pitch changed, and track core iron and the drive wheels abnormally worn, also will make teeth touched and the track broken, the machine power loss larger, track wear exacerbated, belt crack easier as well as the track life shorter. After the track is strained, the maximum sag distance is 10-15mm, just as the pitch below.
2. Attention
In order to extend the life of rubber tracks, please complete the following work:
A. Never turn urgently on the concrete floor, gravel road, or hard and sharp road, in order to avoid speeding up the wearing, twisting and chapping of the rubber track.
B. Try not to work in the rotten field, to avoid rubber track skid and wear.
C. When the stones or other objects come into the crawler and chassis, stop immediately, and clear gravels or obstacles.
3. Warns
A. Do not travel on the road full of footstone, spinous-stone, scrap iron and other objects.
B. Do not drive in the rivers, streams and on the seacast or any rugged road.
C. Do not make the track unilaterial landing.
D. Forbid aggressive driving.
E. Avoid making a turn rapidly, please slow down and make a turn gradually.Contact person:Ginny

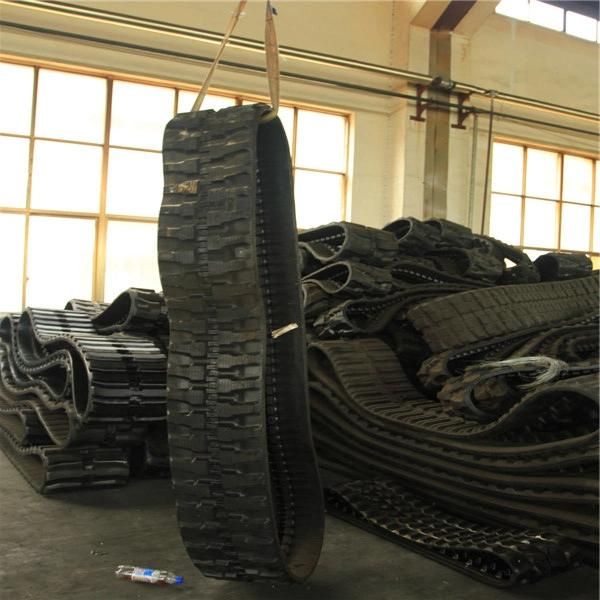

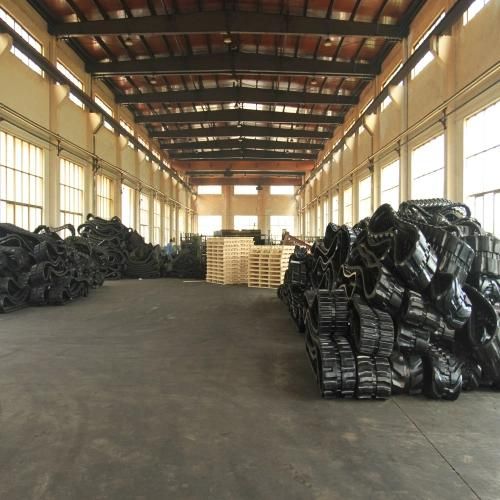

    Photos of rubber track and factory

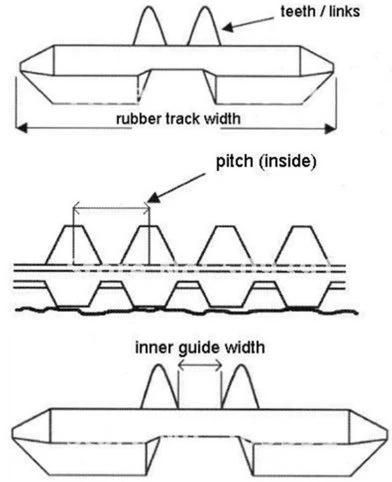

Parameters:

Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80
300*52.5N	72-98	Y400*72.5K	72-74
300*52.5W	72-92	KB400*72.5K	68-76
