Agriculture Machinery Front End Loader for Wheeled Tractors
Weifang Taihong Tractor Co., Ltd.- Type：Universal Type
- Transmission：Hydraulic Transmission
- Walking Mode：Wheeled
- Load and Unload Method：Front Discharge
- Engine Power：74~147kw
- Certification：CE, ISO9001: 2000
Base Info
- Model NO.：TZ-16
- Condition：New
- Color：Red
- Tractor Horsepower：140-220HP
- Bucket Capacity：1.45 Cbm
- Max. Dump Height：4100mm
- Max. Dump Distance(mm)：1400mm
- Transport Package：Metal Frame or Assembled in Fractor
- Specification：5850× 2100× 3600mm
- Trademark：Taihong
- Origin：China
- HS Code：8430699000
- Production Capacity：1000 PCS
Description
Main specification of TZ series tractor front end loaderModel NO. TZ-3 TZ-4 TZ-8 TZ-10 TZ-12 TZ-16 Overall dimensions (mm) 4100×1600×1580 4100×1600×1580 4900×1739×2494 4900×1739×2494 5350×1800×3000 5850×2100×3600 Power (HP) 20~30 30~45 50~70 80~90 100~125 140-160 Max. dump height(mm) 1800 2000 2200 2400 2800 4100 Max. dump distance(mm) 900 900 960 1000 1100 1400 Bucket rollback angle 42° 42° 42° 42° 42° 42° Max. unloading angle 47° 47° 46° 46° 46° 46° Max. scraping depth(mm) 100 140 160 160 160 160 Lifting time to pivot pin(S) 7 7 8 8 10 12 Descending time(S) 3.5 3.5 4 4 10 12 Bucket capacity(m3) 0.2 0.23 0.43 0.6 0.65 1.45

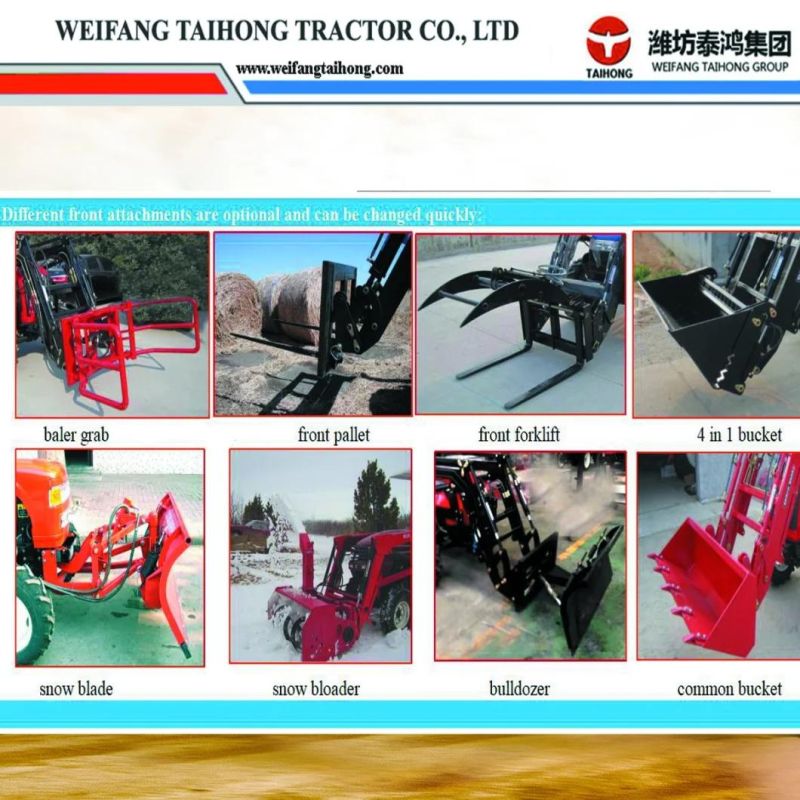

2. Other Parts to be exchanged on loader arms: baler grab, front pallet, front forklift, 4 in 1 bucket, snow blade
snow blower, bulldozer etc

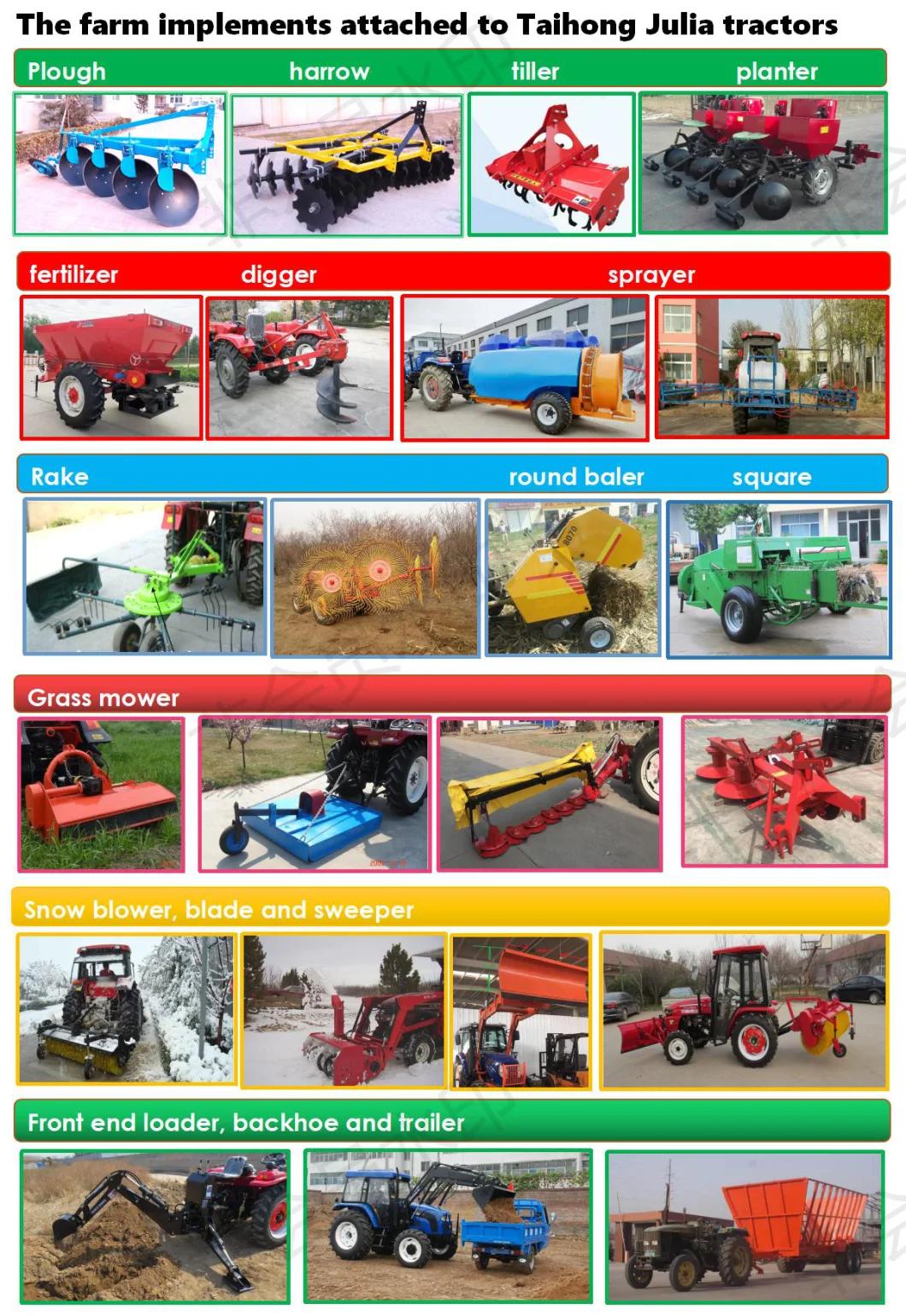

3. The farm implements to be attached to Taihong tractors from 25-260hp: disc harrow, disc plough, rotary tiller,planter, fertilizer, sprayer, trailer, digger,rake, baler, mower,sweeper, backhoe etc.
4.Company Profile:
Weifang Taihong Tractor Co.,Ltd established in 1990, with coverage of 206677 square meters, is one of the most professional tractor manufacturer in China. With 20 years development, Taihong is capable of producing tractor from 25hp to 240hp and has a large market share at home and abroad. Taihong has its own foundry, casting, machinery processing center. Some parts are made by itself to realize the whole quality control from spare parts.
The products are certified by ISO9001, SGS, CCC and BV.
5. Contact:Weifang Taihong Tractor Co., LtdWeifang Boxu International Trade Co.,LtdAddress: West Baotong Street, Weifang City, Shandong Province, China. wftaihong.en.made-in-china.comhttps://wftaihong.en.made-in-china.com
