Puyi Rubber Tracks for Dich Witch Jt 3020 Drill 300*52.5n*98
Shanghai Puyi Industrial Co., Ltd.- Type:Crawler
- Application:Excavator
- Certification:ISO9001: 2000
- Condition:New
- Place of Origin:Shanghai, China (Mainland)
- Width:300mm
Base Info
- Model NO.:300*52.5N*98
- Pitch Length:52.5mm
- Link:98
- Length:5145mm
- Weight:142kg
- Material:Rubber and Steel
- Delivery:20 Days After Payment
- Warranty:12 Months Under Normal Use
- Uasge:Dich Witch Jt3020 Well Drill
- Transport Package:Bare Packing or Wooden Pallets
- Specification:300*52.5N*98
- Trademark:PY
- Origin:Shanghai, China
- HS Code:8431499900
- Production Capacity:5000PCS,Month
Description
Basic Info.
Model NO. 300*52.5N*98 Pitch Length 52.5mm Link 98 Length 5145mm Weight 142kg Material Rubber and Steel Delivery 20 Days After Payment Warranty 12 Months Under Normal Use Uasge Dich Witch Jt3020 Well Drill Transport Package Bare Packing or Wooden Pallets Specification 300*52.5N*98 Trademark PY Origin Shanghai, China HS Code 8431499900 Production Capacity 5000PCS/MonthProduct Description
Rubber Track Model: 300mm*52.5Nmm*98 which can be used in Dich Witch Jt 3020 Drill machinesWidth: 300mm
Pitch Length: 52.5mm
Links and Length can be customized
1. Installation of the Rubber Tracks
A. Too small strength: Easily causes jumping teeth, riding a tooth or steering failure of the guide wheels and supporting wheels and leads to track derailment or escapes.
B. Too large strength: Track wire will be deformed at the elongation by the excessive strain tensile, which will make the pitch changed, and track core iron and the drive wheels abnormally worn, also will make teeth touched and the track broken, the machine power loss larger, track wear exacerbated, belt crack easier as well as the track life shorter. After the track is strained, the maximum sag distance is 10-15mm, just as the pitch below.
2. Attention
In order to extend the life of rubber tracks, please complete the following work:
A. Never turn urgently on the concrete floor, gravel road, or hard and sharp road, in order to avoid speeding up the wearing, twisting and chapping of the rubber track.
B. Try not to work in the rotten field, to avoid rubber track skid and wear.
C. When the stones or other objects come into the crawler and chassis, stop immediately, and clear gravels or obstacles.
3. Warns
A. Do not travel on the road full of footstone, spinous-stone, scrap iron and other objects.
B. Do not drive in the rivers, streams and on the seacast or any rugged road.
C. Do not make the track unilaterial landing.
D. Forbid aggressive driving.
E. Avoid making a turn rapidly, please slow down and make a turn gradually.

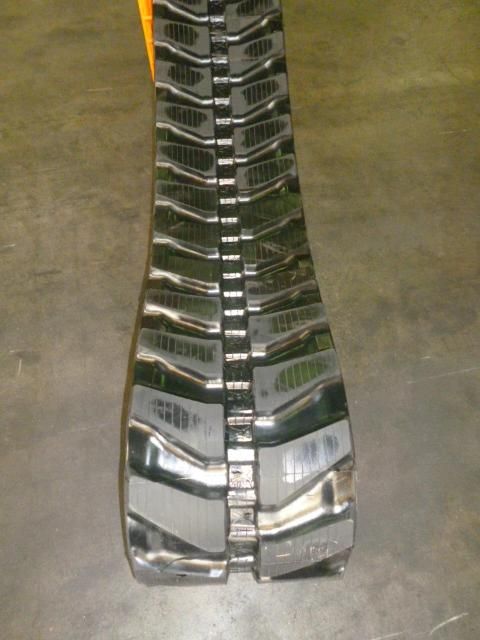

Product Photos:

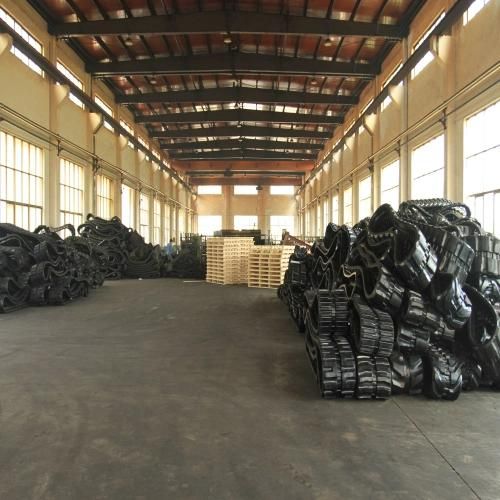

About Us:
Our plant mainly produce Rubber Track which are specially good use for these kind of Machine:
Snowbower/Snowmobile, Robot, Wheelchair, (mini)Excavators, Track loaders, Pitch Paver, Agricultural
Harvester, Dumpers...Etc.
Parameter :
Width*Pitch length(mm) | Number of Links | Width*Pitch length(mm) | Number of Links | Width*Pitch length(mm) | Number of Links |
130*72 | 28-53 | 300*52.5K | 72-84 | 400*72.5KW | 68-92 |
150*60 | 28-49 | 300*52.5KW | 72-92 | 400*74 | 68-76 |
150*72 | 29-40 | KB300*52.5 | 72-92 | 400*75.5K | 74 |
170*60 | 30-40 | KB300*52.5N | 72-98 | B400*86 | 52-55 |
180*60 | 30-40 | JD300*52.5N | 72-98 | 400*90 | 42-56 |
180*72 | 30-58 | 300*53K | 80-84 | Y400*142 | 36-37 |
180*72K | 30-37 | 300*55 | 70-86 | 400*144 | 36-41 |
B180*72K | 34-51 | 300*55.5K | 76-82 | Y400*144K | 36-41 |
B180*72A | 30-51 | 300*71K | 72-55 | 420*100 | 50-58 |
H180*72 | 30-50 | 300*109N | 25-42 | 450*71 | 76-88 |
190*60 | 30-40 | K300*109 | 37-41 | DW450*71 | 76-88 |
190*72 | 34-39 | 300*109WK | 35-42 | 450*73.5 | 76-84 |
200*72 | 34-47 | B300*84 | 78-52 | 450*76 | 80-84 |
200-*72K | 37-47 | T300*86K | 48-52 | 450*81N | 72-80 |
230*48 | 60-84 | 320*52.5 | 72-98 | 450*81W | 72-78 |
230*48K | 60-84 | B320*52.5 | 68-98 | KB450*81.5 | 72-80 |
230*72 | 42-56 | 320*54 | 70-84 | K450*83.5 | 72-74 |
230*72K | 42-56 | B320*86 | 49-52 | B450*84 | 53-56 |
230*96 | 30-48 | 320*90 | 52-56 | B450*86 | 52-55 |
230*101 | 30-36 | 320*100 | 38-54 | 450*90 | 58-76 |
250*47K | 84 | 320*100W | 37-65 | KU450*90 | 58-76 |
250*48.5K | 80-88 | Y320*106K | 39-43 | T450*100K | 48-65 |
250*52.5K | 72-78 | 350*52.5 | 70-92 | K450*163 | 38 |
250*72 | 47-57 | 350*54.5K | 80-86 | 485*92W | 74 |
B250*72 | 34-60 | B350*55K | 77-98 | 500*90 | 76-82 |
B250*72B | 42-58 | 350*56 | 80-86 | 500-92 | 72-84 |
E250*72 | 37-58 | 350*75.5K | 74 | 500*92W | 78-84 |
250*96 | 35-38 | 350*90 | 42-56 | 500*100 | 71 |
250*109 | 35-38 | 350*100 | 46-60 | K500*146 | 35 |
260*55.5K | 74-80 | 350*108 | 40-46 | 600*100 | 76-80 |
Y260*96 | 38-41 | 350*109 | 41-44 | 600*125 | 56-64 |
260*109 | 35-39 | Y370*107K | 39-41 | 700*100 | 80-98 |
280*72 | 45-64 | 400*72.5N | 70-80 | 750*150 | 66 |
Y280*106K | 35-42 | 400*72.5W | 68-92 | 800*125 | 80 |
300*52.5N | 72-98 | Y400*72.5K | 72-74 | ||
300*52.5W | 72-92 | KB400*72.5K | 68-76 |
