• Model NO.：CX-118
• Place of Origin：Shanghai;China
• Brand：Py
• Material：Rubber&Steel
• Model Number：Cx-118
• Size：Width118*Pitch61*Link18
• Color：Black
• Length：1098mm
• Moving Type：Crawler Machinery
• Transport Package：Pallet or Bare Packaging
• Specification：118*61*18
• Trademark：can be customized
• Origin：Shanghai; China
• HS Code：843149900
• Production Capacity：20 Pieces Per Month

Basic Info.

Model NO. CX-118 Place of Origin Shanghai;China Brand Py Material Rubber&Steel Model Number Cx-118 Size Width118*Pitch61*Link18 Color Black Length 1098mm Moving Type Crawler Machinery Transport Package Pallet or Bare Packaging Specification 118*61*18 Trademark can be customized Origin Shanghai; China HS Code 843149900 Production Capacity 20 Pieces Per Month

Product Description

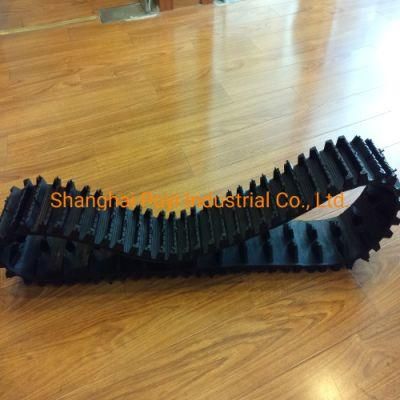

Supply Small Agricultural/Robotic Rubber Track CX-118

1.Product Description

(1). Less round damage
 Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.

(2). Low noise
 A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.

(3). High speed
 Rubber track permit machines to travel at a higher speed than steel tracks.

(4). Less vibration
 Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.

(5). Low ground pressure
 The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ CMM, a major reason for its use on the wet and soft terrain.

(6). Superior traction
 The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.




2. The feature of rubber track

1). Less damage to the ground surface

2). Low noise

3). High running speed

4). Less vibration;

5). Low ground contack specific pressure

6). High tractive force

7). Light weight

8). Easy to change

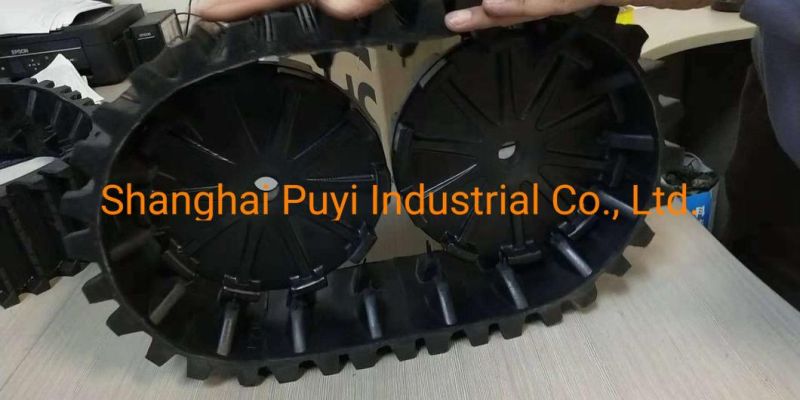

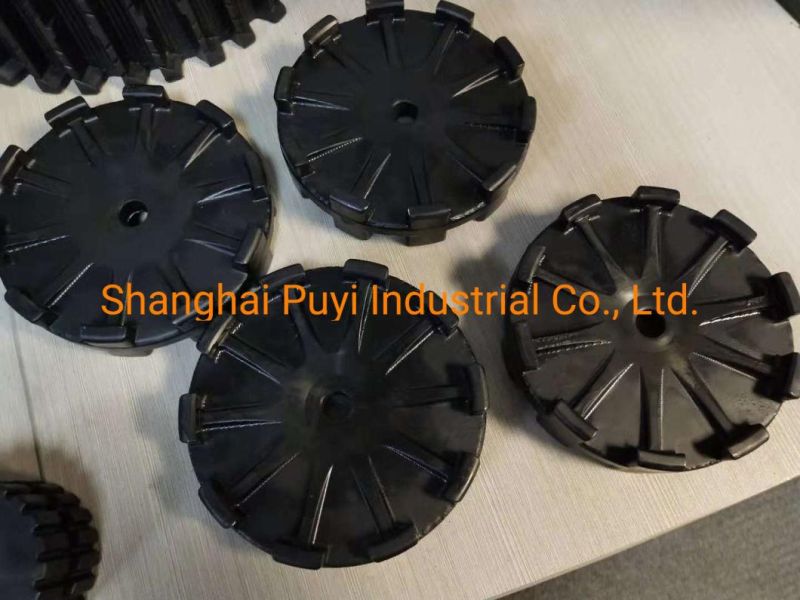

About Matching Sprockets&Supporting Wheels:




More Specifications:

Model	Size	Weight(kg)/Link	Model	Size	Weight(kg)/Link	Model	Size	Weight(kg)/Link
HS-32	32*12.7	0.0031	HL-105	105*42	0.0572	LM-200	200*50	0.7065
BK-B	40*9.3	0.0084	CX-118	118*61	0.1625	YT-200	200*52.5	0.3935
HL-40	40*44	0.0268	QD-118	118*60	0.122	SQ-A	220*53.5	0.2062
PY-40	45*31.75	0.0172	SJ-120	120*61	0.1477	JH-220	220*85	0.9
PY-40	40*31.3	0.0163	RN-120	120*60	0.125	JA-220	220*50.3	0.4
LG-48	48*10	0.0042	WG-123	123*38	0.0703	DY-250	250*50.3	0.3507
DG-50	50*22.225	0.03	GF-A	125*19	0.0243	LP-250	250*50.3	0.523
GF-B	50*19	0.0093	DN-A	130*18.5	0.0289	CQ-255	255*72	0.4758
GMD-B	50*20	0.0109	WJ-130	130*40	0.1088	FP-250	250*80	0.4897
HGD-52	52*58	0.0474	TH-136	136*45	0.0868	WD-255	255*73	0.4549
JTDX-60	60*15	0.012	WGJ-130	130*65	0.4348	SQ-B	255*72	0.45
XL-60	60*13.9	0.59	HBC-140	140*30	0.0334	CF-280	280*60	1.9
LWM-60	60*22.225	0.023	SL-140	140*80	0.2778	LEVE-280	280*87	0.4839
JQ-B	60*12.7	0.0182	JT-140	140*20	0.0332	KD-320	320*87	2.1607
BF-B	60*15	0.0073	PW-148	148*60	0.2804	QATV-320	320*87	0.4688
BK-A	60*13.01	0.0178	ZY-148	148*60	0.4445	WD-320	320*72
DN-B	60*18.5	0.0088	XF-A	150*59	0.2051	TG-320	320*87	0.9412
JT-60	60*20	0.0125	NG-150	150*65	0.3095	TJ-360A	360*91	0.8285
JQ-A	76*12.7	0.0158	SF-150	150*72	0.3781	NY-380	380*65	0.7854
BF-A	80*15	0.0112	XF-B	150*59	0.2178	YQZG-400	400*73
HL-80	80*44	0.055	LEVE-160	160*60	0.8065	QATV-400	400*87	1.25
SMX-70	70*40	0.0636	YSD-165	165*64.5	0.3612	TK-560	560*105	3
CHJ-80	80*40.2	0.0817	WJ-165	165*65.5	0.2989	DNS-580	580*60.5	0.675
TH-85	85*59.4	0.08	WHKD-170	170*64	0.2419	XLG-620	620*100
THG-85	85*59.4	0.1072	LEVE-180	180*65	0.3571	BV206	620*90.6	3.125
GMD-A	100*20	0.0242	YN-180	180*72	0.4729	WZY-800	800*90.6
BD-B	100*40	0.0454	HC-200	200*60.2	0.3	KCM-500	500*110	2.9836
BD-A	100*40	0.08	HS-200	200*72	0.75
