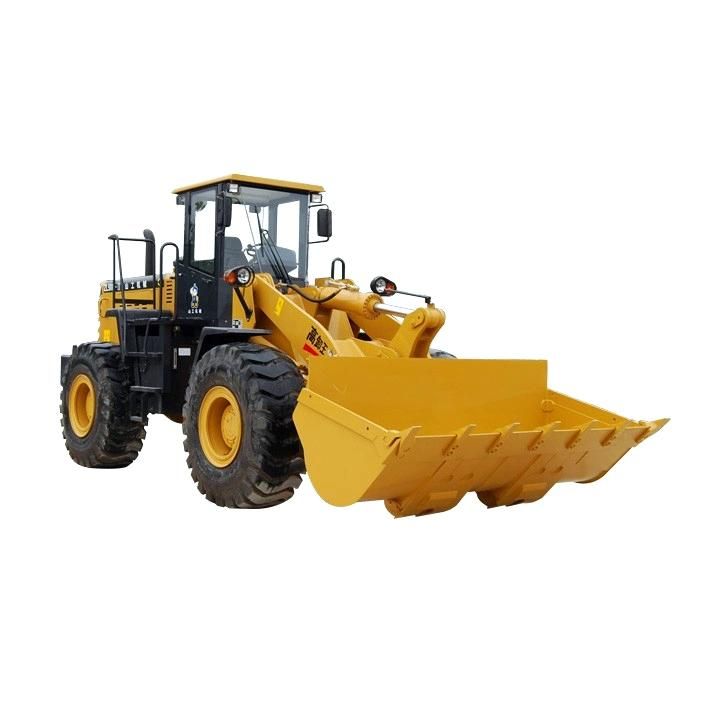

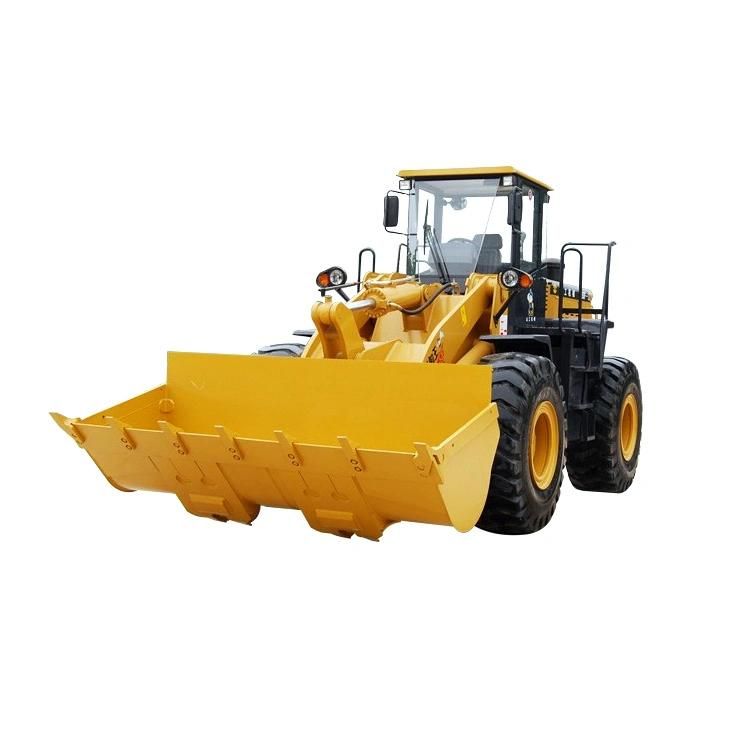

Sem Sem653D Front 5ton Bucket 3.0cbm Bucket 5 Ton Wheel Loader

Acntruck Automobile Sales (Shanghai) Co., Ltd.
  • Certification：ISO
  • Condition：New
  • Rated Load：3-6t
  • Transmission：Hydraulic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：SEM653D
  • Type：Medium-sized Loader
  • Bucket Capacity：3m3
  • Rated Power：154kw
  • Load Capacity：5t
  • Machine Weight：17300kg
  • Transport Package：Nude Package
  • Specification：8225× 3016× 3515mm
  • Trademark：Oriemac
  • Origin：China
  • HS Code：8429510000
  • Production Capacity：100units Per Month

Description

SPECIFICATIONS FOR SEM656 D WHEEL LOADERRated Load(kg)5000Operating Weight(kg)16800Bucket Capacity(m³)2.7-4.5Wheelbase(mm)3300Overall Dimensions (mm)(L*W*H)8279*2963*3456Turning Radius(mm)6813Max. Breakout Force(KN)178Max. Tractive  Force(KN)168

TransmissionmodelTR200Transmission typefixed shaft power shift transmissiongear shiftF4/R4torque converter typeunipolar three element centripetal
Drive axleMain  drive typesingle screw speed reducerwheel reduction typeprimary planetary reducerswing angle(°)±11

Diesel enginemodelWP10G220E343rated power(KW)162rated speed(r/min)2000displacement(L)9.7

Hydraulic systemtypeQuantitative/variable double pump converging/diverter hydraulic systemboom lift time(s)5.1Hydraulic cycle time (Total)(s)9.3working pressure(MPa)18
brake system Service BrakeAir assisted oil disc type four wheel brakeParking Brake internal expansion

tireModel23.5-25typelow pressure wide base diagonal tirelayer16pattern typeL3
