Shantui 170HP Crawler Bulldozer Dh17-C2 with Best Price
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：Special Type
- Transmission：Power Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
Base Info
- Model NO.：DH17-C2
- Engine Power：>515kw
- Certification：CE
- Condition：New
- Color：Yellow
- Operating Weight(Kg)：18000kg
- Transport Package：Cartons
- Specification：17TON
- Trademark：shantui
- Origin：China
- HS Code：8429521200
- Production Capacity：500000
Description
Basic Info.
Model NO. DH17-C2 Engine Power >515kw Certification CE Condition New Color Yellow Operating Weight(Kg) 18000kg Transport Package Cartons Specification 17TON Trademark shantui Origin China HS Code 8429521200 Production Capacity 500000Product Description

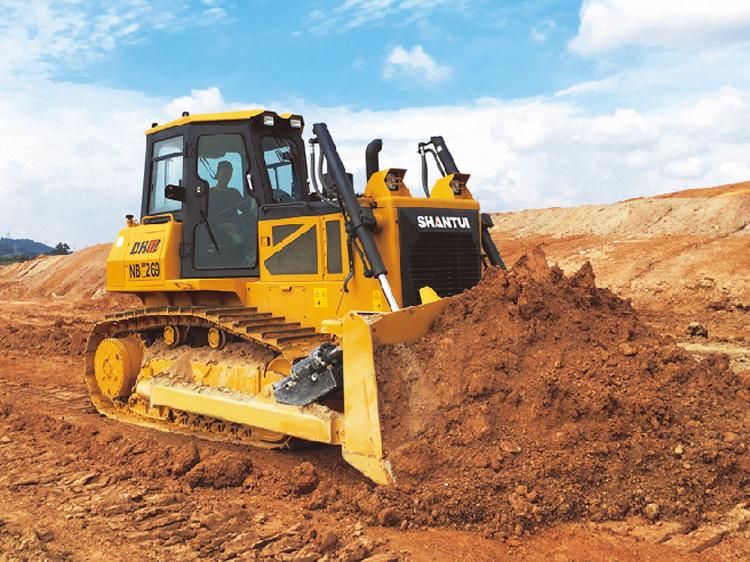

Shantui 170HP Bulldozer Dh17-C2 with Best Price
Product Description
The high reliability power shift transmission and the two-stage final drive with spur gear reducing structure and splash lubrication feature high durability and high operating efficiency.
The closed system is adopted to maintain the water tank pressure at specific value and the forced air supply can enhance the cooling effect.
The harnesses of whole machine are protected by seamless corrugated tubes to improve the reliability of electric harnesses.
The integrally injection molded instrument panel integrates the A/C, electric devices, and instrument box, featuring beautiful appearance and high grade.
The optimized working lamp arrangement improves the lighting performance of vehicle.
The reversing alarm and the working warning lamp are added to provide the safety warnings during working.
The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame.
| Net power/rated speed(KW/h) | 127/170@ 2000 |
| Operating weight(kg) | 18000 |
| Ground pressure(kpa) | 64 |
| Ground length(mm) | 2675 |
| Overall length(mm) | 5250 |
| Overall width(mm) | 3420 |
| Overall height(mm) | 3080 |
| Forward | 0~10 |
| Reverse | 0~10 |
| Gradeability(degree) | 30 |
| Ground clearance(mm) | 370 |
| Blade type | Angle blade |
| Blade width(mm) | 3400 |
| Blade height(mm) | 1200 |
| Working capacity(m3) | 4.4 |
| Maximum lifting height(mm) | 1010 |
| Maximum digging depth(mm) | 520 |
| Ripper type | Three- tooth ripper |
| Maximum inclination(mm) | 460 |
| Digging depth(mm) | 475 |
| Lifting height(mm) | 570 |
| Track gauge(mm) | 1880 |
| Width of track shoes(mm) | 510 |
| Track pitch(mm) | 213 |
| Number of track rollers(one-sided) | 7 |
| Fuel tank(L) | 320 |
| Working hydraulic oil tank(L) | 85 |
| Travelling hydraulic oil tank(L) | 65 |
