• Model NO.：Dh13-k2
• Engine Power：74~147kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Operating Weight (Kg)：14200kg,31306lb (with Traction Frame)
• Transport Package：Roro
• Specification：5010*3380*3110mm
• Trademark：shantui
• Origin：China
• HS Code：8429191000
• Production Capacity：500,Month

Basic Info.

Model NO. Dh13-k2 Engine Power 74~147kw Certification CE, ISO9001: 2000 Condition New Color Yellow Operating Weight (Kg) 14200kg/31306lb (with Traction Frame) Transport Package Roro Specification 5010*3380*3110mm Trademark shantui Origin China HS Code 8429191000 Production Capacity 500/Month

Product Description

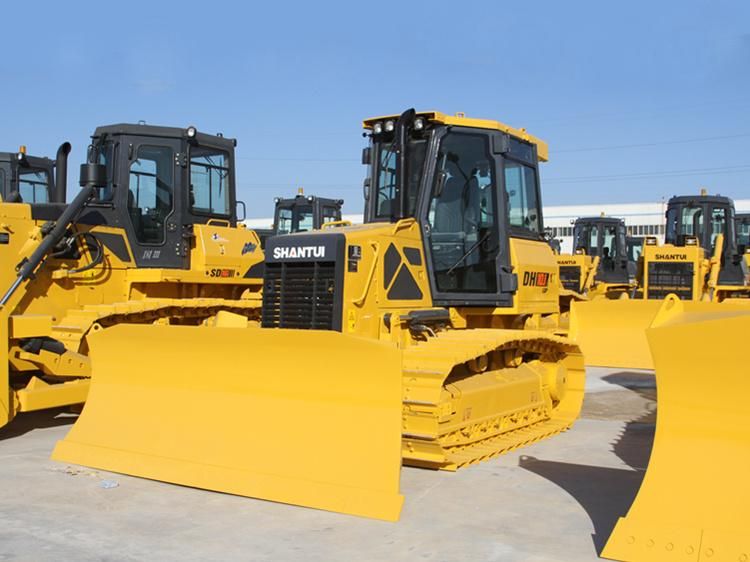

Shantui Hydrostatic Crawler Bulldozer Dh13-k2 130Hp Dozer With Euro Iv Emission cheap price for sale





Product Description

 Power System

The installed N67 electronic control engine conforms to the EPA Tier4final/EU Stage IV emission regulation, featuring stronger power and higher energy-saving and environmental-friendliness. The after-treatment system adopts FPT's unique HI-eSCR technology, requiring no external EGR. The 600h oil maintenance interval reduces the maintenance costs.

The Shantui's innovative hydrostatic drive optimization technology is applied to achieve higher efficiency and energy-saving. The multiple operating modes are at the user's choice depending on the load of actual working condition to realize the reasonable match among power, efficiency, and energy consumption.

Standard mode - It can provide strong power performance and excellent operating control performance for the operator.

Power mode - It can provide stronger power performance to meet your higher needs for heavy-load condition.

Economic mode - Under medium-load/light-load condition, it can run the engine at relatively low speed to thus remarkably reduce the fuel consumption. Meanwhile, in event of power need, it can quickly increase the speed to save the fuel by 5%~20%. The specific condition depends on the application condition.

The air suction type temperature controlled fan incorporates the reverse self-cleaning function, featuring high efficiency and energy-saving.

Control system

The double-module (Function and safety) controller architecture verifies with each other to achieve higher safety and reliability.

The multiple functions, including multiple steering modes, hydraulic oil low temperature control, automatic low idling, fan reversing, and seat safety switch, are provided to achieve higher intelligence, higher efficiency, and higher safety of the machine.

The malfunction self-diagnosis function is provided to accurately indicate the malfunction cause and orientation and shorten the downtime.

The service software with distinct access hierarchy features high simpleness and practicability and easy learning and understanding.

The GPS automatic leveling systems, including Trimble, Topcon, Leica, and Moba, can be installed to meet the user needs under precision leveling condition and improve the efficiency.


Operating performance

 The traveling is operated by single electronic control joystick and the working device is operated by single pilot joystick, featuring flexible, handy, and comfortable operations.

Easy maintenances

The structural parts inherit the excellent quality of Shantui's mature products.

The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.

The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.

The modular structure design of the machine features easy disassembling and assembling, simple repairs, low failure rate, and easy maintenances.

Parameter name	DH13-K2 XL (Extended version)	DH13-K2 LGP(Super-wetland version)
Performance parameters
Operating weight (Kg)	14200kg/31306lb (With traction frame)	14800kg/32628lb (With traction frame)
Ground pressure (kPa)	48	36.9
Engine
Engine model	N67	N67
Rated power/rated speed (kW/rpm)	118/2200	118/2200
Overall dimensions
Overall dimensions of machine (mm)	5010*3380*3110	5010*3680*3110
Driving performance
Forward speed (km/h)	0~10km/h(6.2mph)	0~10km/h(6.2mph)
Reversing speed (km/h)	0~10km/h(6.2mph)	0~10km/h(6.2mph)
Chassis System
Center distance of track (mm)	1930	2150
Width of track shoes (mm)	560	760
Ground length(mm)	2640	2640
Tank capacity
Fuel tank (L)	263	263
Working device
Blade type	Angle Blade	Angle Blade
Digging depth (mm)	460	460
Ripper type	Three-tooth ripper	Three-tooth ripper
Ripping depth (mm)	500	500
