• Model NO.：Xs202
• Certification：ISO9001: 2000, CE
• Condition：New
• Export Markets：Global
• Operation Weight：20000kg
• Transport Package：Seaworthy Packing
• Specification：CE,ISO
• Origin：Jiangsu, China
• HS Code：84294019
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. Xs202 Certification ISO9001: 2000, CE Condition New Export Markets Global Operation Weight 20000kg Transport Package Seaworthy Packing Specification CE/ISO Origin Jiangsu, China HS Code 84294019 Production Capacity 100 PCS/Month

Product Description

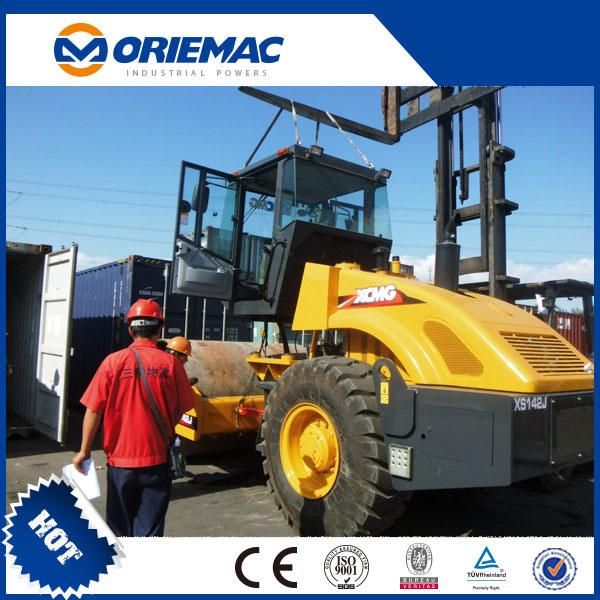

20 Ton Xs202 Vibratory Single Drum Roller Compactor


Product Description
Features
Comfortable driving
ROPS driving cab is equipped with an air conditioner, radio and suspended chair. It has a bigger space and broad view inside.
Unique structure
Unique cylindrical drum structure features high rigidity and intensity.
Easy operation
According to the ergonomics theory, all meters, indicators and buttons are centered on the operation panel. The throttle handle and FWD/REV handle are put on the right side to improve the sense of comfort.
The failure diagnosis screen with alarms can avoid any unnecessary downtime.
The simple and easy lubrication mode ensures an extremely low failure rate of the lubricating system.
is the first manufacturer to adopt the central engine for effortless maintenance.
Leading compacting performance
The unique hydraulic driving system design and heavy vibratory wheel weight make the roller highly advanced in compaction ability.
Heavy loaded drive axle and nonskid differential mechanism can furthest transfer the output power as well as the tractive force of engines.
Outstanding configuration
The key components are provided by international suppliers (hydraulic pump, motor, drive axle, vibratory bearing and rotating alarm lamp), it also has several engine models for selection to meet different working conditions and customer's needs.
Multiple functions
The split convex block drum (below 16t) and integral convex block drum (18-20t) can be selected according to the customer's requirement.

Type	Unit	XS202
Operating weight	kg	20000
Load on front drum	kg	13500
Load on rear wheels	kg	6500
Drum width	mm	2130
Static linear load	N/cm	621
Vibration frequency(Low/High)	Hz	28/33
Nominal amplitude(High/Low)	mm	1.86/0.93
Excitation force(High/Low)	KN	370/255
Travel speed	km/h	0~10
Steering angle	°	±33
Swing angle	°	±10
Theoretical gradeability	%	50
Min. turning radius	mm	6500
Engine model		Cummins B5.9
Engine power	kw	132
Rated engine speed	r/min	2200
Engine oil consumption	g/kW.h	232
Hydraulic oil tank capacity	L	240
Fuel tank capacity	L	240
