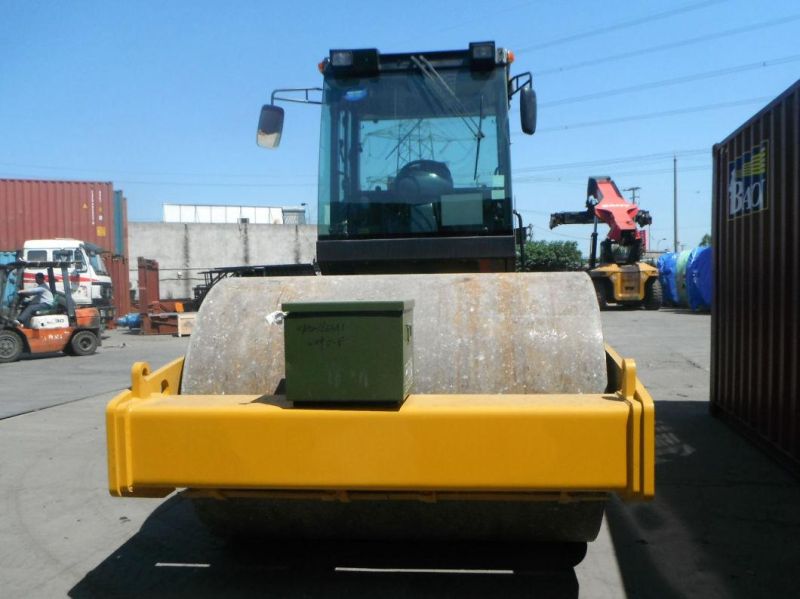

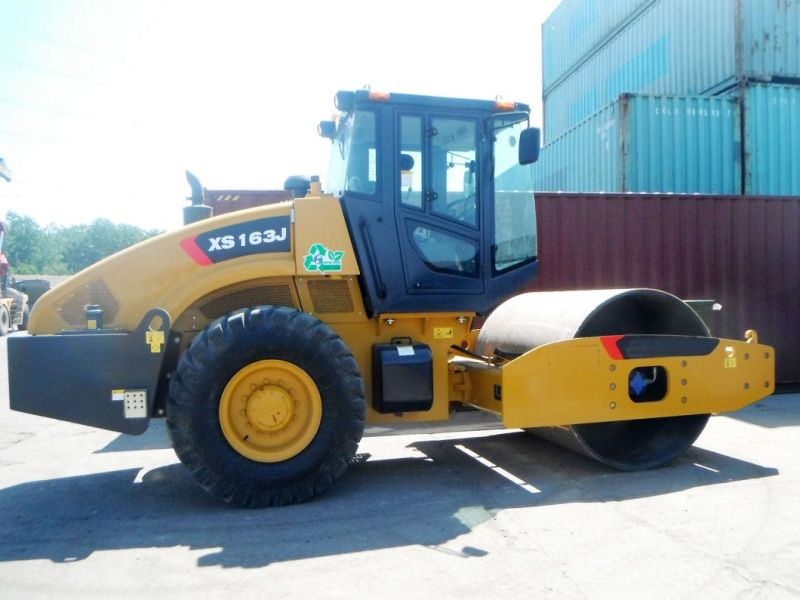

China Road Roller Xs163j

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

Type：Road Roller
Working Method：Steel Wheel
Axle：Biaxial Dual-Drum
Grinding Wheel Type：Tire Grind
Engine Type：Diesel Engine
Travel Speed：12km,H

Base Info

Model NO.：XS163J
Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
Condition：New
Weight on Front Drum：7700
Draulic Oil Tank Capacity：170
Transport Package：Nude Packing
Specification：CE, ISO
Origin：Jiangsu, China
HS Code：8401100000
Production Capacity：500,Month

Description

ModelUnitXS162JOperating weightkg16000Weight on front drumkg7700Static linear pressureN/cm362Speed rangekm/h Speed I 2.3Speed II 4.5Speed III 9.4Theoretical gradeability%30Min. external turning radiusmm6500Steering angle°±33Oscillating angle°±11Vibration frequencyHz28Nominal amplitude (high/low)mm1.9/0.95Excitation force (high/low amplitude)kN290/145Engine model Shanghai Diesel EngineD6114Type Water cooled, pressurizedMax. powerkW115@1800r/minEngine oil consumptiong/kW.h223Hydraulic oil tank capacityL170Fuel tank capacityL240
China Road Roller Xs163j

China Road Roller Xs163j

China Road Roller Xs163j

China Road Roller Xs163j

China Road Roller Xs163j
