• Model NO.：Lw300fn
• Type：Small Loader
• Dumping Reach：1105mm
• Transport Package：in Nude
• Specification：ISO; CE
• Trademark：oriemac
• Origin：Jiangsu, China
• Production Capacity：3000

Basic Info.

Model NO. Lw300fn Type Small Loader Dumping Reach 1105mm Transport Package in Nude Specification ISO; CE Trademark oriemac Origin Jiangsu, China Production Capacity 3000

Product Description

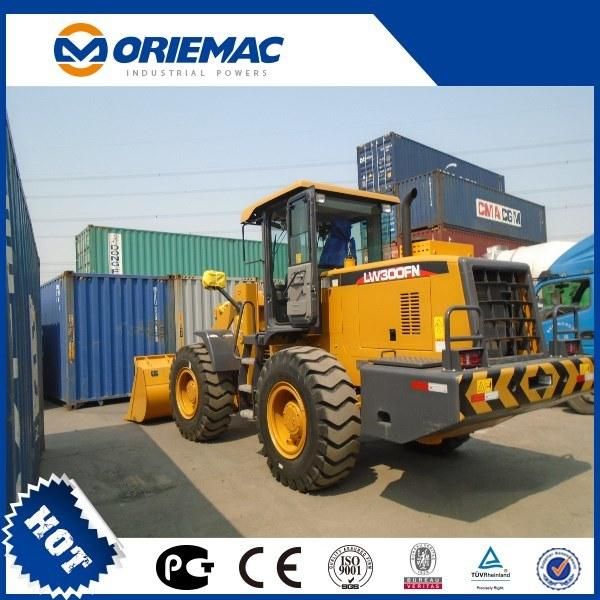

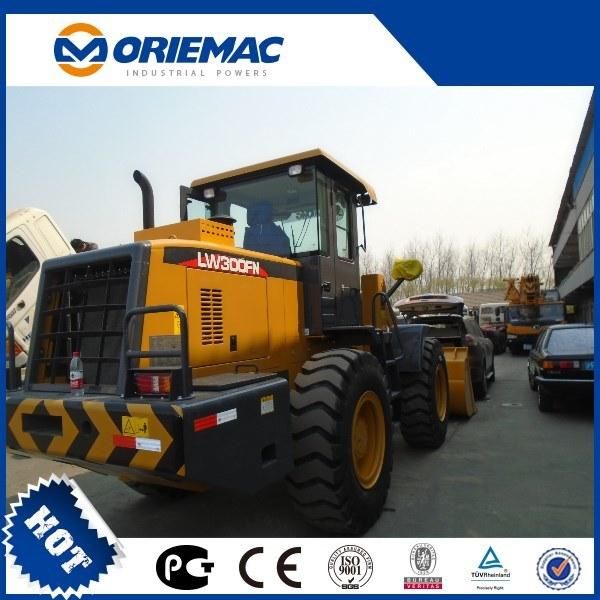

3 Tons Mini Chinese Wheel Loader Lw300fn with two filter and rock bucket

With reasonable design, the machine adopts hydraulic mechanical drive, and four-wheel drive, featuring larger drive force and digging force; with small turning radius and convenient and agile operation, it is suitable for narrow working area.
Z type bucket linkage, single arm, lifting cylinder of high pivot, strong digging force and short working cycle time, and higher working efficiency.
Priority of on-demand oil supply for all hydraulic load-sensing steering and priority of single pump valve working hydraulic system, economic in energy-saving.
With openable rear hood side door and full visibility, the cab provides the comfortable working environment and advantaged maintenance condition.


Item	Specification	Item	Specification
Bucket capacity	1.7m³	Min. turning radius (outside of rear wheel)	5160mm
Rated load	3000kg	Steering angle	35°
Dumping height	4100mm	Min. ground clearance	410mm
Dumping reach	1105mm	Wheel base	2600mm
Boom lifting time	5.5s	Wheel tread	1800mm
Max. speed	38km/h	Rated power	92kW/2200rpm
Max. breakout force	120kN	Tyre	17.5-25
Max. drawing force	90kN	Overall dimensions	6990*2420*3000mm
Max. grade ability	30°	Operating weight	10200kg
