• Model NO.：630
• Type：Small Loader
• Name：Changlin 630 4WD Backhoe Loader Rops AC
• Dimension：7173*2382*2820mm
• Bucket Capacity：0.8-1.2m3
• Digger Capacity：0.25-0.35m3
• Operating Weight：7.8t
• Usage：Universal Type
• Scraper Type：Pull Scraper
• Load and Unload Method：Front Discharge
• Engine Power：74~147kw
• Color：Orange
• Transport Package：Nude Packing
• Trademark：ORIEMAC
• Origin：Jiangsu, China
• Production Capacity：500,Month

Basic Info.

Model NO. 630 Type Small Loader Name Changlin 630 4WD Backhoe Loader Rops AC Dimension 7173*2382*2820mm Bucket Capacity 0.8-1.2m3 Digger Capacity 0.25-0.35m3 Operating Weight 7.8t Usage Universal Type Scraper Type Pull Scraper Load and Unload Method Front Discharge Engine Power 74~147kw Color Orange Transport Package Nude Packing Trademark ORIEMAC Origin Jiangsu, China Production Capacity 500/Month

Product Description

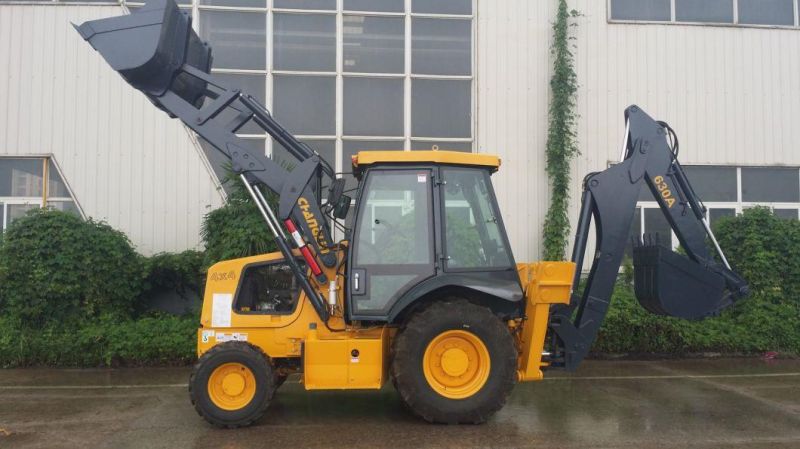

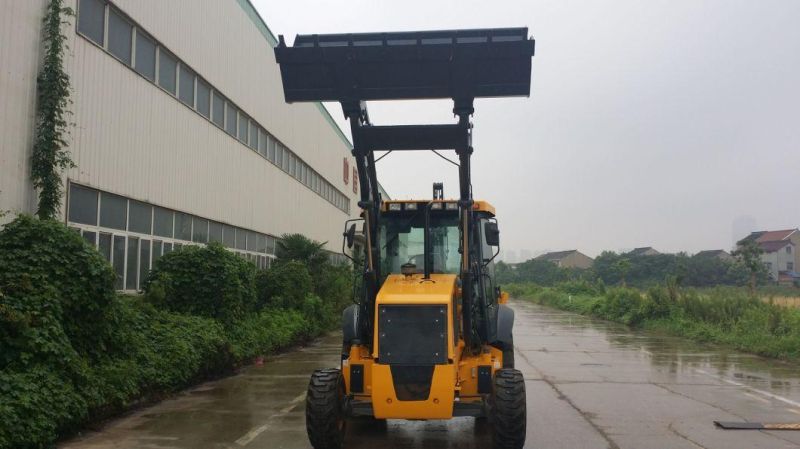

Changlin 630 4WD Backhoe Loader ROPS AC

Excavating Loader 630 is a kind of multifunctional construction machinery with following advantages: Reasonable and compact layout, beautiful shape, comfortable and convenient operation, small turning radius, good work capability, and higher cost performance. It is widely used in municipal administration, construction, oil field, water conservancy, forestry, military engineering, and other project constrution. Also it can work on excavating, shovel loading, carrying, leveling and so on, which makes flexible and efficient operation on exclusions of waste dumps and industrial waste in large and medium-size enterprises. It is a perfect machine to do variable works.

Overall dimensions(L×W×H)	7173×2382×2820mm
Operating weight	7.8t
Bucket capacity	0.8-1.2m3
Max.dumping clearance	2825mm
Max.dumping reach	727mm
Break-out force	42KN
Digger capacity	0.25-0.35m3
Max.digging depth	4495mm
Max.digging radium	4000mm
Max. discharging height	5471mm
Rated load	2t
Dumping clearance	2825mm
Wheel	2180mm
Tread (front /rear)	1885/1784mm
Turning radius	3780mm
Tires (F/R)	14-17.5/19.5L-24
Model	TD226B-4IG2
Rated power	70kw
Displacement	4.156L
