• Model NO.：ZY80SD
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Transport Package：Nude Package
• Specification：ISO, CE, GOST
• Trademark：Rongsheng(Zhenyu)
• Origin：China(Mainland), Anhui
• HS Code：84291110
• Production Capacity：1500 Units, Year

Basic Info.

Model NO. ZY80SD Size Small-Scale Certification CE, ISO9001: 2000 Condition New Transport Package Nude Package Specification ISO, CE, GOST Trademark Rongsheng(Zhenyu) Origin China(Mainland), Anhui HS Code 84291110 Production Capacity 1500 Units/ Year

Product Description

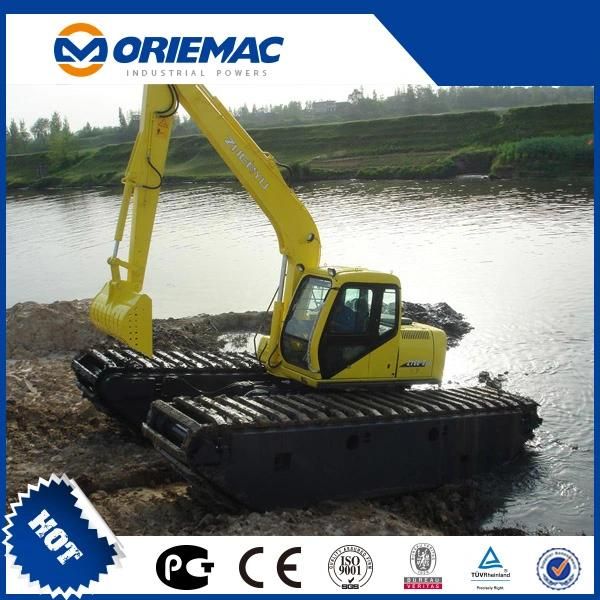

China Mini Amphibious Excavator Zy80SD for sale

Specifications:
Engine:
Name: Japanese made Yanmar engine
Model: 4TNV98T
Type: Turbo-charged
Power: 56.5kW/2, 200rpm
Maximum torque: 301Nm at 1, 650rpm
Number of cylinders: 4
Displacement: 3.319L
Standard bucket capacity: 0.2m3
Arm length: 3, 000mm
Boom length: 4, 500mm
Chain: 2 chains
Tank capacity:
Fuel tank capacity: 300L
Hydraulic tank capacity: 210L
Maximum digging reach: 8, 996mm
Maximum digging reach on ground: 8, 772mm
Maximum digging depth: 5, 879mm
Maximum vertical wall digging depth: 4, 796mm
Maximum cutting height: 8, 443mm
Maximum dumping height: 6, 457mm
Minimum front slew radius: 3, 524mm
Working ranges:
Operating weight: 15, 000kg
Hydraulic system:
Main pump:
Type: Variable displacement axial piston pumps
Maximum displacement: 90cm3/r
Pilot pump:
Type: Gear pump
Working pressure: 26.5mPa
Slew: Fixed displacement axial piston motor
Travel: Variable displacement axial piston motors

Slew speed	12rpm
Minimum back slew radius	2,257mm
Maximum travel speed high/low	3.79/2.33kph
Gradeability	35 degrees
Tractive effort	112.2kN
Maximum digging force of bucket	49kN
Maximum digging force of arm	43.4kN
Ground pressure	0.13kg/cm 2
