• Model NO.：SD16
• Condition：New
• Color：Yellow
• Rated Power: 120kw/1850rpm：Engine Model: Shangchai Sc11CB184G2b1
• Transport Package：Nude
• Specification：ISO
• Trademark：Shantui
• Origin：China
• Production Capacity：5000 Units,Year

Basic Info.

Model NO. SD16 Condition New Color Yellow Rated Power: 120kw/1850rpm Engine Model: Shangchai Sc11CB184G2b1 Transport Package Nude Specification ISO Trademark Shantui Origin China Production Capacity 5000 Units/Year

Product Description

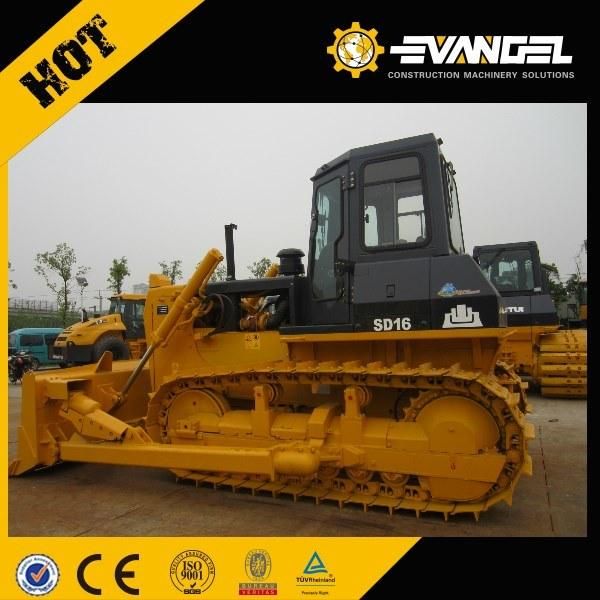

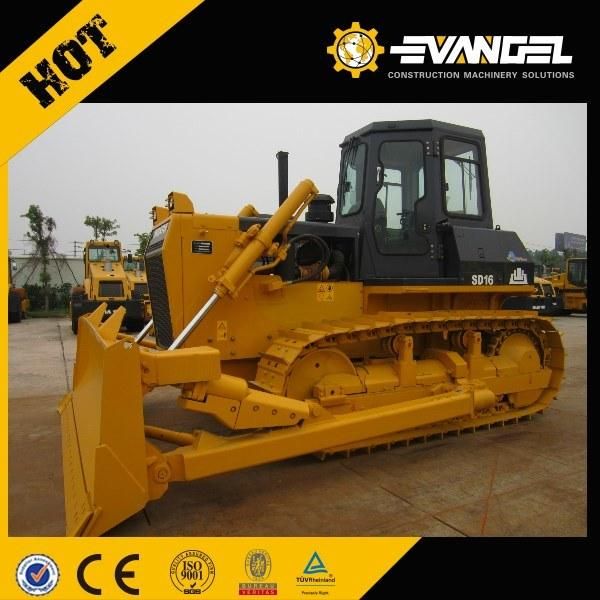

Hot Sale Shantui 160HP Bulldozer SD16 Shangchai/Weichai engine

Specifications
Shantui crawler bulldozer SD16 160HP
Rated Power: 120kW/1850rpm
Engine Model: Shangchai SC11CB184G2B1
Operating Weight: 17Ton

The SD16 is equipped with a hydraulic drive system with hydraulic control technology and has an advanced structure, providing reliable performance and convenient and flexible operation, making the SD16 an ideal construction machine.

ITEMUNITSD16
L× W× H (Ripper not included)mm5140× 3388× 3032
Operating weight (Ripper not included)t17
Engine-Shangchai SC11CB184G2B1/ Weichai WD10G178E25
Rated powerkW/rpm120/1850
Gradeability° 30
Blade type-Straight tilt blade U blade Angle blade
Blade widthmmStraight tilt blade 3388× 1149 U blade 3556× 1120 Angle blade 3970× 1040
Dozing capacitym3Straight tilt blade 4.5 U blade 5 Angle blade 4.3
Ma× Drop below ground of blademm540
Lift height of blademm1095
Ripper type-Three-shank ripper
Ripping depth of rippermm572
Lifting height of rippermm592
Number of carriers (each side)-2
Number of track rollers (each side)-6
Number of track shoes (each side)-37
Width of track shoemm510
Track gaugemm1880
Ground length and ground pressuremm/MPa2430-0.067
Pitchmm203.2
Forward speedkm/h03.29
05.82
09.63
Reverse speedkm/h04.28
07.59
012.53
