• Model NO.：XS202J
• Condition：New
• Transport Package：Nude Package
• Specification：CE, ISO, GHOST
• Trademark：EVANGEL
• Origin：Jiangsu, China
• Production Capacity：5000sets, Month

Basic Info.

Model NO. XS202J Condition New Transport Package Nude Package Specification CE, ISO, GHOST Trademark EVANGEL Origin Jiangsu, China Production Capacity 5000sets/ Month

Product Description

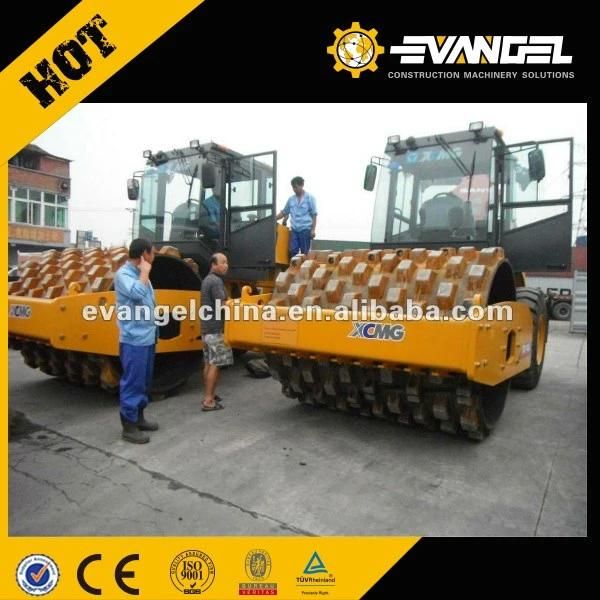

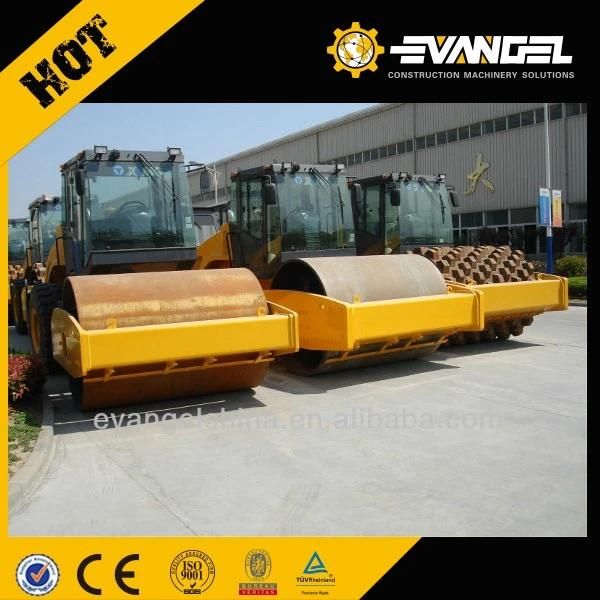

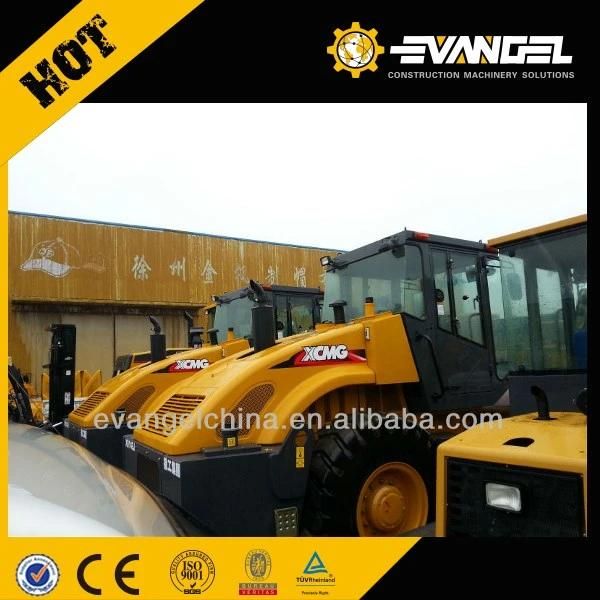

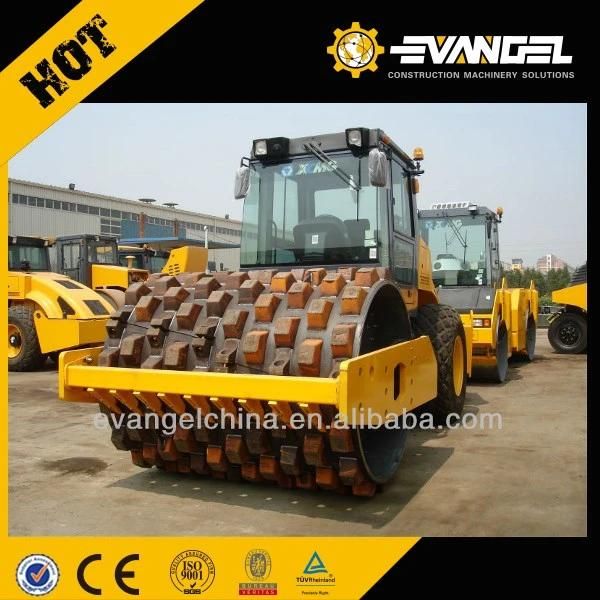

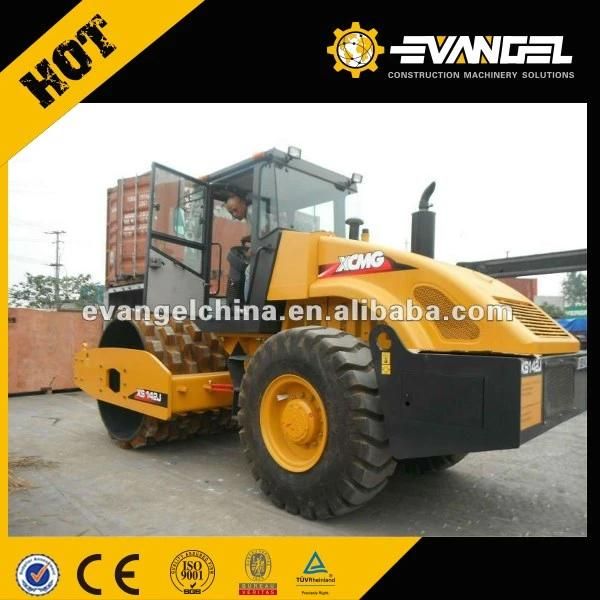

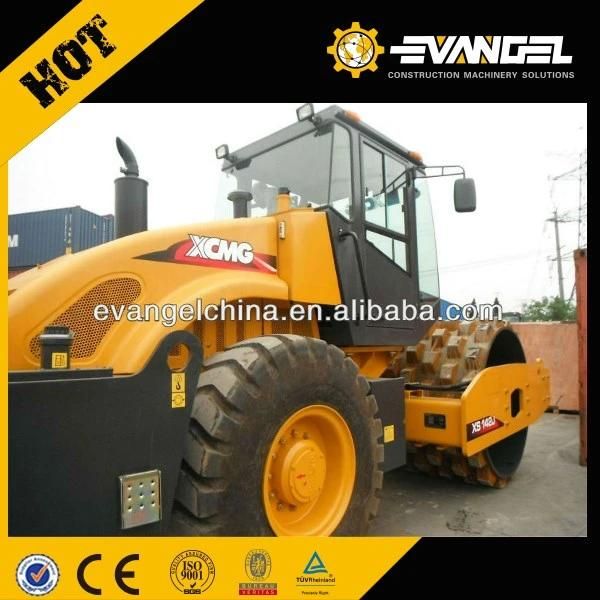

single drum road roller 20ton XS202J
Operating weight 20ton
Shangchai engine SC8D156.2G2B1
Mechanical drive
The imported engine with original packing has strong power, and can meet the requirements of high-efficient work.
- Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
- Low emission meets the Europe II standard.
- The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
- The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
- Automatic preheating system improves the working capacity in the low temperature.
- Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
- Restart prevention system effectively avoids the misoperation, and improve the use security of the machine.

Item	Unit	XS202J
Operating weight	kg	20000
Weight on front drum	kg	10000
Static linear load	N/cm	470
Speed range	km/h
Speed I		2.63
Speed II		5.3
Speed III		8.6
Theoretical gradeability	%	30
Min. external turning radius	mm	6500
Steering angle	°	±33
Oscillating angle	°	±10
Vibration frequency (high/low)	Hz	33/28
Nominal amplitude (high/low)	mm	1.9/0.95
Excitation force (high/low amplitude)	kN	353/245
Drum diameter	mm	1600
Drum width	mm	2130
Engine model		SC8D175.1G2B1
Rated power @2000 r/min	kW	128
Engine oil consumption	g/kW.h	223
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	240
