• Model NO.：OKW-2.6T
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Gradeability：30%
• Ground Specific Pressure：32 Kpa
• Min Swing Radius：1920 mm
• Max Digging Height：3820 mm
• Max Digging Radius：3690mm
• Horsepower：15 Kw,3600rpm
• Power：18kw,3600rpm
• Color：Black, Red, Yellow, Blue
• Engine 1：Km385
• Engine 2：3te25
• Walk Speed：2.7 Km,H
• Max Digging Depth：2630 mm
• Max Dumping Height：2320 mm
• Work Pressure：20MPa
• Swing Speed：32 Rpm,Min
• Transport Package：Plywood Case
• Specification：OKW-2.6T
• Trademark：OUKE
• Origin：Jining, China
• HS Code：84295212
• Production Capacity：500 Sets, Month

Basic Info.

Model NO. OKW-2.6T Size Small-Scale Certification CE, ISO9001: 2000 Condition New Gradeability 30% Ground Specific Pressure 32 Kpa Min Swing Radius 1920 mm Max Digging Height 3820 mm Max Digging Radius 3690mm Horsepower 15 Kw/3600rpm Power 18kw/3600rpm Color Black, Red, Yellow, Blue Engine 1 Km385 Engine 2 3te25 Walk Speed 2.7 Km/H Max Digging Depth 2630 mm Max Dumping Height 2320 mm Work Pressure 20MPa Swing Speed 32 Rpm/Min Transport Package Plywood Case Specification OKW-2.6T Trademark OUKE Origin Jining, China HS Code 84295212 Production Capacity 500 Sets/ Month

Product Description

CE EPA China Cheap Price New Crawler Small  Hydraulic Micro
Mini Excavator Product DescriptionMini excavator has the advantages of flexible and practical, high configuration, high performance, low oil consumption, beautiful appearance and wide application.Suitable for vegetable greenhouses loose,  landscaping of municipal departments, orchard nursery tree digging, concrete pavement broken, sand and stone material mixing and small space construction operations,reducing maintenance and operating costs, improving the degree of mechanization.

Model	16EV80	18J	18Z	20STelescopic crawler
Vehicle weight	1340kg	1340kg	1600kg	1850kg
Bucket capacity	0.025m3	0.025m3	0.045m3	0.07m3
Bucket width	40cm	40cm	40cm	40cm
Engine	EV80	Yanmar 3TNV70	Yanmar 3TNV70	Yanmar 3TNV70
Power	14 Kw/ 2200 rpm	10.3Kw/ 2200 rpm	10.3Kw/ 2200 rpm	10.3Kw/ 2200 rpm
Rotary speed	12rpm	12rpm	12rpm	12rpm
Walking speed	2km/h	2km/h	3km/h	2.7km/h
Grade ability	30°	30°	30°	30°
Crawler width	18cm	18cm	23cm	25cm
Crawler length	1090mm	1090mm	1250mm	/
Max. Digging Radius	2400mm	2400mm	3470mm	3600mm
Max. Digging Depth	1400mm	1400mm	1500mm	2320mm
Max. Digging Height	2490mm	2490mm	3275mm	3720mm
Max unloading height	1750mm	1750mm	1900mm	2260mm

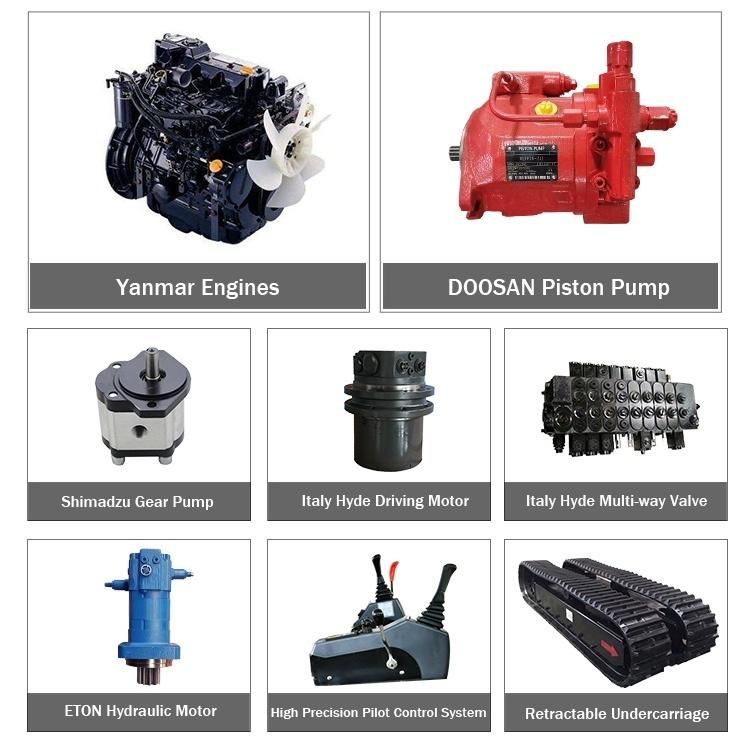

Product Features 1. Optional Yanmar (EPA certified) / Changchai / Laidong engines, to meet environmental protection, cost control and other needs.
2. It adopts the first-line brand high-precision 8-way multi-way valve. The valve core has its own buffer function and is controlled by ECU computer, which makes the action more flexible.

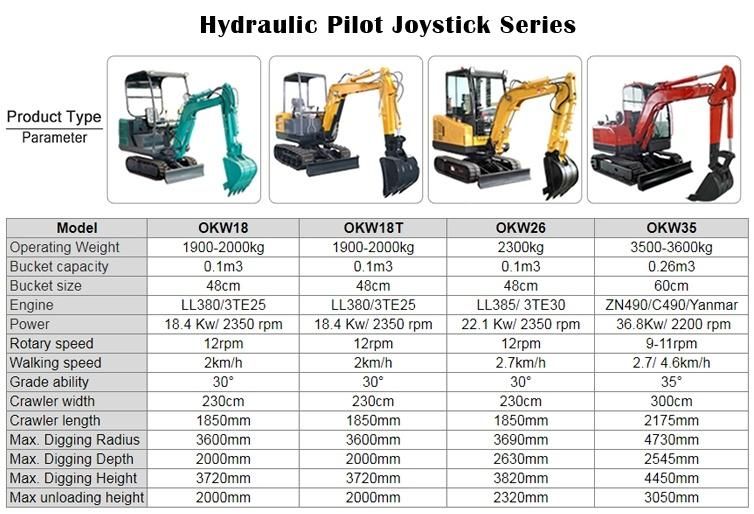

3. 1.3 tons, 1.5 tons, 1.6 tons, 1.8 tons, 2 tons, 3 tons can be equipped with high precision pilot control system.
4. Adopting Japan NACHI / American ETON hydraulic motor, small size, light weight, high efficiency and long service life.
5. Use Shimadzu gear pump / DOOSAN load sensitive variable displacement piston pump for continuous operation for up to 8 hours.
6. The boom can swing from side to side with high flexibility to meet the needs of small space operations.

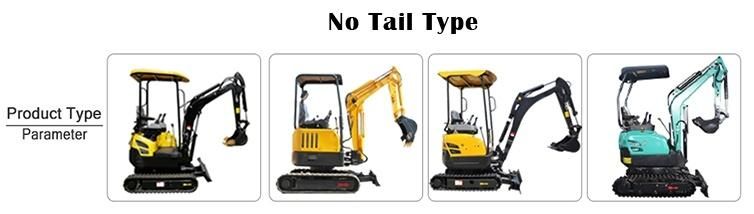

7. Optional with tail or no-tail to meet the construction needs under different conditions.
8. Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.
9. Made of German Continental  brand tubing, made of natural rubber. The interior uses dense steel wire to increase the service life.
