• Model NO.：OKW-7.5T
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Engine Weight：320
• Rated Speed：2400
• Engine Model：A498bzg-9
• Max Digging Depth：3633
• Wheel-Base：1670
• Tail Swing Radius：1904
• Arm Length：1850
• Operating Weight：7500
• Boom Length：3250
• Counterweight Ground Clearance：929
• Min Ground Clearance：220
• Max Digging Distance：6203
• Max Digging Height：6832
• Bore*Stroke：95,105
• Rated Power：55
• Transport Package：Export Packing
• Specification：7500kg
• Trademark：OUKE
• Origin：Jining, China
• HS Code：8429521200
• Production Capacity：200

Basic Info.

Model NO. OKW-7.5T Size Medium-Sized Certification CE, ISO9001: 2000 Condition New Engine Weight 320 Rated Speed 2400 Engine Model A498bzg-9 Max Digging Depth 3633 Wheel-Base 1670 Tail Swing Radius 1904 Arm Length 1850 Operating Weight 7500 Boom Length 3250 Counterweight Ground Clearance 929 Min Ground Clearance 220 Max Digging Distance 6203 Max Digging Height 6832 Bore*Stroke 95/105 Rated Power 55 Transport Package Export Packing Specification 7500kg Trademark OUKE Origin Jining, China HS Code 8429521200 Production Capacity 200

Product Description

CE EPA China Cheap Price New Crawler Small  Hydraulic Micro
Mini Excavato
Product DescriptionMini excavator has the advantages of flexible and practical, high configuration, high performance, low oil consumption, beautiful appearance and wide application.Suitable for vegetable greenhouses loose,  landscaping of municipal departments, orchard nursery tree digging, concrete pavement broken, sand and stone material mixing and small space construction operations,reducing maintenance and operating costs, improving the degree of mechanization.

Model	16EV80	18J	18Z	20STelescopic crawler
Vehicle weight	1340kg	1340kg	1600kg	1850kg
Bucket capacity	0.025m3	0.025m3	0.045m3	0.07m3
Bucket width	40cm	40cm	40cm	40cm
Engine	EV80	Yanmar 3TNV70	Yanmar 3TNV70	Yanmar 3TNV70
Power	14 Kw/ 2200 rpm	10.3Kw/ 2200 rpm	10.3Kw/ 2200 rpm	10.3Kw/ 2200 rpm
Rotary speed	12rpm	12rpm	12rpm	12rpm
Walking speed	2km/h	2km/h	3km/h	2.7km/h
Grade ability	30°	30°	30°	30°
Crawler width	18cm	18cm	23cm	25cm
Crawler length	1090mm	1090mm	1250mm	/
Max. Digging Radius	2400mm	2400mm	3470mm	3600mm
Max. Digging Depth	1400mm	1400mm	1500mm	2320mm
Max. Digging Height	2490mm	2490mm	3275mm	3720mm
Max unloading height	1750mm	1750mm	1900mm	2260mm

Product Features 1. Optional Yanmar (EPA certified) / Changchai / Laidong engines, to meet environmental protection, cost control and other needs.
2. It adopts the first-line brand high-precision 8-way multi-way valve. The valve core has its own buffer function and is controlled by ECU computer, which makes the action more flexible.
3. 1.3 tons, 1.5 tons, 1.6 tons, 1.8 tons, 2 tons, 3 tons can be equipped with high precision pilot control system.
4. Adopting Japan NACHI / American ETON hydraulic motor, small size, light weight, high efficiency and long service life.
5. Use Shimadzu gear pump / DOOSAN load sensitive variable displacement piston pump for continuous operation for up to 8 hours.
6. The boom can swing from side to side with high flexibility to meet the needs of small space operations.

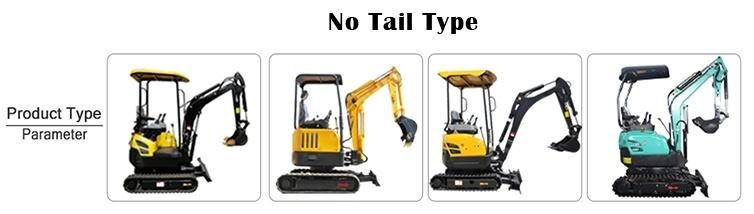

7. Optional with tail or no-tail to meet the construction needs under different conditions.
8. Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.
9. Made of German Continental  brand tubing, made of natural rubber. The interior uses dense steel wire to increase the service life.Customer FeedbackPackaging & ShippingCompany Information
