• Model NO.：HQ-65
• Engine：Honda Engine
• Power：5.5HP
• Line Width：8-25cm
• Flow：2.8L,Min
• Worrking Pressure：22.8MPa
• Line Speed：130m,Min
• Transport Package：Wooden Case
• Specification：112*79*75cm
• Trademark：OUKE
• Origin：Jining, China
• HS Code：8479109000
• Production Capacity：200pieces,Month

Basic Info.

Model NO. HQ-65 Engine Honda Engine Power 5.5HP Line Width 8-25cm Flow 2.8L/Min Worrking Pressure 22.8MPa Line Speed 130m/Min Transport Package Wooden Case Specification 112*79*75cm Trademark OUKE Origin Jining, China HS Code 8479109000 Production Capacity 200pieces/Month

Product Description

CE Superior Quality Best Automatic Thermoplastic Road Marking MachinesProduct Description

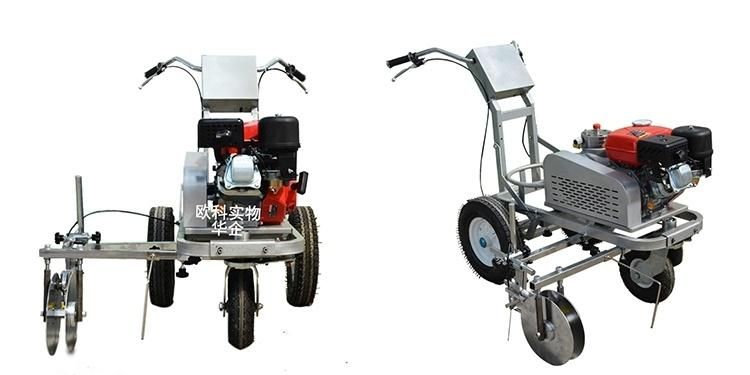

Front Universal Wheel Cold Painting Road Line Marking Machine use the strong frame, universal wheel in the front, you can control the director very easy, we also increase 6 pieces damping block to reduce the vibration, the line will be very straight.
We also use the big power pump, the line very clearly.
We also could supply Honda gasoline and variable piston pump if you need, the detail price please contact us.
Product parameters


Model	HQ55	HQ65	HQ85
Type	Cold paint	Cold paint	Cold paint
Engine	Honda/China	Honda/China	Honda/China
Power	5.5HP/6.5Hp	5.5HP/6.5Hp	5.5HP/ 7 Hp
Weight	75KG	90-120 KG	90- 120 KG
Overall dimensions	1000*800*900mm	1120*790*950mm	1120*790*950mm
Maximum flow	2.8L/min	3.8L/min	3.8L/min
Line width	80-250mm	80-250-500mm	80-250-500mm
MWP	22.8 Mpa	22.8 Mpa	25 Mpa
Maximum line speed	83m/min	122m/min	122m/min
Biggest support nozzle	0.5mm	0.7mm	0.77 mm
Start model	Hand	Hand	Hand
Warranty	12 month	12 month	12 month
Nozzle type	217/ 517	217/ 517	217/ 517
Nozzle number	1	1-2 PCS	1-2 PCS

New road line marking machine use strong frame, more thicker material, more powerful. You can use 1 spray gun or 2 spray gun. We also can add the aprons adjust line width.

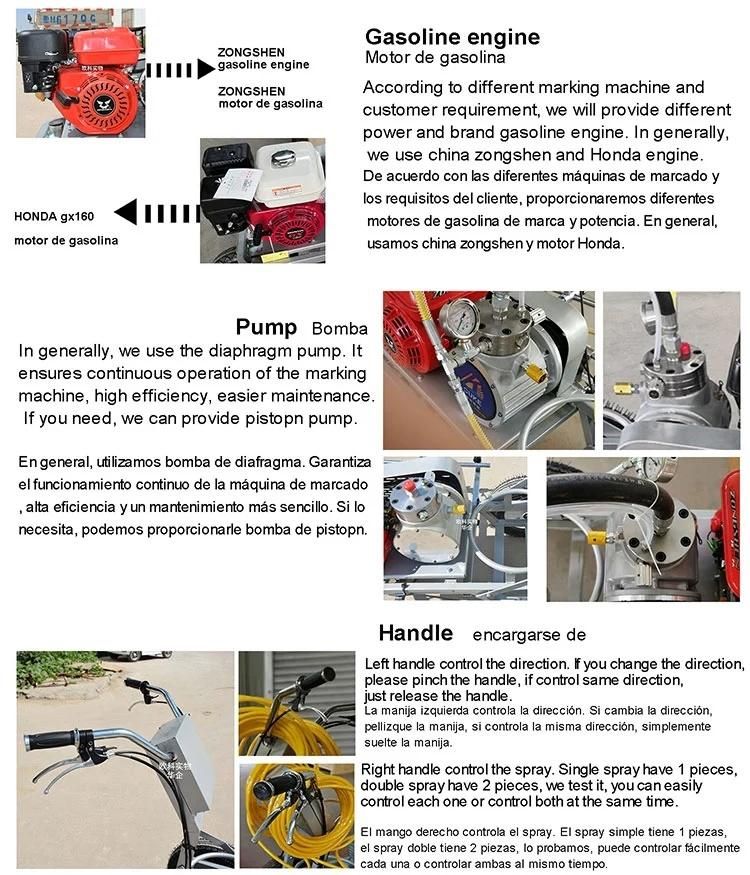

According to different marking machine and customer requirement, we will provide different power and brand gasoline engine. In generally, we use china zongshen and Honda engine De acuerdo con las diferentes máquinas de marcado y los requisitos del cliente, proporcionaremos diferentes motores de gasolina de marca ypotencia. En general usamos china zongsheny motor Honda.
Product Details
 Big power pump, Uniform paiting line.  the handle control the paiting and walk. it can use for school, park, airport.
Right handle control the spray. Single spray have 1 pieces.double s Spray have 2 piecei es, we test it, you can easilveo ontrol each one or control both at the same time.

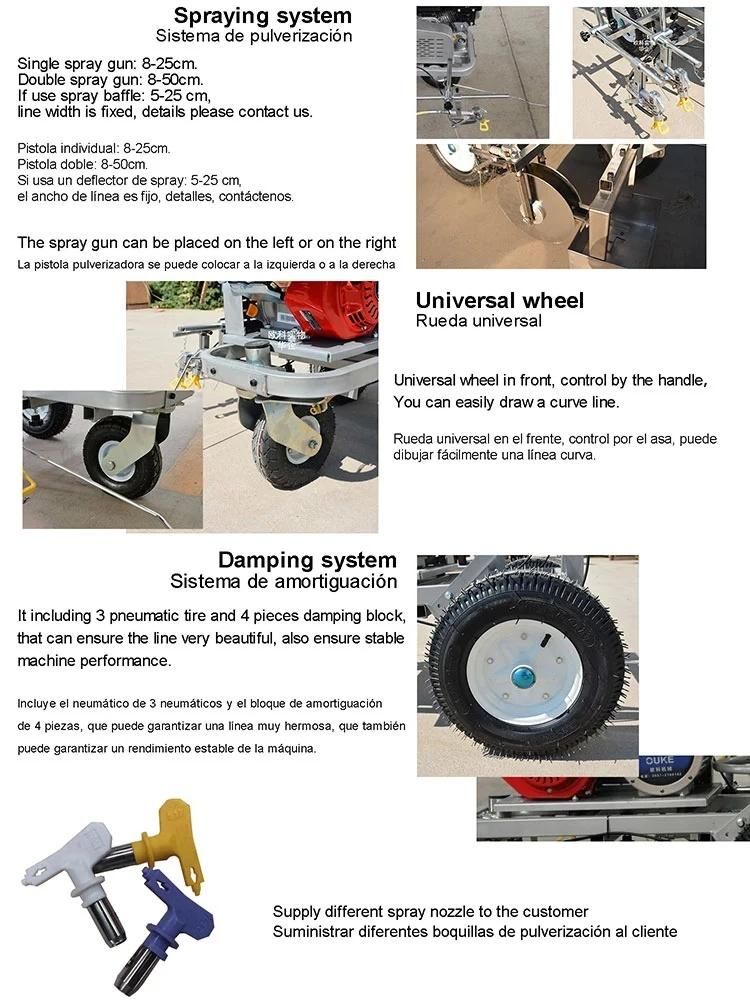

According different work request, road marking machine can use 1 nozzle, 2 nozzle, or use apron, spraying width is 50mm-500 mm.


Front universal wheel cold paint spray road line marking machine painting width up tp 50cm, according to requirements, this type road line marking machine can paiting narrow line 5cm, you can use our machine in plastic runway.

If used in garages, car park, roads, this is very suitable, the machine has a shock absorption module to ensure that the spray is more straight and more uniform.
If used in plastic runways, epoxy floors, lawns, please choose barrier/ baffle, this type of spray can ensure a smooth dash, no burrs, can spray thinner lines, and the plastic track is generally narrow, we also have a return hopper.

Packaging & Shipping

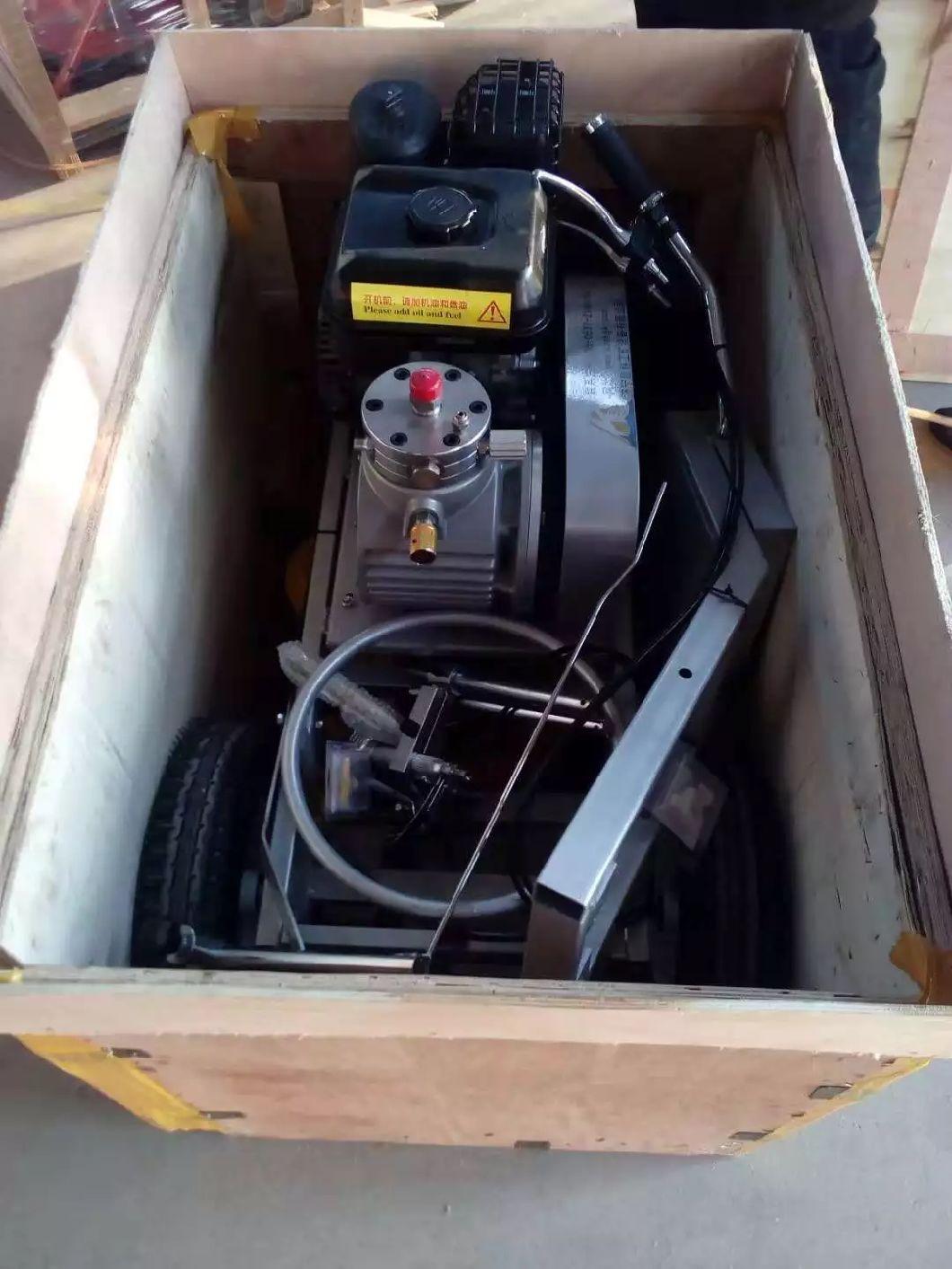

LCL goods for wooden case or create case.
FCL goods for case , 20ft 40 ft containers.

Normally shipping by sea, if  orders urgent, by air or express.

Details typr road marking machine, please contact us.
