• Model NO.：722H
• Engine Model：6bt5.9
• Rated Power/Speed：100,2200kw,Rpm
• Dimension：8015*2380*3050mm
• Operating Weight(Standard)：11000kg
• Max. Gradeability：20%
• Travelling Speed ,Forward：5 8 13 20 30 42km,H
• Travelling Speed ,Reverse：5 13 30km,H
• Tractive Force(F=0.75)：61.3kn
• Transmission Pressure：1.3~1.8MPa
• Transport Package：Nude Packing
• Specification：CE, ISO
• Trademark：Changlin
• Origin：China
• Production Capacity：100 Units,Month

Basic Info.

Model NO. 722H Engine Model 6bt5.9 Rated Power/Speed 100/2200kw/Rpm Dimension 8015*2380*3050mm Operating Weight(Standard) 11000kg Max. Gradeability 20% Travelling Speed ,Forward 5813203042km/H Travelling Speed ,Reverse 51330km/H Tractive Force(F=0.75) 61.3kn Transmission Pressure 1.3~1.8MPa Transport Package Nude Packing Specification CE, ISO Trademark Changlin Origin China Production Capacity 100 Units/Month

Product Description

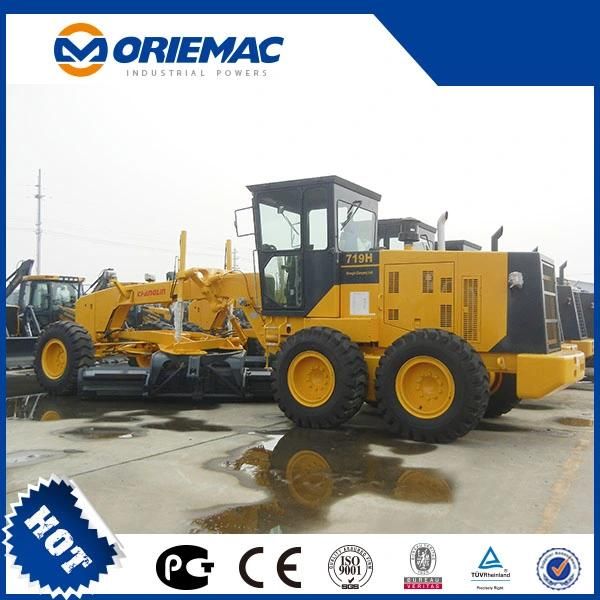

Changlin Motor Grader 722H 220hp motor grader spare parts

Overall Dimension
1 Length 9235mm
2 Width 2600mm
3 Height(To the top of the cab) 3370mm
4 Wheel base 6100mm
5 Tread 2120(mm)
Main Technical Specification
1 Operating weight 16100kg
2 Blade length 4320mm
3 Blade height 545mm
4 Shovel Blade thickness 16mm
5 Max lifting height 450mm
6 Max grading depth 510mm
7 Min. turning radius 7300mm
8 Pivot angle frame +260
9 Max turning angle(front wheel) +490
10 Oscillating angle of front axle 320
11 Min ground clearance 430mm
12 Cut angle 29-77°
13 Traveling speed(Km/h),6 forward and 3 reverse

(1) gear forward 6.8
(2) gear forward 10.3
(3) gear forward 15.3
(4) IV gear forward 22.7
(5) V gear forward 32
(6) VI gear forward 47
(7) gear reverse 6.8
(8) gear reverse 15.3
(9) gear reverse 32
Diesel Engine
1 Model ShangChai SC11CB220G2B1 engine
2 Type Direct injection. Turbocharged. Water cooling
3 Rated output 162 kW
4 Inter-bore of cylinder/Stroke 121/152 (mm)
5 Total exhaust of cylinder 10.49 (L)
6 Model of starting motor KB-24V
7 Power of start motor 7.5(KW)
8 Voltage of starting motor 24(V)
9 Rated speed 2200(r/min)
10 Max. Torque 823±6%(N.m)/(1400r/min)
11 Starting type Electric
12 Min. specific fuel consumption <235(g/Kw.h)
13 Engine specific oil consumption 0.7(g/Kw.h)
14 Net weight 960(kg)
Transmission System
1. Torque Converter
1 Model WG200(ZF)
2 Type 3-elements.single stage
3 Torque ratio 2.55
4 Cooling type Pressure oil circulating
2. Transmission Case
1 Model WG200(ZF)
2 Type power shift, single-shift lever, netural-shift lock device
3 Gear shift position 6 Forward and 3 reverse gears
3. Axle and Tire
1 Type of main reducer spiral bevel gear, single stage
2 Gear ratio of main reducer 3.583
3 Type of final reducer Single stage chain-drive
4 Gear of ratio of final reducer 3.75
5 Gear ratio 13.436
6 Max. drawing force 82KN
7 Tandem drive Double row roller-chains
8 Size of tire 17.5-25-14PR(standard) 14.00-24-16PR(optional)


We supply all kinds of Machinery & Equipment of most Chinese big brands like, LIUGONG, SINOTRUK etc to global market with reasonable
price and best service. Most of products are meet with ISO,CE,EPA,GOST standards.
Our advantages are as following:

1. Professionally export construction machinery and spare parts for more than 8 years to over a hundred countries.
2. Experienced in customs clearance in different ports(countries). Clients type has big contractors, tender, private,rental companies, construction companies etc.
3. Quick delivery time and thoughtful services.

Any further questions , please do not hesitate to inform us!
