100t Bolted Cement Silo for Concrete Batch Plant
Shanghai Newwall Machinery Co., Ltd.- Building Material Making Machinery:Cement Storage Silo
- Transport Package:Seaworthy Packing
- Specification:CE
- Trademark:Newwall
- Origin:Shanghai
Base Info
- Model NO.:NWS-100
- HS Code:8474900000
- Production Capacity:200PCS,Year
Description
Basic Info.
Model NO. NWS-100 HS Code 8474900000 Production Capacity 200PCS/YearProduct Description

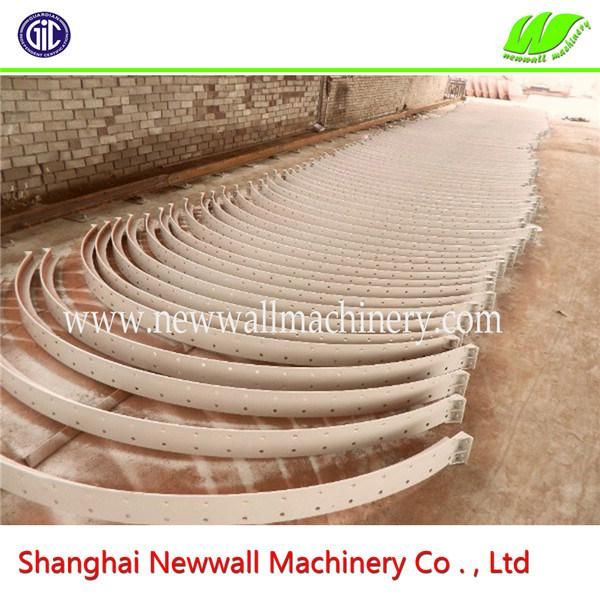

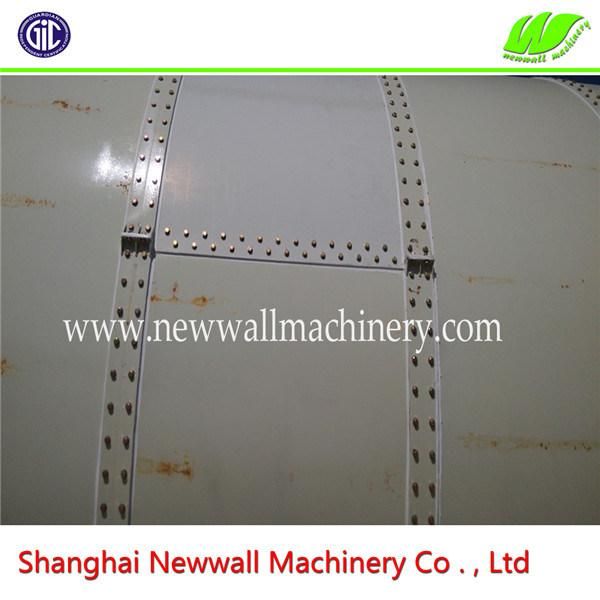

The Sectional silo is also called piece assembly silo, it's bolt connection type silo, the silo body can be connected by high strength bolts, so no matter what size you need, all parts can be loaded into container, which is easy to transport and save freight. The diameter is 3~10m, silo volume can be up to 2000m3.
With mature technology, the silo is reliable in strength and airtight and can be produced very economically. The separate segments- sealed according to the special applications are prefabricated in units, which can be transported by all usual possibilities. The silos will be delivered with oblique, flat or without roofs.
Used for: Powdery and coarse bulk materials as cement, lime, gypsum, fly ash, different binder materials, gravel, limestone, sand and different chippings.
Application: Loading and unloading plants, Dosing-Weighing and Mixing plants, Preparation plants, transitional silo.
Advantages: Designed and statical optimized silos, precise elements due to industrial fabrication.

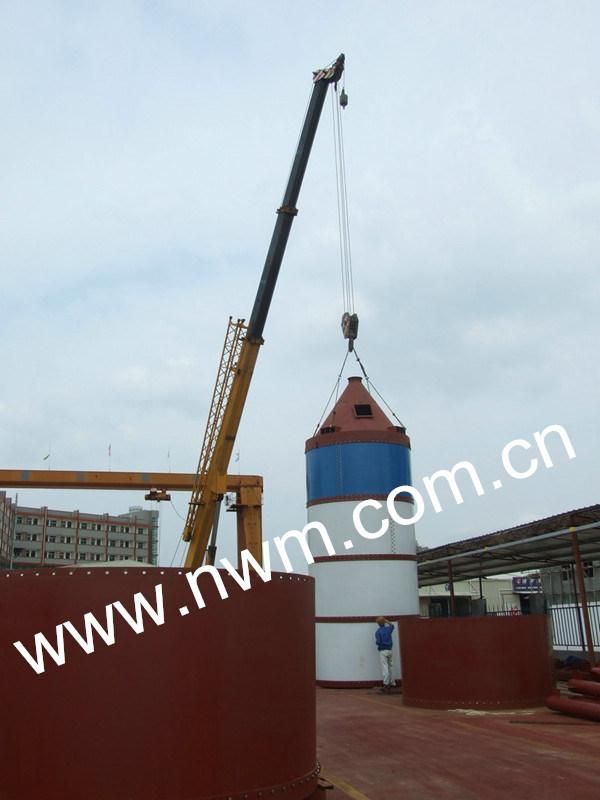

Short and cost-economic construction, erection seasonally independent.
The discharge height depends on the method of discharge, withdrawal by conveyor or bulk loading on truck. The cone angle can be designed according to customer's requirements.
volume(T) | outside diameter(mm) | cylinder height(mm) |
50 | 3100 | 4681 |
60 | 3100 | 6200 |
100 | 3100 | 10755 |
150 | 3300 | 12302 |
150 | 3800 | 9239 |
200 | 4500 | 9265 |
250 | 4500 | 12300 |
300 | 5000 | 10783 |
400 | 5700 | 12300 |
500 | 6500 | 12302 |
800 | 8000 | 10783 |
1000 | 8000 | 13820 |
1500 | 10000 | 15337 |
2000 | 10000 | 18378 |
