• Model NO.：gost series
• Condition：New
• Color：Yellow
• Crawler Bulldozer：Russia Series
• Bulldozer：320pH
• Chinese Bulldozer：Large Type
• Hydraulic Transmission Bulldozer：Large Type
• Hydraulic Crawler Bulldozer：Lt
• High Quality Bulldozer：Larger Type
• Flexibility Chinese Crawler Bulldozer：Larger Type
• Chinese Draulic Bulldozer：Large Type
• Direct Drive Crawler Bulldozer：Large Type
• High Quality Flexibility Dulldozer：Large Type
• Transport Package：Naked Packing
• Specification：A+
• Trademark：CHHGO
• Origin：Henan
• HS Code：84291110
• Production Capacity：3000 Per Month

DozerTiltOperation weight (including ripper) (Kg) 36800Ground pressure(including ripper) (KPa)93Track gauge(mm)2083Gradient30°/25°Min. ground clearance (mm)556Dozing capacity (m³)11.24Blade width (mm)3940Max. digging depth (mm)582Overall dimensions (mm)7751×3940×3549EngineTypeCUMMINIS NTA855-C360S10Rated revolution (rpm)2100Flywheel power (KW/HP)235/320Torque storage coefficient20%Undercarriage systemTypeThe track is triangle shape.The sprocket is elevated elastic suspended.Number of track rollers (each side)8Pitch (mm)226Width of shoe (mm)560Gear1st2nd3rdForward  (Km/h)0-3.50-6.20-10.8Backward (Km/h)0-4.70-8.10-13.9Implement hydraulic systemMax. system pressure (MPa)22.5Pump typeGears oil pumpSystem output(L/min)220

Our Products

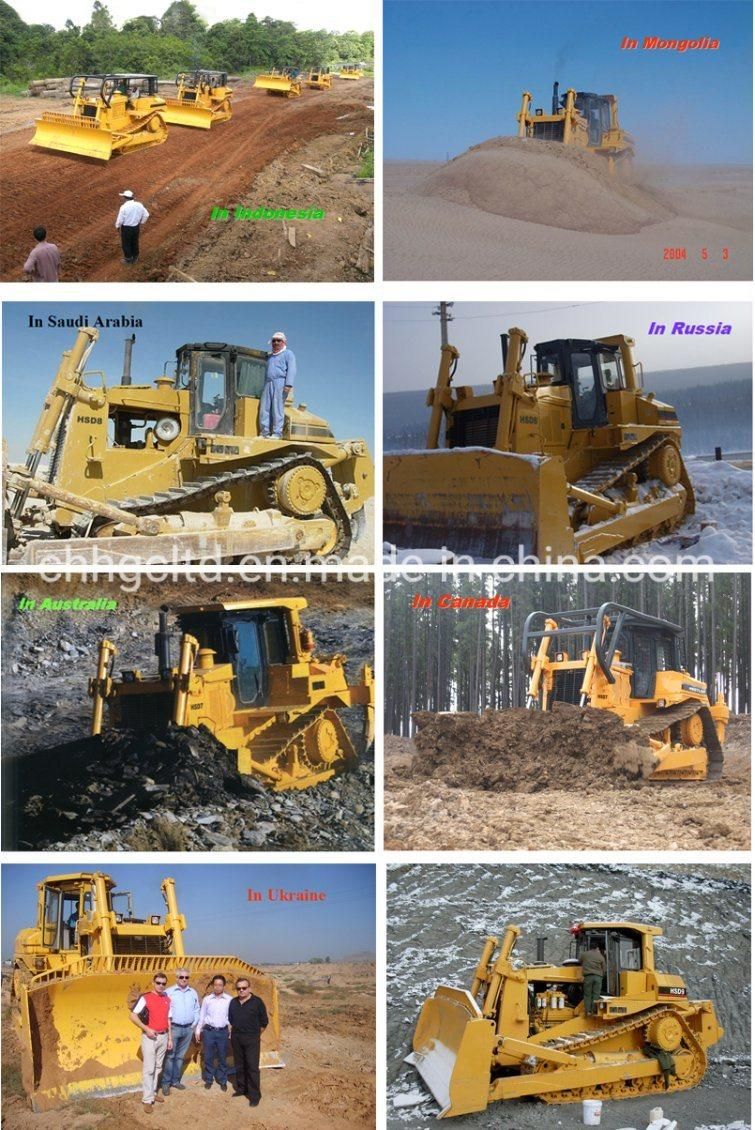

Actual Site

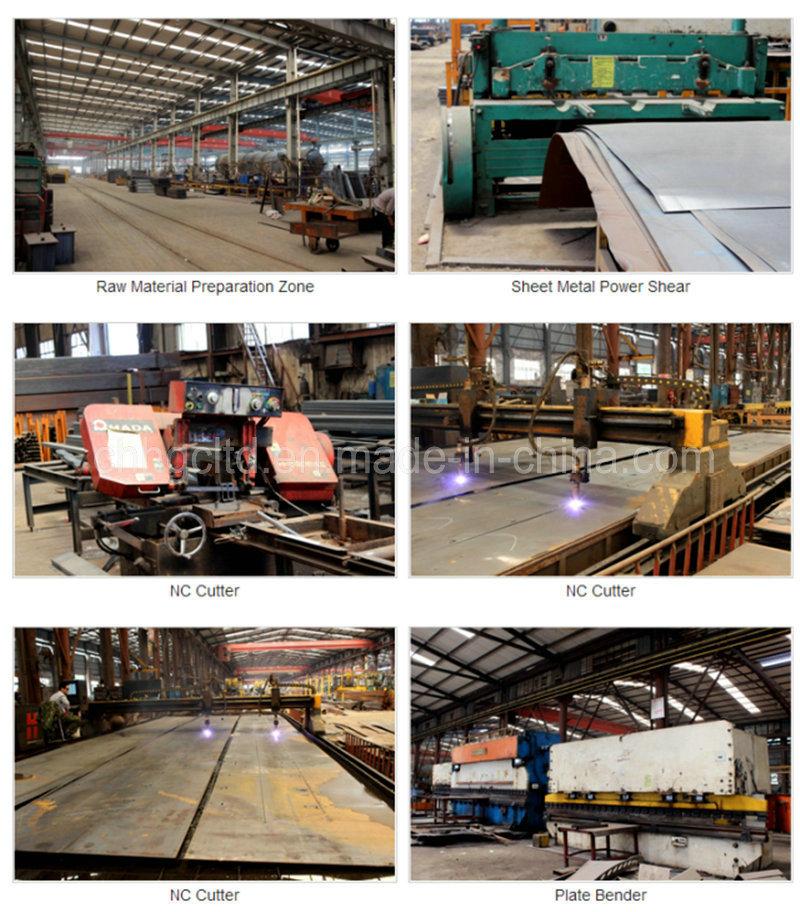

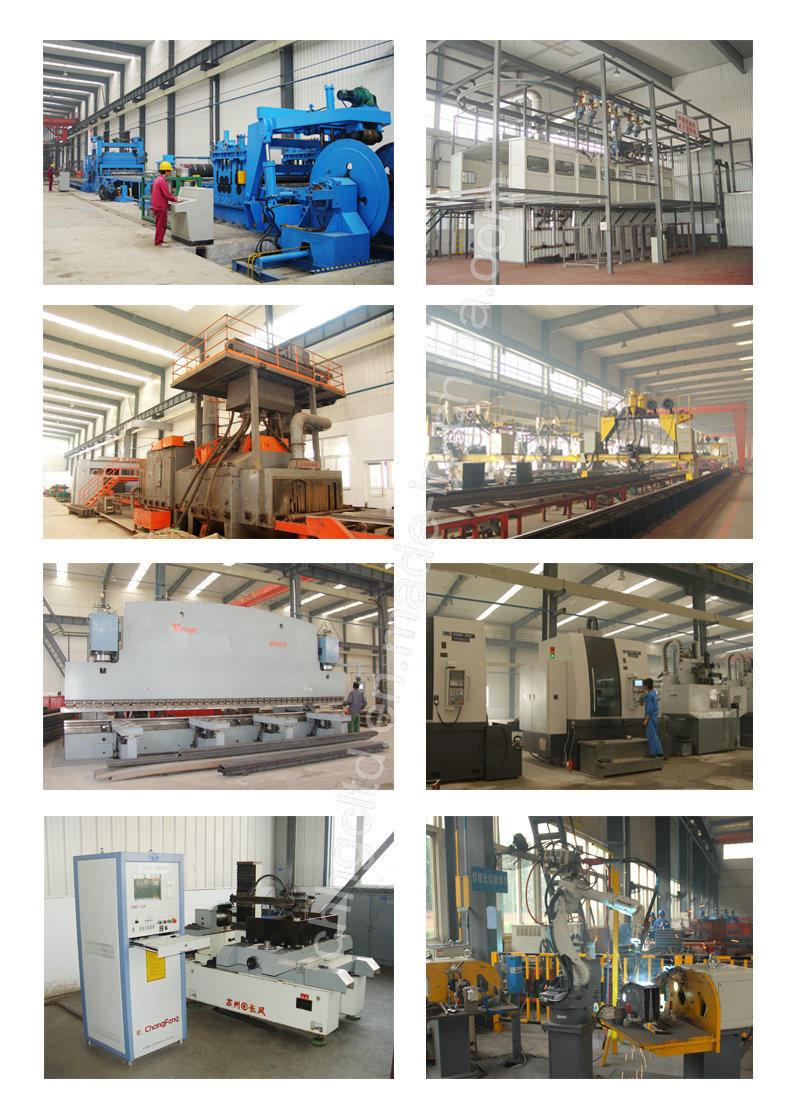

Workshop
