• Model NO.：Crawler Tractor Bulldozer
• Flexibility Mini Type Bulldozer：Mini 4.5
• High Quality Crawler Bulldozer：165HP
• New Crawler Bulldozer：4.5
• 165HP New Crawler Bulldozer：4.5
• Transport Package：Naked Packing
• Specification：A
• Trademark：CHHGC
• Origin：Henan
• HS Code：84291110
• Production Capacity：3000 Per Month

BulldozerOperation weight (not including ripper) (Kg)17120Ground pressure (Kpa)64Track gauge (mm)1880Gradient30°/25°Min. ground clearance (mm)352.5Dozing capacity (m³)5.0Blade width (mm)3297Max. digging depth of blade (mm)420Max. lifting height of blade(mm)900Max. digging depth of ripper(mm)550Max. lifting height of ripper(mm)510Overall dimensions (mm) 5447×3297×3160Engine Typeweichai  WD10G178E25Rated revolution (rpm)1850Rated power (KW/HP)131/178Flywheel power (KW/HP)121/165Max. torque (N.m/rpm)  830/1100Rated fuel consumption(g/KW?h)≤218Undercarriage systemTypeSwing type of sprayed beamSuspended structure of equalizer barNumber of track rollers (each side)6Number of carrier rollers(each side) 2Pitch (mm)203Width of shoe (mm) 500Gear1st2nd3rd4th5thForward  (Km/h)0-2.520-3.320-5.680-7.530-10.64Backward (Km/h)0-3.530-4.600-7.940-10.53 Implement hydraulic systemMax. system pressure (MPa)12Pump typeTwo groups Gears pump

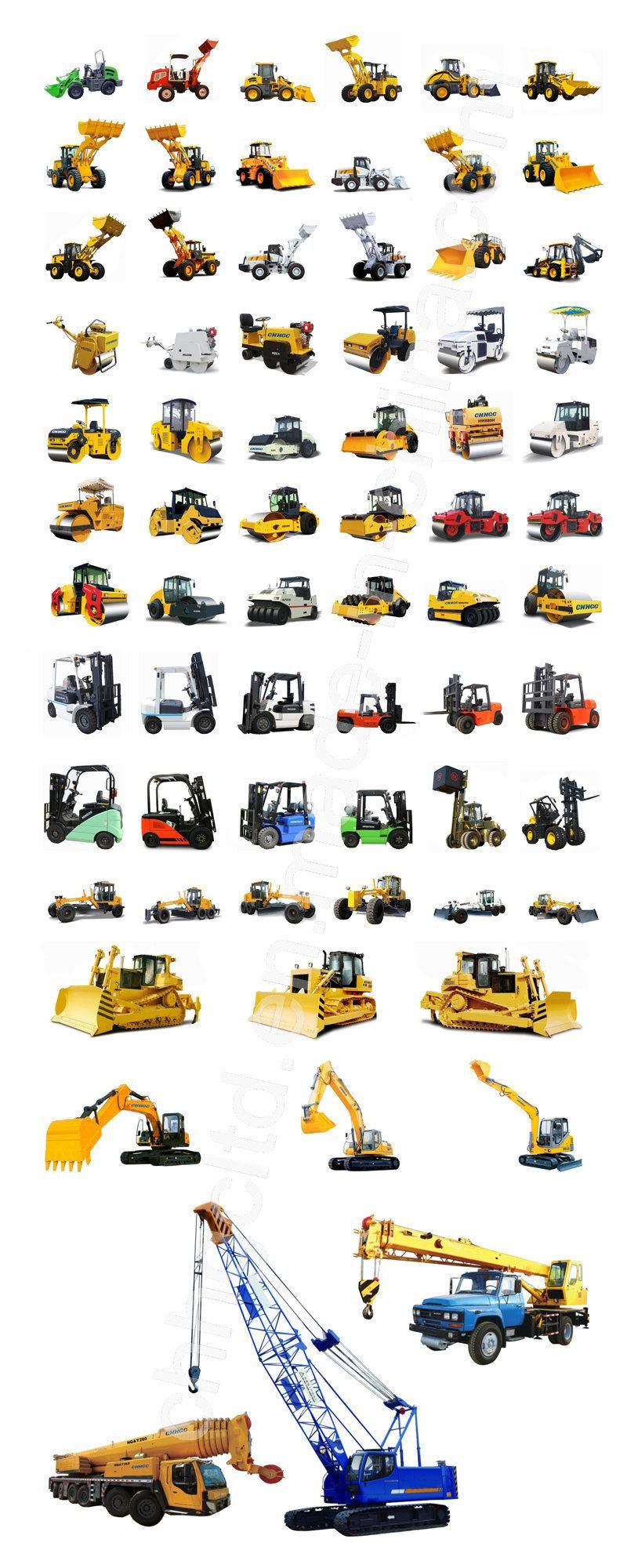

Our Products

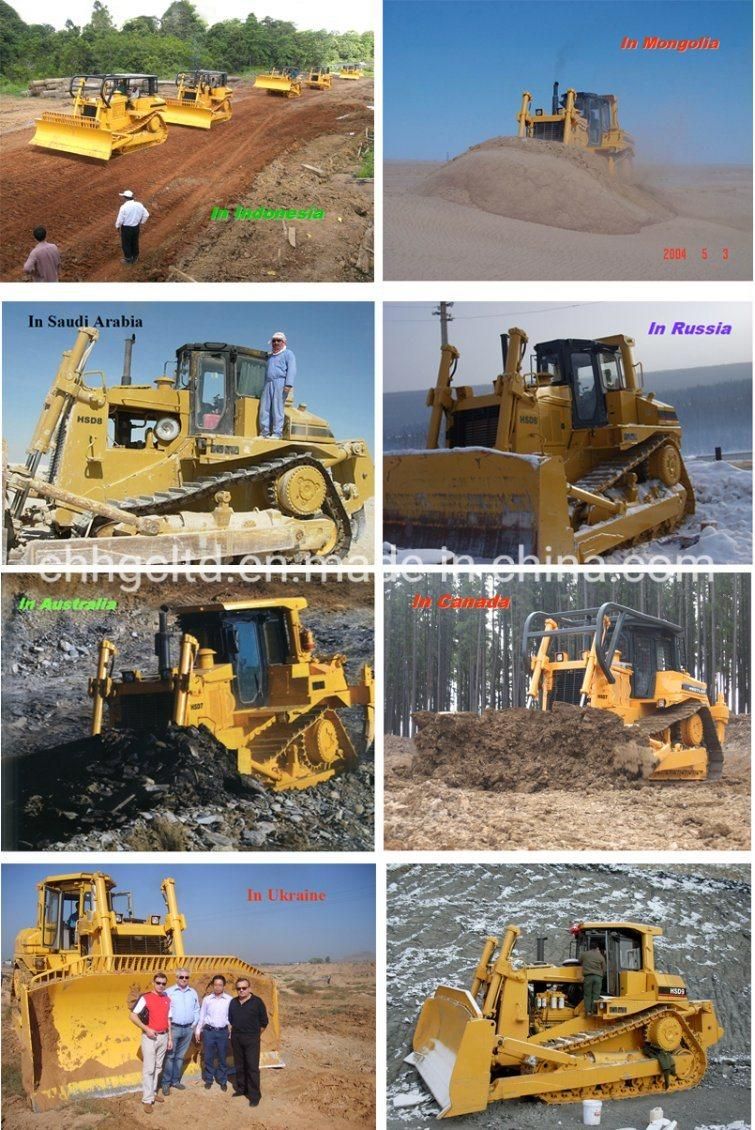

Actual Site

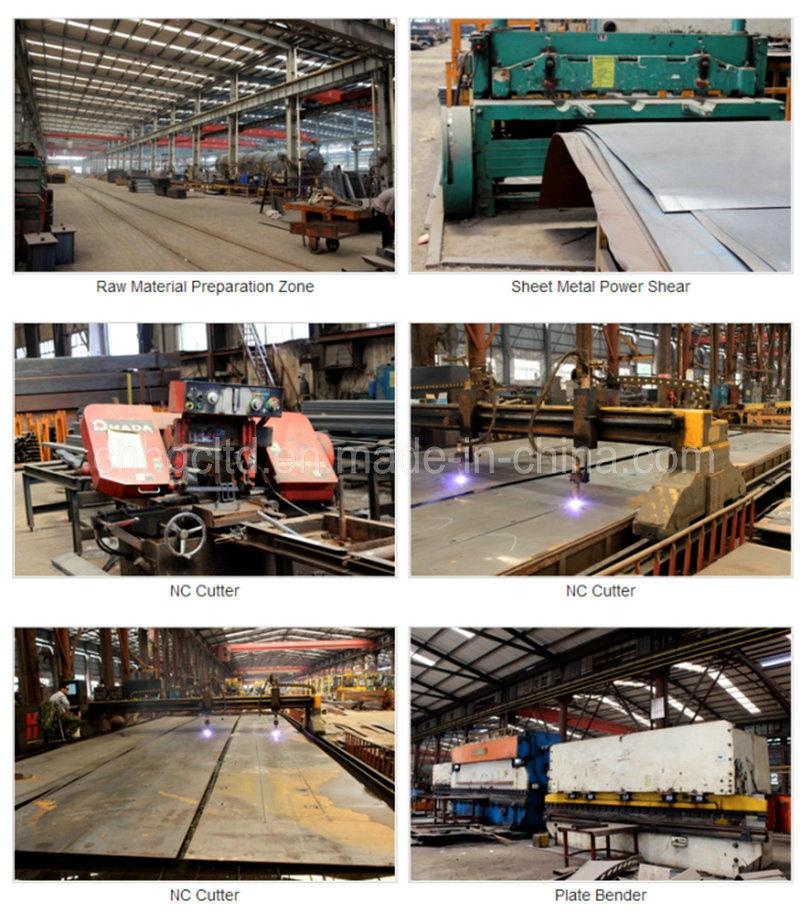

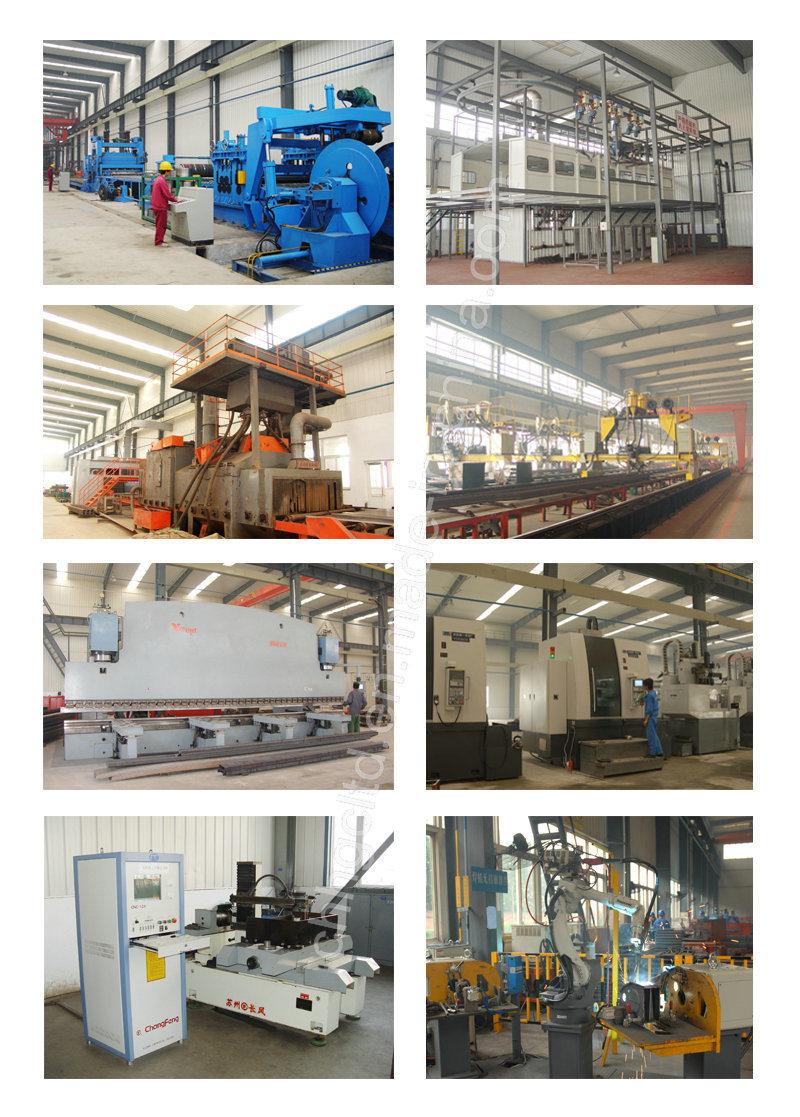

Workshop



Packaging and Shipping

1. All the ripper dozers will be made anti rust before shipment
2. Different shipping method for different situation, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking service


Our Services

1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available. OEM is welcome.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best reliable heavy-duty earth-moving machinery in China.
7.Warranty period is 1-year or 2000 working hours against Bill of Lading.
