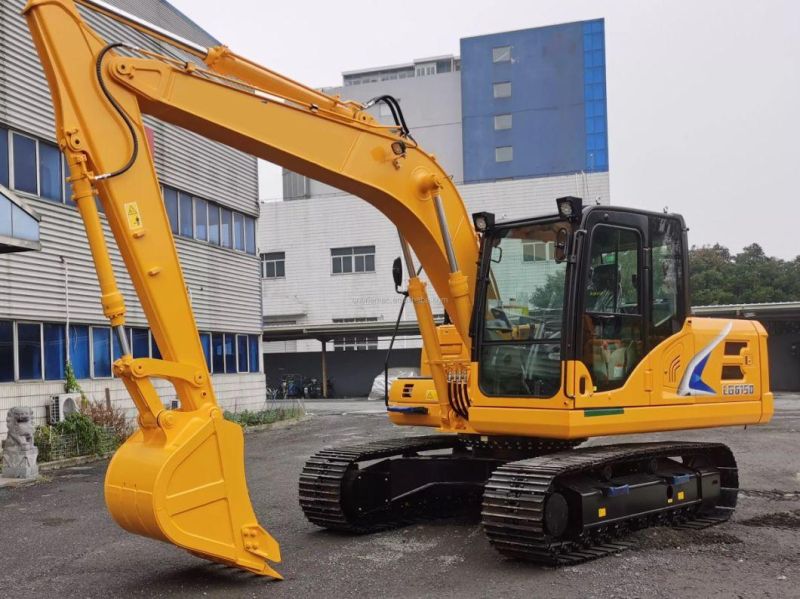

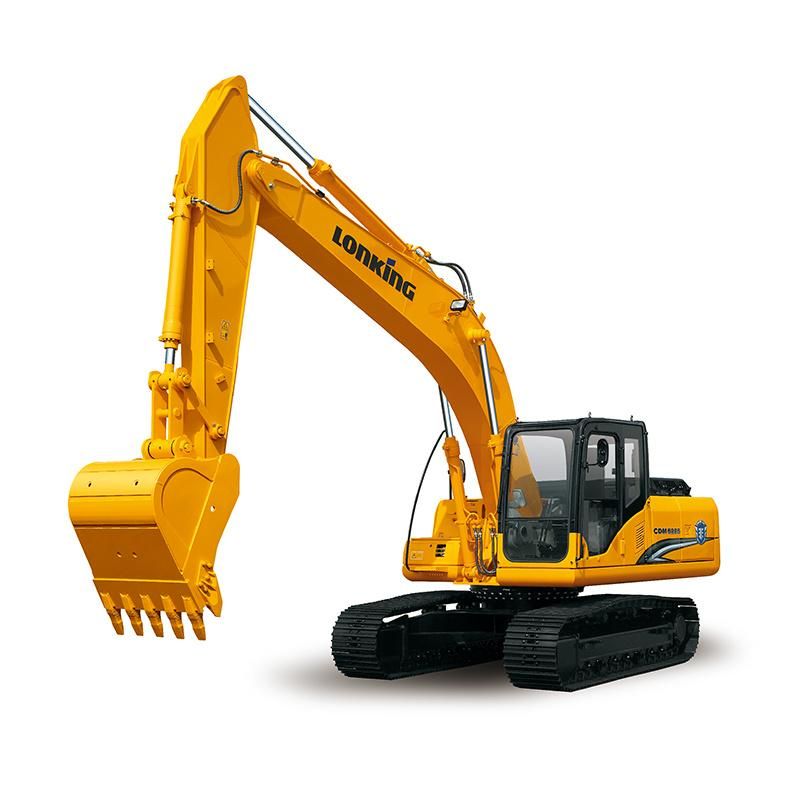

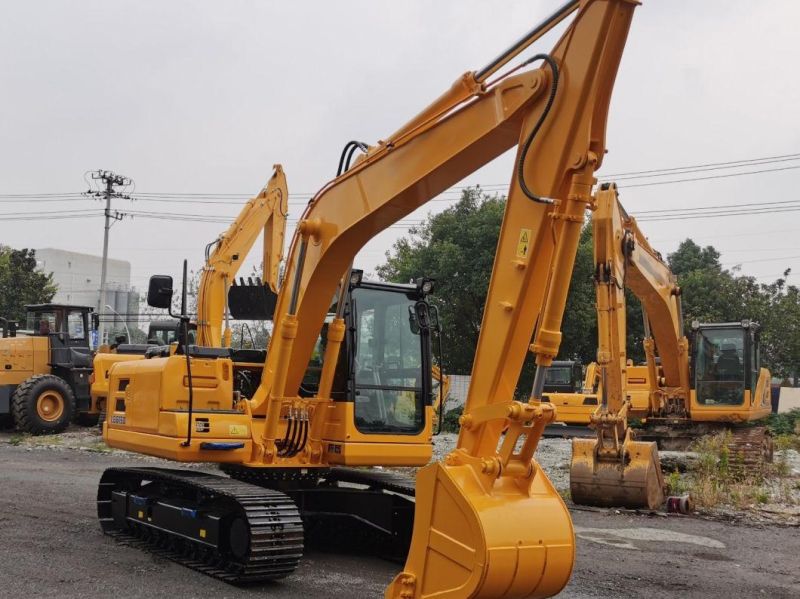

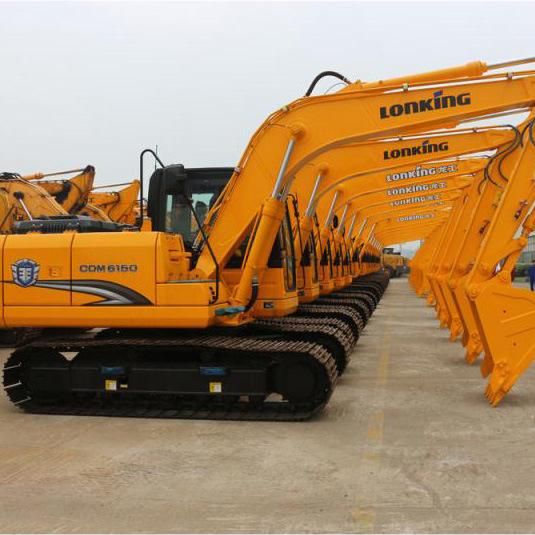

Lonking Powerful Hydraulic System 15ton Crawler Excavator (CDM6150E)
Sinomada Heavy Industry (Changsha) Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Grab Shovel
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.5~1.0m³
Base Info
- Model NO.：CDM6150E
- Size：Medium-Sized
- Certification：CE, ISO9001: 2000
- Condition：New
- Rated Power：86kw
- Boom Length：4600mm
- Arm Length：2500mm
- Bucket Radius：1270mm
- Transport Package：Nude,Container
- Specification：14000kg
- Trademark：LONKING
- Origin：China
- HS Code：8429521200
- Production Capacity：100units,Month
Description
Overview
Product DescriptionModel CDM6150E General Operating weight( kg) 14000 Standard bucket(m³) 0.56 Bucket range(m³) 0.25-0.75 Ground pressure(kPa) 45 Travel speed(km/h) 3.34/5.5 Swing speed (rpm) 11.9 Gradeability 35° (70%) Engine Model Cum.mins QSF3.8 Cum.mins QSB4.5 Rated power(Kw(hp)/rpm) 86 (117) /2200 90(122)/2000 Displacement (L) 3.8 4.5 Fuel tank(L) 270 Hydraulic System Max.pressure of Implements(MPa) 34.3 Max. flow of system( L/min) 120×2 Hydraulic oil tank(L) 159 Working Device Boom length(mm) 4600 Arm length(mm) 2500 Bucket radius(mm) 1270 Digging Force Max. arm digging force (SAE/ISO)(kN) 75/85.6 Max. bucket digging force (SAE/ISO)(kN) 116/132.4
