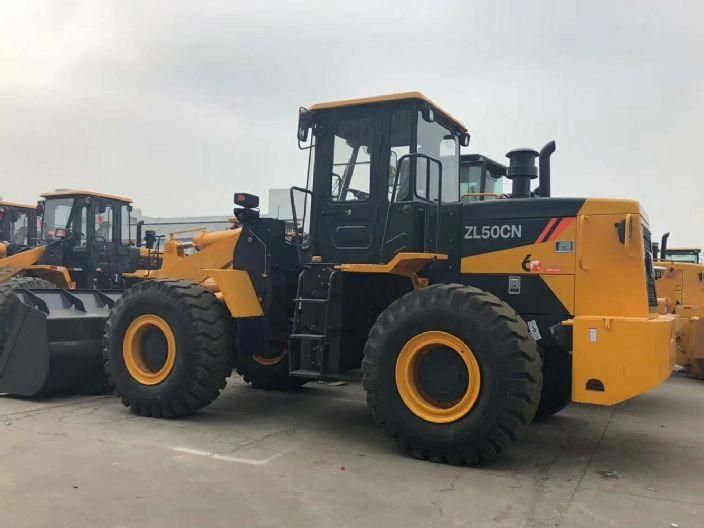

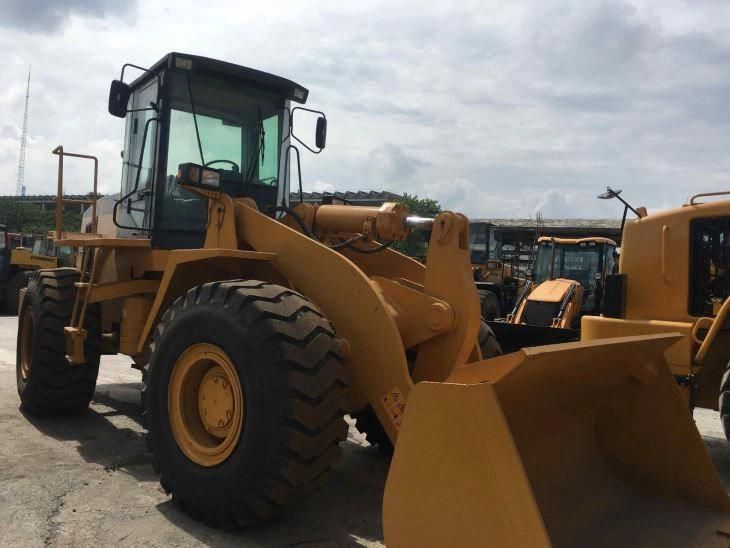

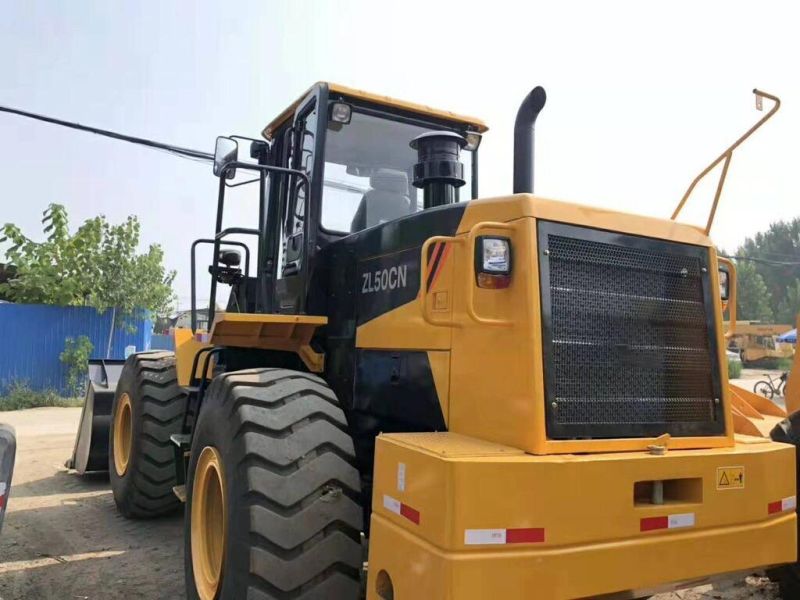

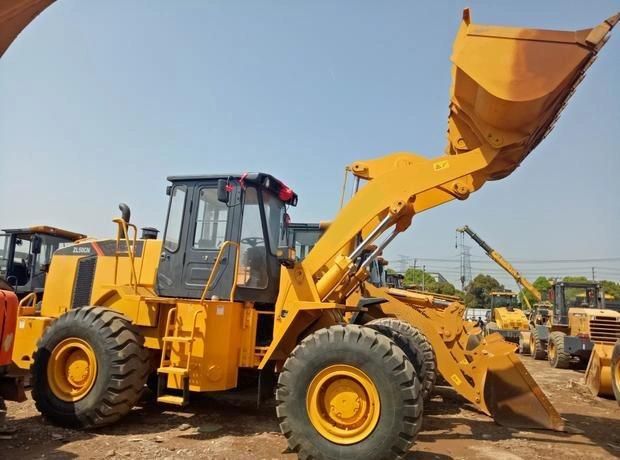

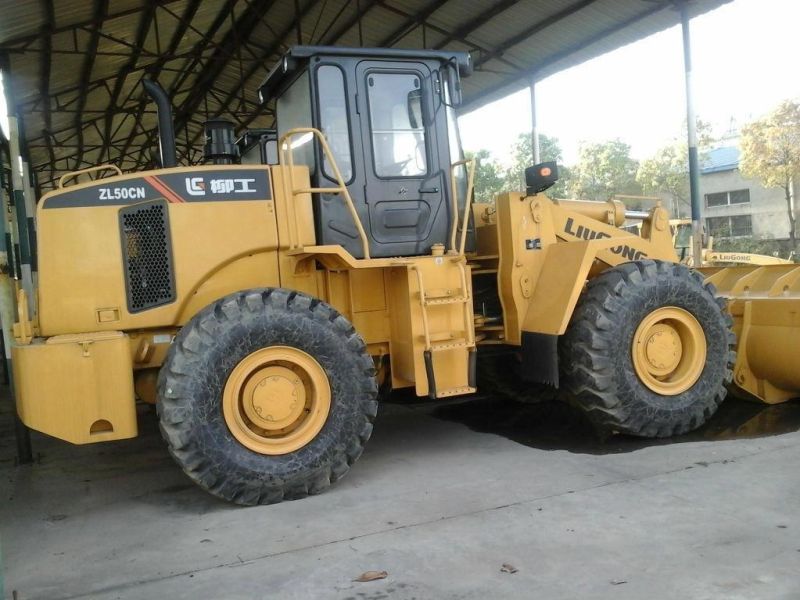

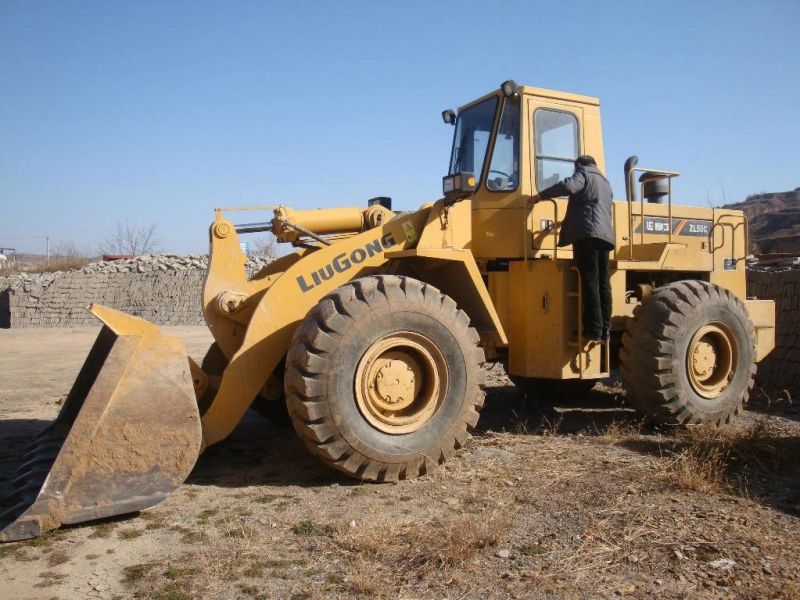

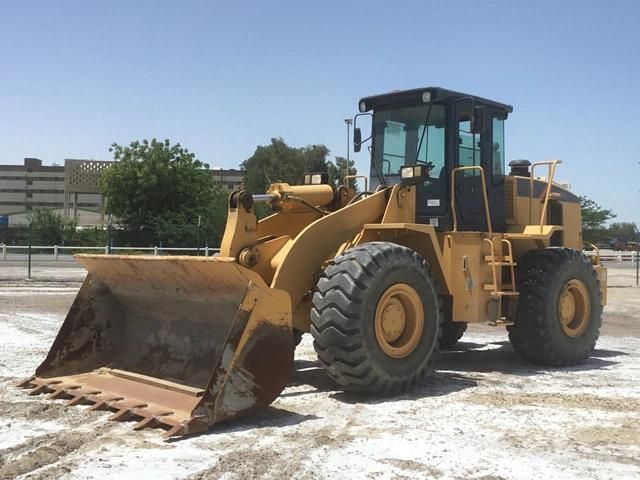

Liugong 5 Ton Hydraulic Front End Wheel Loader (Zl50cn)
Sinomada Heavy Industry (Changsha) Co., Ltd.- Certification：ISO, CE
- Condition：New
- Rated Load：3-6t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：ZL50CN
- Type：Small Loader
- Product Type：Wheel Loader
- Operating Weight：16700kg
- Bucket Capacity：3m3
- Gross Power：162kw
- Transport Package：Roro,Container,Nude
- Specification：7598*2976*3480mm
- Trademark：LIUGONG
- Origin：China
- HS Code：8429510000
- Production Capacity：100units,Month
Description
Product Parameters
Bucket capacity
3.0m3
Rated Load
5000kg
Operating weight
16000kg
Torque ratio
2.55
Type
conunter shaft-type power shit,semi-automatic
Pressure of transmission
1.6~1.8MPa
Driving brake
caliper discs,air hydraulic actuated on al four wheel
Parking brake
shoe brake, applied by manually/air control
Emergency brake
using parking brake,applied by air pressure control
Maximum oil pressure
12.3 Mpa
type
spiral bevel,1-stage reduction
speed ratio
4.625
Rated Power
162kw/2000r/min
Model
WD10G220E23
Type
water-coded,l-arrangement,direct injection,4-stroke diesel engine
Number of cylinder
6
Bore × stroke
121×150mm
Displacement
9.056L
Max.torque
920N.m
Governor
centrifugal all speed governor
Coding system
forced circulation by centrifugal pump pusher type fan
