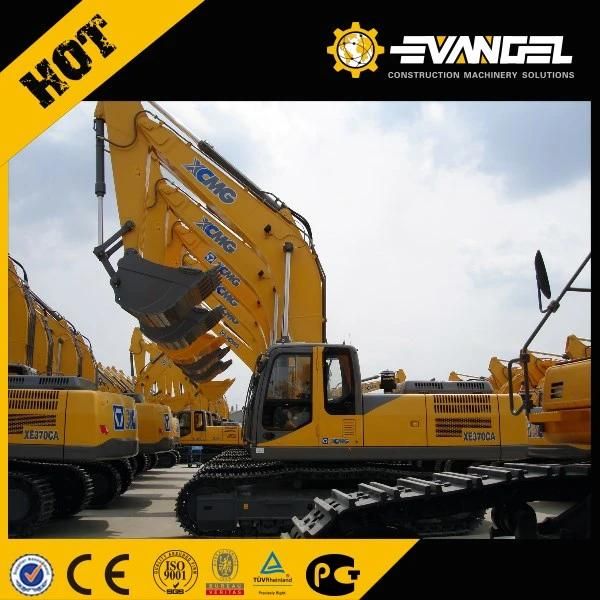

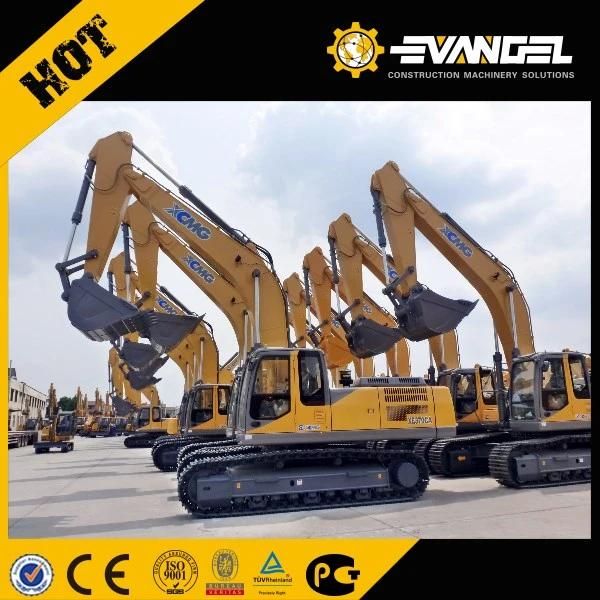

37t Crawler Excavator Xe370ca
Evangel Industrial (Shanghai) Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Shovel
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：1.0~1.5m³
Base Info
- Model NO.：XE370CA
- Size：Large-Scale
- Certification：CE
- Condition：New
- Bucket Capacity: 1.60 M3：Operating Weight: 36600 Kg
- Transport Package：Standard Export Seaworthy Packaging
- Specification：CE
- Trademark：EVANGEL
- Origin：Jiangsu, China
- HS Code：84295212
- Production Capacity：30 Sets Per Month
Description
EngineEngine Model --- ISUZU AA-6HK1XQP Type Direct injection --- √ Four strokes --- √ Water cooling --- √ Turbo charged --- √ Air to air intercooler --- √ No. of cylinders --- 6 Rated power/speed kW/ r/min 184/2000 Max. torque/speed N. m 872.8/1700 Displacement L 7.79 Main data Travel speed km/h 5.4/3.2 Max. gradeability % 58 Swing speed r/min 10.1 Ground pressure kPa 67.8 Bucket digging force at power max. kN 242 Arm crowd force at power max. kN 174 Hydraulic Main pump -- 2Plunger pump Rate flow L/min 2x280 Max pressure of system MPa 31.5/34.3 Max pressure of travel equipment MPa -- Max pressure of swing equipment MPa -- Pilot press setting MPa 3.9 Oil & Fuel refilling Fuel tank capacity L 600 Hydraulic tank capacity L 320 Engine lubrication L 28 Dimensions Overall length mm 11105 Overall width mm 3190 Overall height mm 3300 Overall width of upperstructure mm 2960 Track length mm 5070 Overall width of undercarriage mm 3190 Standard track shoe width mm 600 Track length on ground mm 4040 Track gauge mm 2590 Clearance under counter weight mm 1197 Ground clearance mm 500 Tail swing radius mm 3450 Working Range Max. digging height mm 10445 Max. dumping height mm 7287 Max. digging depth mm 7423 Max. digging depth of cut for mm 7266 Max. vertical wall digging depth mm 6776 Max. digging reach mm 11114 Max. digging reach mm 10907 Max. turning radius mm 4376
