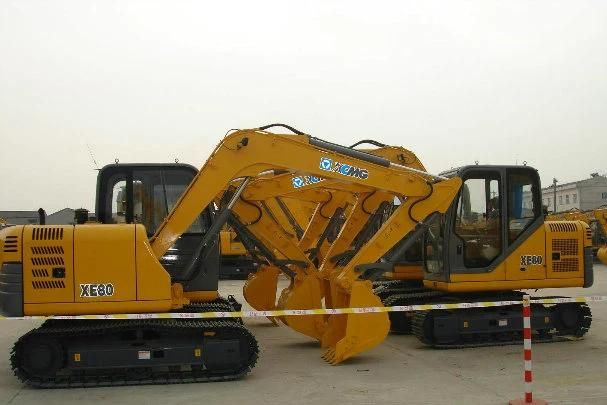

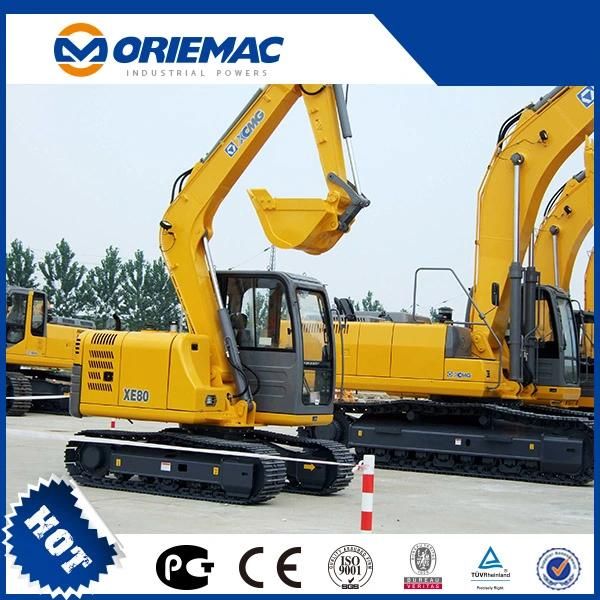

New 8 Ton Small Mini Crawler Excavator Xe80
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Shovel
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.1~0.5m³
Base Info
- Model NO.：XE80
- Size：Small-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Transport Package：Nude Package
- Specification：ISO, CE, GOST
- Trademark：Oriemac
- Origin：China(Mainland), Jiangsu
- Production Capacity：1500 Units, Year
Description
ModelXE80 Bucket capacity m3 0.34 Standard bucket width mm 722 Operation weight kg 7,425 Dimension
(in transportation) Overall length mm 6,155 Overall width mm 2,220 Overall height mm 2,618 Min. clearance mm 392 Engine Model CumminisB3.3 Total displacement L 3.3 Rated output power KW/rpm 60/2200 Digging performance Max. digging height mm 7,167 Max. dumping height mm 5,100 Max. digging depth mm 4,140 Max. vertical digging depth mm 3,218 Max. digging radius mm 6,375 Boom deflection angle ° Min. slew radius mm 1,815 Min. rear slew radius mm 1,770 Bucket digging force kn 53.6 Track type Steel Track width mm 450 Travel System Track length mm 2,752 Wheel base mm 2,119 Track gauge mm 1,700 Travel speed (Gear I/II) km/h 4.2/2.7 Gradeability % 70 Slew speed rpm 12 Bulldozing plate Bulldozing plate width mm Bulldozing plate height mm Lifting distance mm Hydraulic pump type Variable pump*1
+gear pump*1 Slew motor type Piston hydraulic motor Travel motor type Piston hydraulic motor Fuel tank capacity L 135 Hydraulic oil tank capacity L 130
