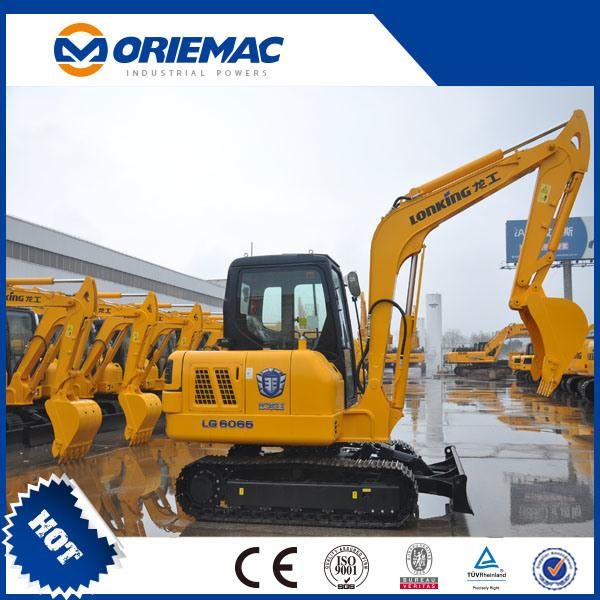

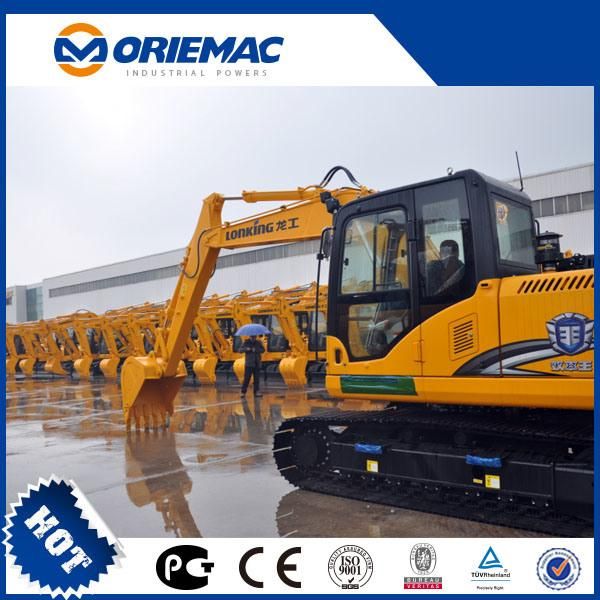

Lonking Hydraulic Small Excavator (CDM6065)

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Type:Crawler Excavator
  • Usage:GM Excavator
  • Bucket:Shovel
  • Transmission:Hydraulic Transmission
  • Drive Type:Internal Combustion Drive
  • Bucket Capacity:0.1~0.5m³

Base Info

  • Model NO.:CDM6065
  • Size:Small-Scale
  • Certification:CE, ISO9001: 2000
  • Condition:New
  • Transport Package:Nude Package
  • Specification:ISO, CE, GOST
  • Trademark:Lonking
  • Origin:China(Mainland)
  • Production Capacity:15000units, Year

Description



Specifications
CDM6065
Engine
Model
Yanmar 4TNV94L-PLK
Yanmar 4TNV98-ZSLK
Rated power
43.3 kW(58.8 hp) /2400 rpm
46.3 kW(58.6 hp) /2200 rpm
Bore× Stroke
94mm×110mm
98mm×110mm
Displacement
3.054 L
3.319 L
Min. Fuel Consumption
220 g/kw.h
Operating weight
Summary
Operating weight:6050kg The operating weight includes the weight of 3000mm standard boom,1550mm standard arm,
0.25m3 standard bucket, 400mm track shoes, lubricating oil, coolant, the full diesel oil tank and the rest standard configuration units.
Ground pressure
32 kPa
Fluid capacity
Fuel tank
134 L
95 L
Cooling system
15 L
Engine oil
10.5 L
Swing drive unit
1.2 L
Traveling gear
2×1 L
Hydraulic oil tank
115 L
Swing motor
Summary
Plunger Type (with safety valve and closed type brake)
Swing speed
11 rpm
Travel motor
Summary
Plunger Type (with safety valve and closed type brake)
Taveling speed
2.5 -5.0 km/h
Gradeability
35°(70%)
MaximumTraction
58.3 kN
Traveling mechanism
Standard track shoe width
400 mm
No. of track shoe
39 (each side)
No. of carrierrollers
1 (each side)
No. of track rollers
5 (each side)
Hydraulic system
Main pump
Axial variable plunger pump
Max. flow of system
146 L/min
156.2 L/min
Max. pressure of equipment
24.5 MPa
Max. pilot pressure
3.7 MPa
Operating equipment
Each machine action is under the pilot control.
The right lever controls the motion of boom and bucket while the left lever controls
the arm motion and upper structure swing. The foot pilot valve is provided with the lever joystick
to control the machine traveling or turning by the foot or lever. The traveling gear shift adopts the solenoid switch control.
Electrical system
System voltage:24 V Battery:12 V, 85 ALonking Hydraulic Small Excavator (CDM6065)Lonking Hydraulic Small Excavator (CDM6065)
