• Model NO.：HR300
• Oil Type：Gasoline or Diesel
• Moving Way：Track or Wheel
• Bucket：0.15cbm
• Dimension (Long*Wild*High)：2210*1160*1250
• Packing Detail：Steel Pallet Ply-Wood Cover
• Delivery Detail：About 15 Days
• Transport Package：LCL Packing
• Specification：CE
• Origin：Shandong Taian
• HS Code：842951000
• Production Capacity：30per Month

Engine Model B&SRated Power(KW)15.435(23HP)Rotating speed(rpm)3600noise (Db)less95Hydraulic systemSystem Pressure(Mpa)17Working time(s)lifttipping bucketlanding4.271.343.31





Performance parameters metricimperialRated Load300 kg441 lbBucket Capacity0.15 m 35.33 ft 3Max heavily lift375 kg827 lb Max.Travel Speed0-5.5 km./h0-3.4 mile/h
Operating Weight
Solid tyres bodywork940 kg2072 lb
Ordinary tire body886 kg1953 lb
Widened tire body850 kg1874 lb
Caterpillar vehicle1068 kg2355 lb
Tire modelSolid tyres16*6-8Ordinary tire5.00-8Widened tireKT-302 18*9.5-8  6p/TLHerringbone engineering births18*6.5-8
rimSolid tyres4.33R-8Ordinary tire3.50DWidened tire8*6.5Fuel tank capacity25 LOil tank capacity27 LEngine displacement627 mlBucket breakout force550KgTipping load325kg

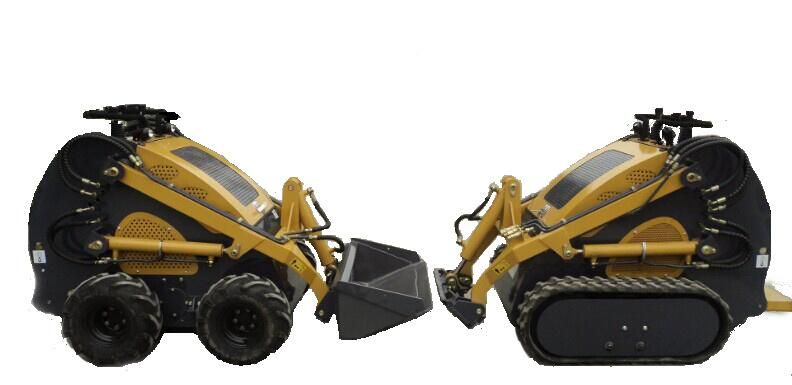

small farm equipment mini multi-purpose machine skid steer mini Spec Below:

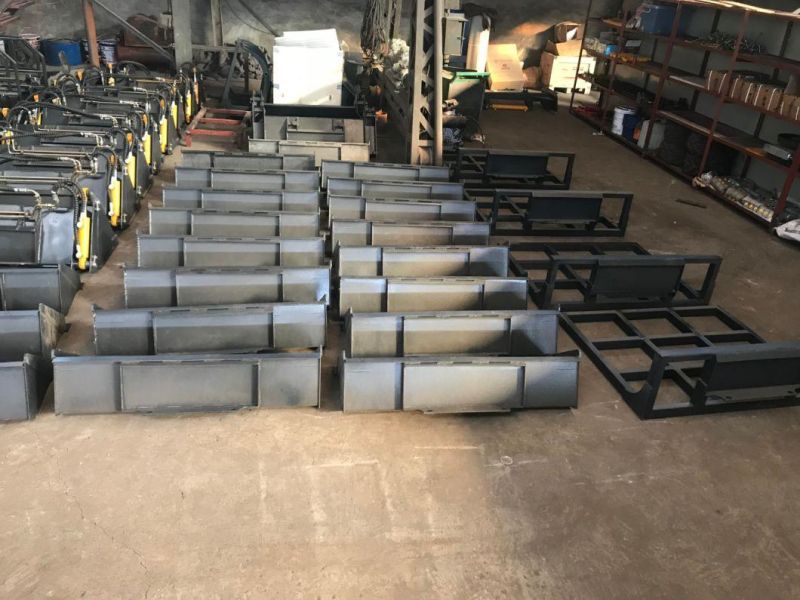

workshop





Packaging & Shipping:

small farm equipment mini multi-purpose machine skid steer mini
* LCL:Steel pallet with ply-wood cover for sample order,It's very strong to protect  mini skid steer  loader .
* FCL:Direct load into the  container: 20'ft container: 8 unit ;  40'ft container: 16unit
