• Model NO.：BY800
• Optional Engine：Honda, B&S and Loncin
• Dimension：217(Cm)*90(Cm)*165(Cm)
• Weight：650kg
• Rated Load：800kg
• Warranty：1 Year
• Certificate：CE
• Transmisson：Hydraulic Pump
• Transport Package：Retort Stands
• Specification：CE
• Trademark：ANT
• Origin：China
• Production Capacity：500 Units,Month

Basic Info.

Model NO. BY800 Optional Engine Honda, B&S and Loncin Dimension 217(Cm)*90(Cm)*165(Cm) Weight 650kg Rated Load 800kg Warranty 1 Year Certificate CE Transmisson Hydraulic Pump Transport Package Retort Stands Specification CE Trademark ANT Origin China Production Capacity 500 Units/Month

Product Description

Garden Loader Power Barrow BY800:



Power Barrow BY800 can be used widely in life with its characteristic of flexibility and handle ability.
You can use it in your home garden, agricultural cultivation and also at construction site.

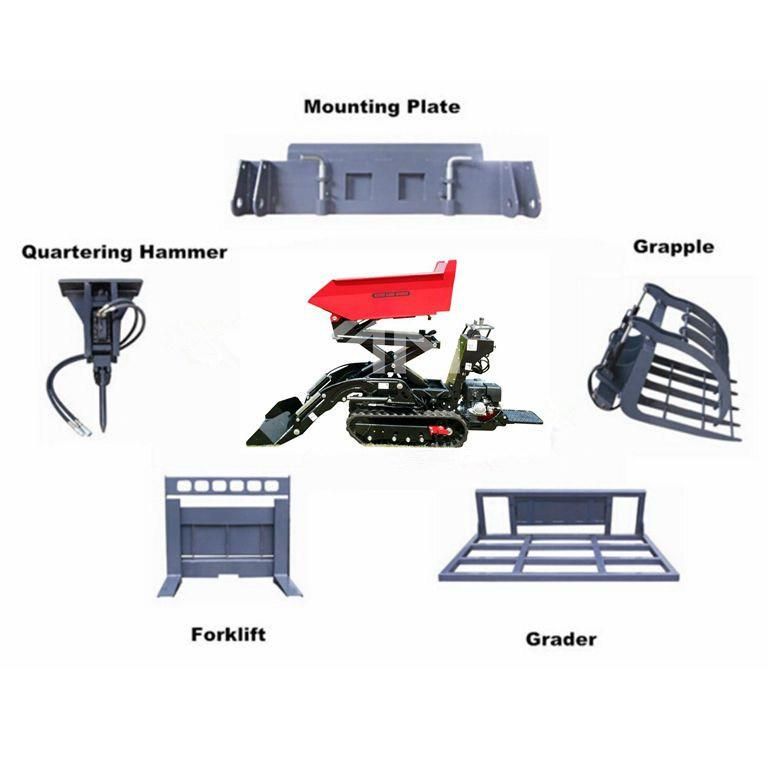

Based on this, we even develop accessories like forklift, power tiller, trench digger, scraper pan and, quartering hammer and grader to make it be used with great facility. Also we have confirmed our sales agent of wheel barrow series in Australia, Germany, and Malaysia and so on.

Specifications:

MODEL                          BY800

Engine                           13hp 4stroke gasoline or diesel
Operative weight           800kgs(1762lbs)
Max travel speed            0-4.8km/h(0-3.0mph)

Transmission
Hydraulic pump               2*variable displ.
Flow                                   2*32.4Vmin(2*8.5gpm)
Hydraulic motors             2*orbital
Brake parking                  Mechanical

Hydraulic system
Hydraulic pump                Gear pump
Flow                                    1*13.5Vmin(1*3.5gpm)
Hi-flow                                 1*22Vmin(1*3.5gpm)
Max pressure                     150bar(2180psi)
Main valve                            2-3way
Cooled system                   air-cooled
Skip tipping system            Hydraulic

Tracks
Standard track width           180mm(7.1in)
Rocking rollers     Yes
Track tensioning   Yes
Loading capacity
20GP         6pcs
40GP         14pcs

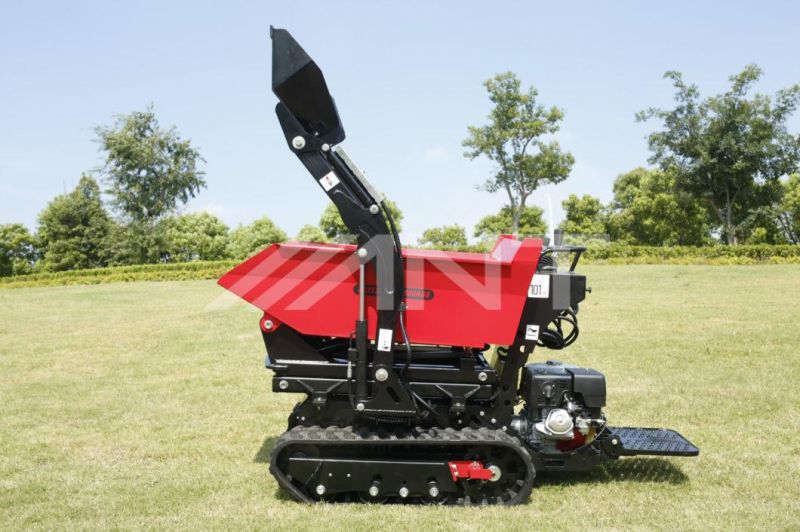

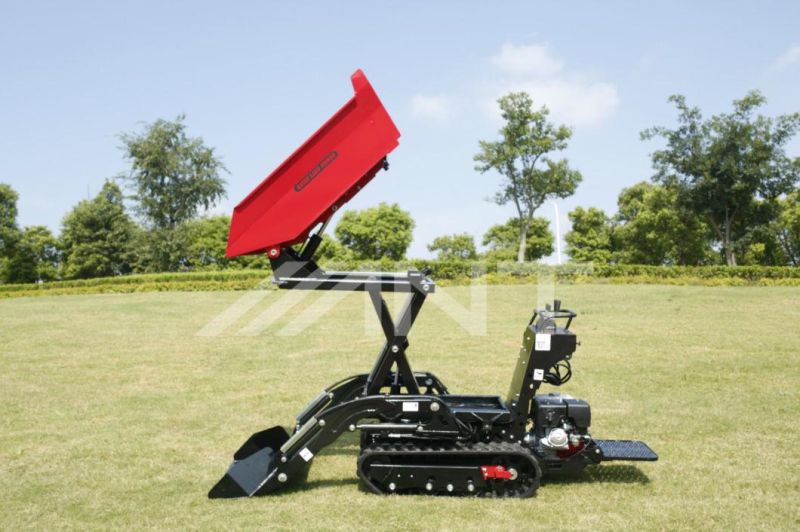

This power barrow can be lifted to 1.45m high(rock bottom) which mke it easy to dump to the truck like the picture below:


This power barrow can be lifted to 1.45m high(rock bottom) which mke it easy to dump to the truck like the picture below:
