• Model NO.：SE220
• Drive Type：Electric Drive
• Bucket Capacity：1.05cbm
• Size：Large-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Minimum Ground Clearance (mm)：470
• Tail Turning Radius (mm)：2925
• Track Length (mm)：4270
• Track Gauge (mm)C：2380
• Track Width (mm)：2980
• Standard Track Shoe Width (mm)：700
• Distance From Slewing Center to Tail (mm：2920
• Maximum Digging Height (mm)：10100
• Maximum Dumping Height (mm)：7190
• Maximum Digging Depth (mm)：6490
• Maximum Vertical Digging Depth (mm)：5770
• Maximum Digging Distance (mm)：9865
• EngineT Model：B5.9-C (China-II)
• Rated Power (Kw/Rpm)：124,2050
• Maximum Swing Speed (R/Min)：11
• Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
• Specification：4915*3040*2980mm
• Trademark：shantui
• Origin：China
• Production Capacity：300piece,Month

Basic Info.

Model NO. SE220 Drive Type Electric Drive Bucket Capacity 1.05cbm Size Large-Scale Certification CE, ISO9001: 2000 Condition New Minimum Ground Clearance (mm) 470 Tail Turning Radius (mm) 2925 Track Length (mm) 4270 Track Gauge (mm)C 2380 Track Width (mm) 2980 Standard Track Shoe Width (mm) 700 Distance From Slewing Center to Tail (mm 2920 Maximum Digging Height (mm) 10100 Maximum Dumping Height (mm) 7190 Maximum Digging Depth (mm) 6490 Maximum Vertical Digging Depth (mm) 5770 Maximum Digging Distance (mm) 9865 EngineT Model B5.9-C (China-II) Rated Power (Kw/Rpm) 124/2050 Maximum Swing Speed (R/Min) 11 Transport Package Nude Package/RO-RO/Bulk Shipment/Suitable Containe Specification 4915*3040*2980mm Trademark shantui Origin China Production Capacity 300piece/Month

Product Description

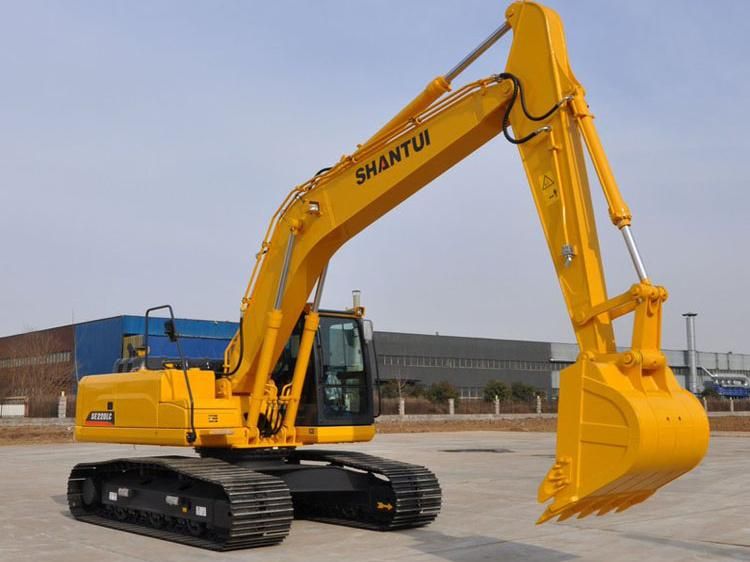

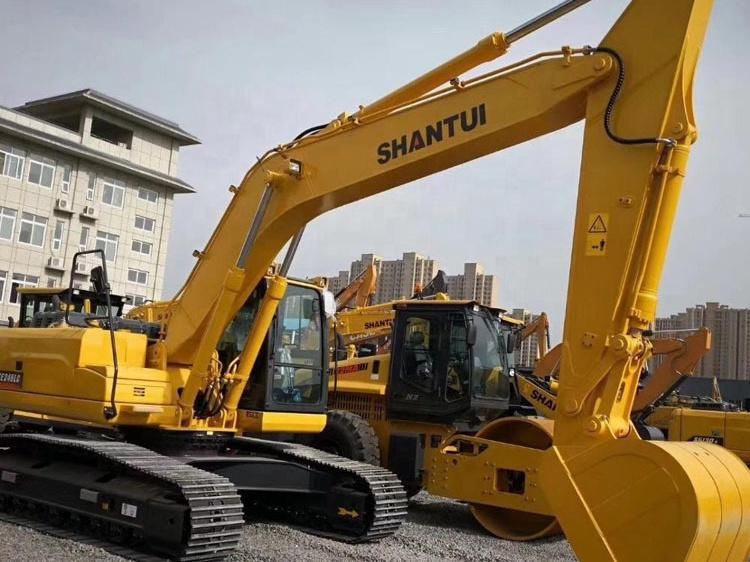

 Shantui 22 Ton Crawler Excavator Se220 with Best Price Ever


CHARACTERISTICOptional attachments

Breaking hammer, ripper, timber grab, stone grab, hydraulic tamper, quick change coupling, and breaking hammer pipeline.

Optional equipment of machine

Refueling pump

Cab warning lamp

Cab ceiling lamp

Cab overhead protective net

Cab front upper protective net

Cab front lower protective net

Rubber track

Narrow bucket

Spacious and comfortable operating environment

The colors of the all-injection-molded interior trim parts are effectively matched as per ergonomics to mitigate the operator's visual fatigue.

The control devices are reasonably arranged to realize large space, broad vision, and convenient and comfortable operations.

The high-power A/C is installed and the adjustable wrist rest and the air cushioned seat are provided to help your all-day comfortable operations.

Intelligent electronic control and optimal power control

The intelligent control system realizes the optimal match between power system and hydraulic system to improve the working efficiency. The automatic idling function is provided to lower the fuel consumption and reduce the operating cost.

The man-machine friendly new generation intelligent electronic control system enables you to master all working status of your machine.

Four preset working modes of P (Heavy-Load), E (Economic), A (Automatic), and B (Breaking Hammer) feature easy switchover.

Drive sprockets, idlers, track rollers, carrier rollers, and tracks

Decades of R&D and manufacturing experiences of drive sprockets, idlers, track rollers, carrier rollers, and tracks and world's leading technologies.

The world's sophisticated forging and heat treatment processes guarantee stable and reliable quality.

Enhanced working device

The design of structural parts is comprehensive optimized and the critical load-carrying locations are reinforced to resist against severe working conditions.

The baseplates, side plates, and reinforcement plates of bucket are made of high-strength wear-resistant material to improve the durability of bucket.

The booms, bucket arms, and buckets of diversified specifications can be combined easily to adapt to diversified working conditions.

High-end system configuration

Domestic leading high-adaptability engine.

The world's first-class hydraulic configuration features high working pressure and low pressure loss.

PARAMETER

Comparative item	SE220 (Standard version)
Overall dimensions
Overall length (mm)	9605
Ground length (During transport) (mm)	4915
Overall height (To the top of boom) (mm)	3040
Overall width (mm)	2980
Overall height (To top of cab) (mm)	3070
Ground clearance of counterweight (mm)	1080
Minimum ground clearance (mm)	470
Tail turning radius (mm)	2925
Track length (mm)	4270
Track gauge (mm)	2380
Track width (mm)	2980
Standard track shoe width (mm)	700
Turntable width (mm)	2725
Distance from slewing center to tail (mm)	2920
Working range
Maximum digging height (mm)	10100
Maximum dumping height (mm)	7190
Maximum digging depth (mm)	6490
Maximum vertical digging depth (mm)	5770
Maximum digging distance (mm)	9865
Maximum digging distance at ground level (mm)	9680
Working device minimum turning radius (mm)	2970
Maximum lifting height of bulldozer blade (mm)	-
Maximum digging depth of bulldozer blade (mm)	-
Engine
Model	Cummins B5.9-C (China-II)
Type	Inline 6-cylinder, high pressure common rail, and water-cooled and turbocharged
Displacement (L)	6.7
Rated power (kW/rpm)	124/2050
Hydraulic system
Type of hydraulic pump	Duplex axial variable displacement plunger pump
Rated working flow (L/min)	2X213
Bucket
Bucket capacity (m³)	1.05
Swing system
Maximum swing speed (r/min)	11
Brake type	Mechanically applied and pressure released
Digging force
Bucket arm digging force (KN)	99/107
Bucket digging force (KN)	137/148
Operating weight and ground pressure
Operating weight (kg)	21900
Ground pressure (kPa)	47.7
Traveling system
Traveling motor	Axial variable displacement plunger motor
Traveling speed (km/h)	3.3/5.1
Traction force (KN)	212
Gradeability	70%(35°)
Tank capacity
Fuel tank capacity (L)	330
Cooling system (L)	28
Engine oil capacity (L)	20
Hydraulic oil tank/system capacity (L)	190/400
