• Model NO.：STR13
• Engine Power：105kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Engine Model：Sc8dk
• Ground Pressure (Kpa)：56.9
• Rated Power/Rated Speed (Kw/Rpm)：105,1900
• Overall Dimensions of Machine (mm)：5470
• Forward Speed Km/H：F1:0-3.2 F2:0-5.9 F3:0-9.8
• Reversing Speed (Km/H)：R1:0-3.9 R2:0-7.1 R3:0-11.9
• Center Distance of Track (mm)：1880
• Width of Track Shoes (mm)：460
• Ground Length：2365mm
• Fuel Tank (L)：300
• Blade Type：Trimming Blade
• Digging Depth (mm)：710
• Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
• Trademark：shantui
• Origin：China
• Production Capacity：300piece,Month

Basic Info.

Model NO. STR13 Engine Power 105kw Certification CE, ISO9001: 2000 Condition New Color Yellow Engine Model Sc8dk Ground Pressure (Kpa) 56.9 Rated Power/Rated Speed (Kw/Rpm) 105/1900 Overall Dimensions of Machine (mm) 5470 Forward Speed Km/H F1:0-3.2 F2:0-5.9 F3:0-9.8 Reversing Speed (Km/H) R1:0-3.9 R2:0-7.1 R3:0-11.9 Center Distance of Track (mm) 1880 Width of Track Shoes (mm) 460 Ground Length 2365mm Fuel Tank (L) 300 Blade Type Trimming Blade Digging Depth (mm) 710 Transport Package Nude Package/RO-RO/Bulk Shipment/Suitable Containe Trademark shantui Origin China Production Capacity 300piece/Month

Product Description

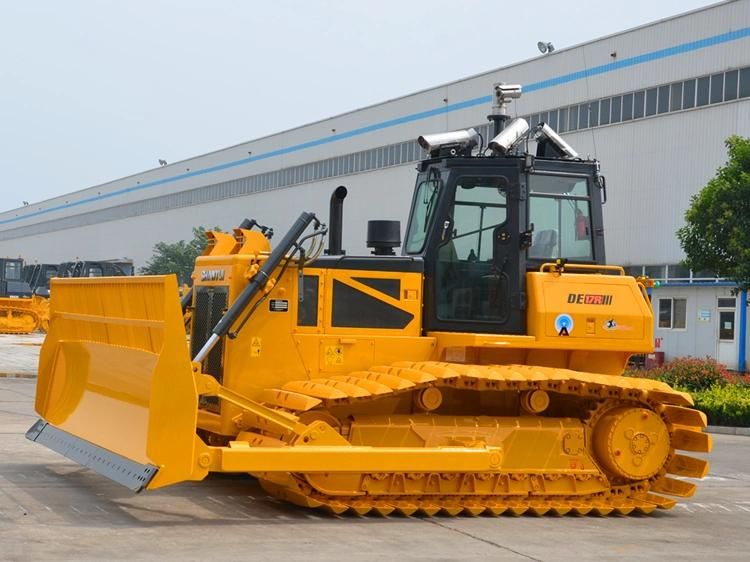

 Shantui Cheap 14500Kg Trimming Bulldozer Str13 with 105kw Engine Power


CHARACTERISTIC:Power System

The installed SC8DK electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.

The rated power reaches 105kW, featuring high torque reserve coefficient.

The improved air filter and intake and exhaust system guarantee up to 99% filtration accuracy to effectively prolong the engine life.

Drive system

The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.

Shantui's self-made drive system features stable performance and reliable quality and has been long proved by the market.

Driving/Riding Environment

The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.

The electronic control hand and foot accelerators guarantee more accurate and comfortable operations.

The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.

Working adaptability

Shantui's mature product chassis system is applicable to diversified severe working conditions, featuring high stability and reliability.

The product features long ground length, high ground clearance, stable driving, and good trafficability.

The environmental sanitation blade, ripper, and universal blade can be installed depending on specific working condition to achieve strong working adaptability. The optional LED working lamps improve the illumination capability during nighttime operations to achieve higher safety and reliability.

Easy maintenances

The structural parts inherit the excellent quality of Shantui's mature products;

The electric harnesses adopt corrugated pipes for protection and deconcentrators for branching, featuring high protection grade.

The fuel filter element and the air filter are designed on one same side to achieve one-stop maintenances.


PARAMETER

Parameter name	STR13(Trimming bulldozer, ore version)
Performance parameters
Operating weight (Kg)	14500
Ground pressure (kPa)	56.9
Engine
Engine model	SC8DK
Rated power/rated speed (kW/rpm)	105/1900
Overall dimensions
Overall dimensions of machine (mm)	5470
Driving performance
Forward speed (km/h)	F1:0-3.2 F2:0-5.9 F3:0-9.8
Reversing speed (km/h)	R1:0-3.9 R2:0-7.1 R3:0-11.9
Chassis System
Center distance of track (mm)	1880
Width of track shoes (mm)	460
Ground length(mm)	2365
Tank capacity
Fuel tank (L)	300
Working device
Blade type	Trimming blade
Digging depth (mm)	710
Ripper type	-
Ripping depth (mm)	-
