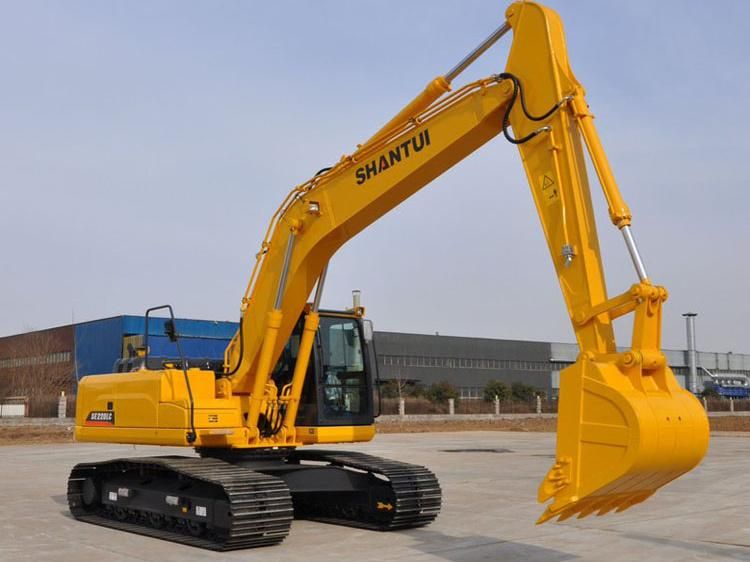

Shantui Excavator Se500LC with 2.5cbm Bucket
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Usage：GM Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
- Drive Type：Electric Drive
Base Info
- Model NO.：SE500LC
- Bucket Capacity：2.5~3.0(2.5)Cbm
- Size：Large-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Maximum Digging Height (mm)：10435
- Maximum Dumping Height (mm)：7590
- Maximum Digging Depth (mm)：6630
- Maximum Vertical Digging Depth (mm)：4850
- Maximum Digging Distance (mm)：10975
- Maximum Digging Distance at Ground Level：10745
- Working Device Minimum Turning Radius (M：4370
- Engine Model：Qsm11(China III)
- Displacement (L)：10.8
- Rated Working Flow (L/Min)：2X392
- Maximum Swing Speed (R/Min)：9
- Ground Pressure (Kpa)：86
- Fuel Tank Capacity (L)：720
- Cooling System (L)：24
- Engine Oil Capacity (L)：35
- Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
- Specification：12240*3890*3715mm
- Trademark：shantui
- Origin：China
- Production Capacity：300piece,Month
Description
Basic Info.
Model NO. SE500LC Bucket Capacity 2.5~3.0(2.5)Cbm Size Large-Scale Certification CE, ISO9001: 2000 Condition New Maximum Digging Height (mm) 10435 Maximum Dumping Height (mm) 7590 Maximum Digging Depth (mm) 6630 Maximum Vertical Digging Depth (mm) 4850 Maximum Digging Distance (mm) 10975 Maximum Digging Distance at Ground Level 10745 Working Device Minimum Turning Radius (M 4370 Engine Model Qsm11(China III) Displacement (L) 10.8 Rated Working Flow (L/Min) 2X392 Maximum Swing Speed (R/Min) 9 Ground Pressure (Kpa) 86 Fuel Tank Capacity (L) 720 Cooling System (L) 24 Engine Oil Capacity (L) 35 Transport Package Nude Package/RO-RO/Bulk Shipment/Suitable Containe Specification 12240*3890*3715mm Trademark shantui Origin China Production Capacity 300piece/MonthProduct Description
High Quality Shantui Excavator SE500LC With 2.5Cbm Bucket For SaleCHARACTERISTICEnhanced working device
The design of structural parts is comprehensive optimized and the critical load-carrying locations are reinforced to resist against severe working conditions.
The baseplates, side plates, and reinforcement plates of bucket are made of high-strength wear-resistant material to improve the durability of bucket.
The booms, bucket arms, and buckets of diversified specifications can be combined easily to adapt to diversified working conditions.
Enhanced working deviceThe design of structural parts is comprehensive optimized and the critical load-carrying locations are reinforced to resist against severe working conditions.
The baseplates, side plates, and reinforcement plates of bucket are made of high-strength wear-resistant material to improve the durability of bucket.
The booms, bucket arms, and buckets of diversified specifications can be combined easily to adapt to diversified working conditions.
Spacious and comfortable operating environmentThe colors of the all-injection-molded interior trim parts are effectively matched as per ergonomics to mitigate the operator's visual fatigue.
The control devices are reasonably arranged to realize large space, broad vision, and convenient and comfortable operations.
The high-power A/C system and the air cushioned seat guarantee comfortable driving/riding.
The cab is installed with standard overhead and front lower protective nets to effectively safeguard the driver.
Drive sprockets, idlers, track rollers, carrier rollers, and tracksShantui's 30-year R&D and manufacturing experiences of drive sprockets, idlers, track rollers, carrier rollers, and tracks and world's leading technologies guarantee extraordinary mining operating performance.
The world's sophisticated forging and heat treatment processes guarantee stable and reliable quality.
Intelligent electronic control and optimal power controlThe intelligent control system realizes the optimal match between power system and hydraulic system to improve the working efficiency and reduce the fuel consumption.
The man-machine friendly new generation intelligent electronic control system enables you to master all working status of your machine.
Four preset working modes of P (Heavy-Load), E (Economic), A (Automatic), and B (Breaking Hammer) feature easy switchover.
Quick and convenient maintenancesThe backward-openable engine hood features handy opening, large opening angle, and easy maintenances.
The engine oil filter element is arranged remotely at the right door to ease the maintenances.
The high-precision fuel filter element is centrally arranged at the left door to ease the maintenances.
The filling of coolant and the replacement of air filter element are easily accessible.
The independent oil radiator control effectively prevents the overheating symptom in summer and under-cooling symptom in winter and eases the cleaning.
Optional equipment of machineRefueling pump
Cab warning lamp
Cab ceiling lamp
Cab front upper protective net
Rubber track
Narrow bucket
Optional attachmentsBreaking hammer, ripper, timber grab, stone grab, quick change coupling, hydraulic tamper, and breaking hammer pipeline.
PARAMETER| Comparative item | SE500LC (Standard version) |
| Overall dimensions | |
| Overall length (mm) | 12240 |
| Ground length (During transport) (mm) | 7505 |
| Overall height (To the top of boom) (mm) | 3890 |
| Overall width (mm) | 3715 |
| Overall height (To top of cab) (mm) | 3345 |
| Ground clearance of counterweight (mm) | 1390 |
| Minimum ground clearance (mm) | 575 |
| Tail turning radius (mm) | 3840 |
| Track length (mm) | 5475 |
| Track gauge (mm) | 2760 |
| Track width (mm) | 3360 |
| Standard track shoe width (mm) | 600 |
| Turntable width (mm) | 3530 |
| Distance from slewing center to tail (mm) | 3800 |
| Working range | |
| Maximum digging height (mm) | 10435 |
| Maximum dumping height (mm) | 7590 |
| Maximum digging depth (mm) | 6630 |
| Maximum vertical digging depth (mm) | 4850 |
| Maximum digging distance (mm) | 10975 |
| Maximum digging distance at ground level (mm) | 10745 |
| Working device minimum turning radius (mm) | 4370 |
| Maximum lifting height of bulldozer blade (mm) | - |
| Maximum digging depth of bulldozer blade (mm) | - |
| Engine | |
| Model | QSM11(China III) |
| Type | Inline 6-cylinder, high pressure common rail, and water-cooled and turbocharged |
| Displacement (L) | 10.8 |
| Rated power (kW/rpm) | 280/2000 |
| Hydraulic system | |
| Type of hydraulic pump | Variable displacement duplex plunger pump |
| Rated working flow (L/min) | 2x392 |
| Bucket | |
| Bucket capacity (m³) | 2.5~3.0(2.5) |
| Swing system | |
| Maximum swing speed (r/min) | 9 |
| Brake type | Mechanically applied and pressure released |
| Digging force | |
| Bucket arm digging force (KN) | 285 |
| Bucket digging force (KN) | 305 |
| Operating weight and ground pressure | |
| Operating weight (kg) | 49500 |
| Ground pressure (kPa) | 86 |
| Traveling system | |
| Traveling motor | Axial variable displacement plunger motor |
| Traveling speed (km/h) | 3.3/5.6 |
| Traction force (KN) | 364 |
| Gradeability | 70%(35°) |
| Tank capacity | |
| Fuel tank capacity (L) | 720 |
| Cooling system (L) | 24 |
| Engine oil capacity (L) | 35 |
| Hydraulic oil tank/system capacity (L) | 300/460 |
