EPA Gasoline Smallest Medium Crawler Excavator Se220LC Mini Diggers
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Field Maintenance and Repair Service
- Warranty：1 Year Warranty
- Type：Crawler Excavator
- Usage：GM Excavator
- Bucket：Shovel
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：SE220LC
- Drive Type：Electric Drive
- Bucket Capacity：0.5~1.0m³
- Size：Medium-Sized
- Certification：CE
- Condition：New
- Power：112kw
- Operating Weight：22800kg
- Maximum Digging Height：10075mm
- Maximum Digging Depth：6575mm
- Transport Package：Nude Package
- Trademark：shantui
- Origin：China
- HS Code：8429510000
- Production Capacity：20untis,Month
Description
Basic Info.
Model NO. SE220LC Drive Type Electric Drive Bucket Capacity 0.5~1.0m³ Size Medium-Sized Certification CE Condition New Power 112kw Operating Weight 22800kg Maximum Digging Height 10075mm Maximum Digging Depth 6575mm Transport Package Nude Package Trademark shantui Origin China HS Code 8429510000 Production Capacity 20untis/MonthProduct Description

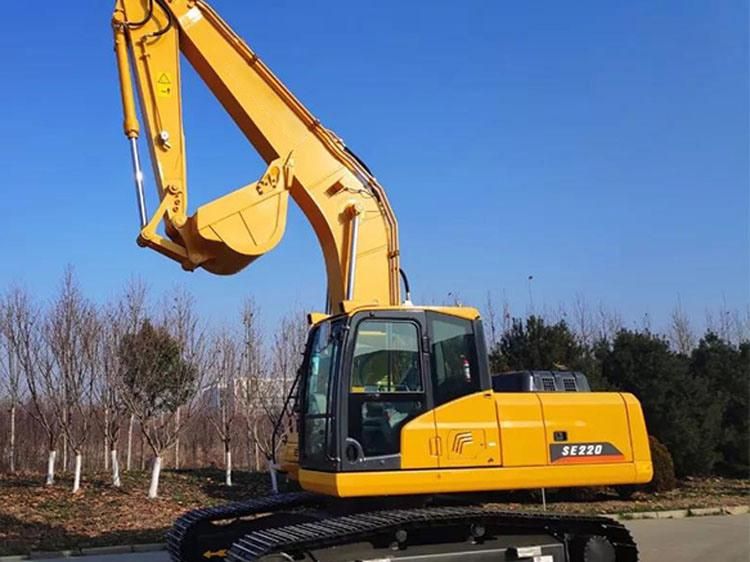

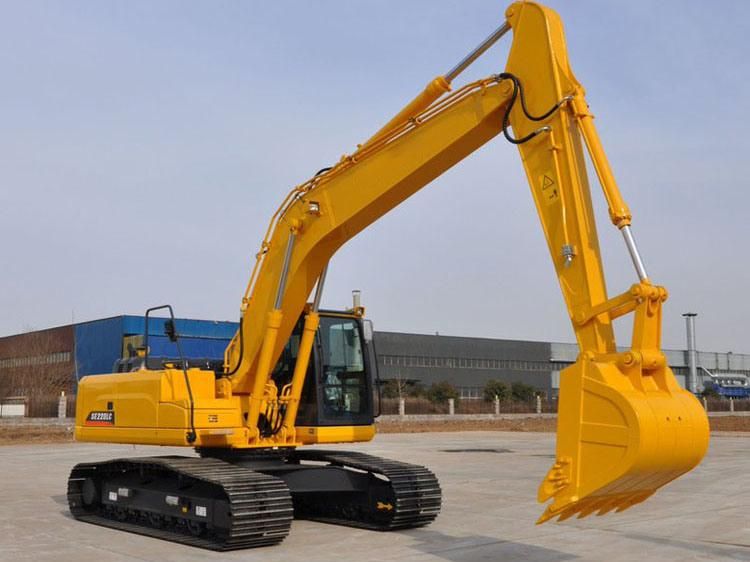

EPA Gasoline Smallest Medium Crawler Excavator SE220LC Mini Diggers
SpecificationHigh-end system configuration
Cummins B5.9 six-cylinder engine, national II emission standard, strong power, durable, equipped with a three-level fuel filter system, escort.
Optimal negative flow control hydraulic system, reliable performance, easy to maintain;
Large displacement main pump and engine perfect match, the whole machine speed is faster.
Paramenters
| Comparative item | SE220LC |
| Overall dimensions | |
| Overall length (mm) | 9615 |
| Ground length (During transport) (mm) | 5025 |
| Overall height (To the top of boom) (mm) | 3035 |
| Overall width (mm) | 3180 |
| Overall height (To top of cab) (mm) | 3045 |
| Ground clearance of counterweight (mm) | 1055 |
| Minimum ground clearance (mm) | 466 |
| Tail turning radius (mm) | 2925 |
| Track length (mm) | 4460 |
| Track gauge (mm) | 2380 |
| Track width (mm) | 3180 |
| Standard track shoe width (mm) | 800 |
| Turntable width (mm) | 2725 |
| Distance from slewing center to tail (mm) | 2920 |
| Working range | |
| Maximum digging height (mm) | 10075 |
| Maximum dumping height (mm) | 7165 |
| Maximum digging depth (mm) | 6515 |
| Maximum vertical digging depth (mm) | 5795 |
| Maximum digging distance (mm) | 9865 |
| Maximum digging distance at ground level (mm) | 9685 |
| Working device minimum turning radius (mm) | 2970 |
| Engine | |
| Model | Cummins B5.9-C |
| Type | Water cooled, six cylinder in-line, turbocharged |
| Displacement (L) | 5.9 |
| Rated power (kW/rpm) | 112/1950 |
| Hydraulic system | |
| Type of hydraulic pump | Variable piston pump |
| Rated working flow (L/min) | 2x218 |
| Bucket | |
| Bucket capacity (m³) | 1.05 |
| Swing system | |
| Maximum swing speed (r/min) | 10.2 |
| Brake type | |
| Digging force | |
| Bucket arm digging force (KN) | 92.5 |
| Bucket digging force (KN) | 127 |
| Operating weight and ground pressure | |
| Operating weight (kg) | 22800 |
| Ground pressure (kPa) | 35.3 |
| Traveling system | |
| Traveling motor | Axial variable plunger motor |
| Traveling speed (km/h) | 3.2/4.7 |
| Traction force (KN) | 203 |
| Gradeability | 70% |
| Tank capacity | |
| Fuel tank capacity (L) | 330 |
| Cooling system (L) | 28 |
| Engine oil capacity (L) | 20 |
| Hydraulic oil tank/system capacity (L) | 400 |
