• Model NO.：GYP-1046
• Certification：ISO9001: 2000, CE, TUV SGS
• Condition：New
• Engine Type：Kohler CH940
• Working Diameter：L2340xw1150mm
• Speed：120-140rpm
• Engine：Air-Cooled,4-Cycle,Gasoline
• Max Output Kw(HP)：25.4kw(34HP)
• Max Speed：3600rpm
• Fuel Tank：40
• Angle Adjustment：Hydraulic
• Control Mode：Hydraulic
• Dimension：L2540*W1240*H1485
• Transport Package：in Wooden Carton
• Specification：46"
• Trademark：geyo
• Origin：China
• HS Code：8479102100
• Production Capacity：100PCS,Month

Basic Info.

Model NO. GYP-1046 Certification ISO9001: 2000, CE, TUV SGS Condition New Engine Type Kohler CH940 Working Diameter L2340xw1150mm Speed 120-140rpm Engine Air-Cooled,4-Cycle,Gasoline Max Output Kw(HP) 25.4kw(34HP) Max Speed 3600rpm Fuel Tank 40 Angle Adjustment Hydraulic Control Mode Hydraulic Dimension L2540*W1240*H1485 Transport Package in Wooden Carton Specification 46" Trademark geyo Origin China HS Code 8479102100 Production Capacity 100PCS/Month

Product Description

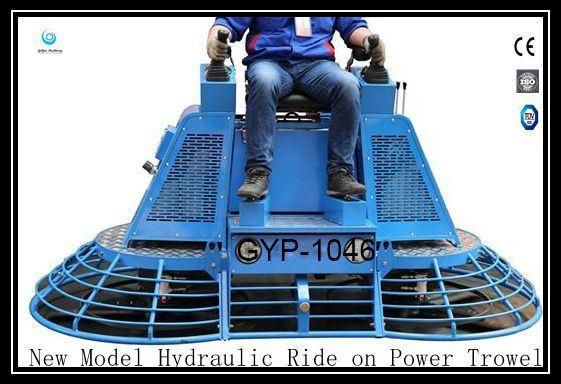

Hydraulic motor concrete ride on power float/trowel GYP-1046 with Kohler Engine


This hydraulic ride on power trowel series could greatly increase work efficiency for surface of concrete raised paste and trowel,smooth out,Widely used in building large area ground ,like factory,warehouse,square and so on.

Features and advantages

1.Ride on operation reduces intensity of labor and increase efficiency of work
2.With dual rotor,much heavier weight and much better compaction,the efficiency is higher than walk behind power trowel
3.A non-overlapping is designed for two pans working
4.Hydraulic type steering system with rapid response and easy control
5.Low barycenter design provides stable operation
6.A strong power supplied by Honda or Kohler gasoline engine
7.5 blades design,much better compaction result

Specification

Model	GYP-96H
Weight(kgs)	598
Dimension(mm)	L2540*W1240*H1485
Working Diameter(MM)	L2430*W1150
Speed(rpm)	120-140
Engine	Air-cooled,4-cycle gasoline
Engine Type	Kohler CH940
Max output	25.4kw(34.0hp)
Max Speed(rpm)	3600
Fuel Tank(Liter)	40
Angel Adjustment	Hydraulic
Control Mode	Hydraulic

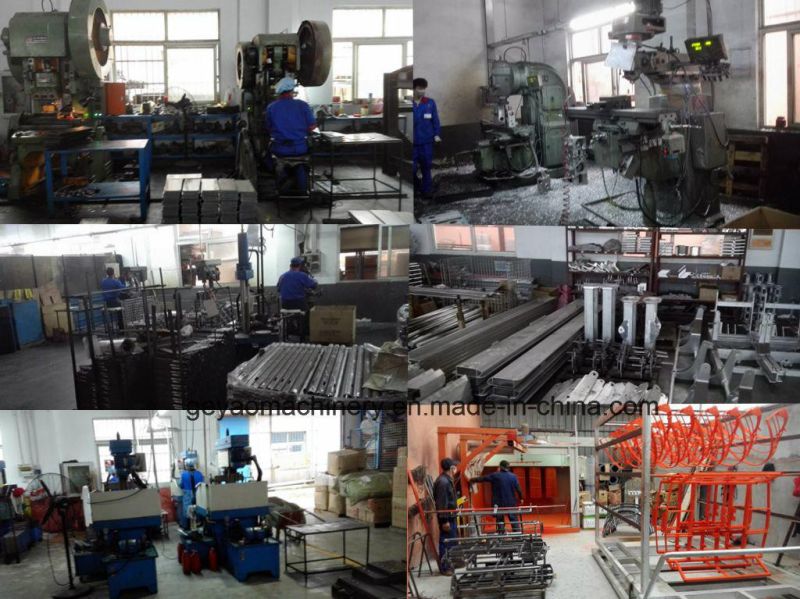

Mechanical operation processing

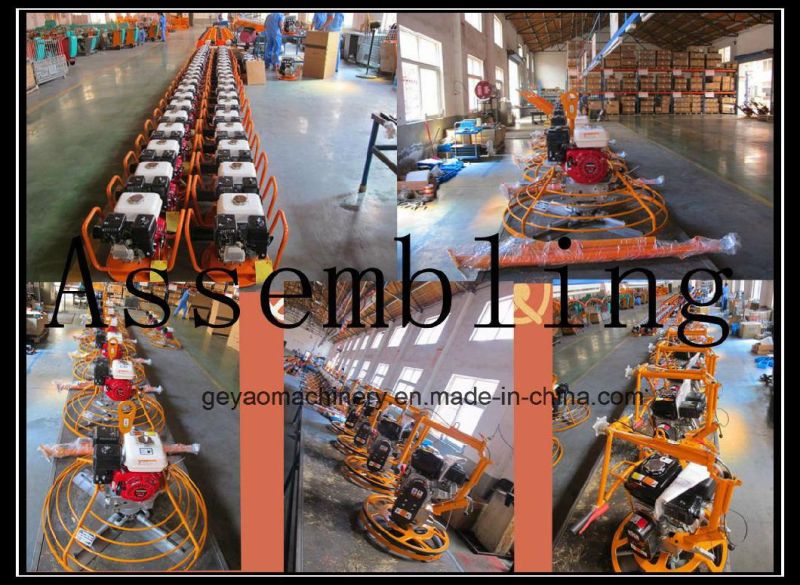

Assembling

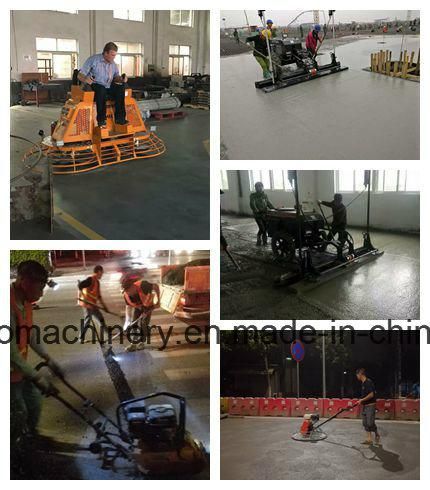

Performance

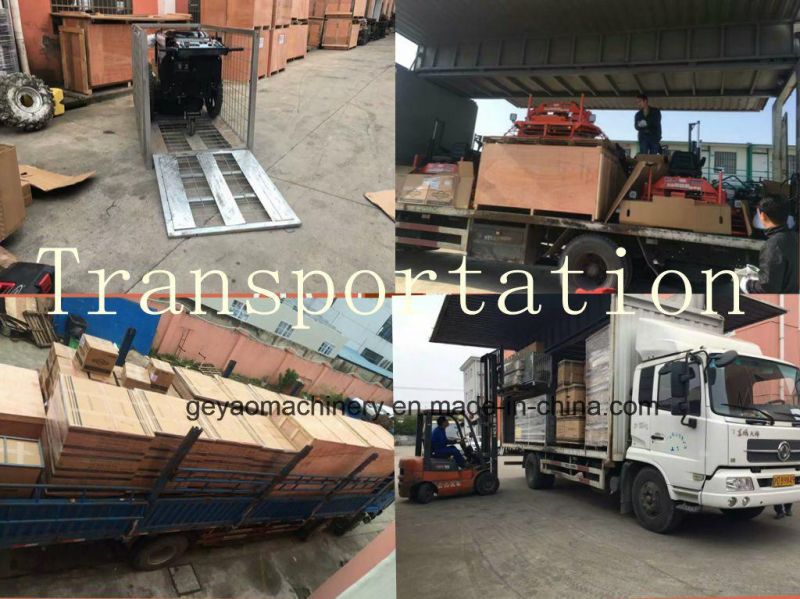

Transportation
