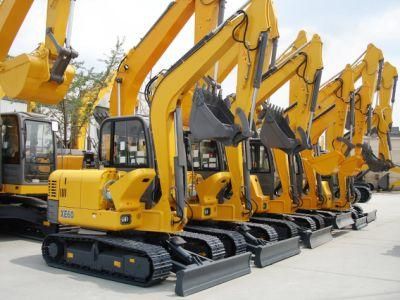

Small Excavator Oriemac Xe60ca Xe60d for Sale
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Grab Shovel
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.09-0.23
Base Info
- Model NO.：XE60CA
- Size：Large-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Color：Yellow
- Transport Package：Nude, Suitable for Shiping
- Specification：ISO
- Trademark：Oriemac
- Origin：Jiangsu, China
- Production Capacity：100 Sets,Month
Description
XE60CAModel Unit XE60CA Operating weight kg 5960 Standard bucket capacity m³ 0.09-0.23 Main performance Travel speed km/h 4.2/2.2 Swing speed r/min 11 Max. gradeability / 30° Ground pressure kPa 32.5 Max.Bucket digging force kN 48.3 Max.arm crowd force kN 32.5 Overall size Overall length mm 5960 Overall width mm 1920 Overall height mm 2585 Overall width of upperstructure mm 1780 Track length mm 2540 Overall width of undercarriage mm 1920 crawer width mm 400 Dozer black(width/height) mm 1920×340 Tumbler distance mm 1990 Crawer gauge mm 1550 Clearance under counterweight mm 710 Ground clearance mm 385 Min.tail swing radius mm 1660 Working range Max. digging height mm 5630 Max. dumping height mm 3945 Max. digging depth mm 3830 Max. vertical wall digging depth mm 2680 Max. digging reach mm 6130 Min. swing radius mm 2460 Max.dozer lifting height mm 390 Max.dozer cutting depth mm 560 Angle of arm deflection Degree /
