• Model NO.：GR135
• Option Model：Gr135,Gr165,Gr180,Gr215,Gr300
• Engine Model：Cummins 6bt5.9
• Rated Power：100,2200kw,Rpm
• Blade (W*H)：3710*610mm
• Max. Gradeability：20%
• Cabin：Air Conditioning Cabin
• Main Hydraulic Conponet：Italy Imported
• Usage：Universal Type
• Load and Unload Method：Front Discharge
• Color：Yellow
• Transport Package：Nude
• Specification：ISO, CE
• Trademark：Oriemac
• Origin：Jiangsu, China
• HS Code：84269900
• Production Capacity：3000PCS,Month

Basic Info.

Model NO. GR135 Option Model Gr135/Gr165/Gr180/Gr215/Gr300 Engine Model Cummins 6bt5.9 Rated Power 100/2200kw/Rpm Blade (W*H) 3710*610mm Max. Gradeability 20% Cabin Air Conditioning Cabin Main Hydraulic Conponet Italy Imported Usage Universal Type Load and Unload Method Front Discharge Color Yellow Transport Package Nude Specification ISO, CE Trademark Oriemac Origin Jiangsu, China HS Code 84269900 Production Capacity 3000PCS/Month

Product Description

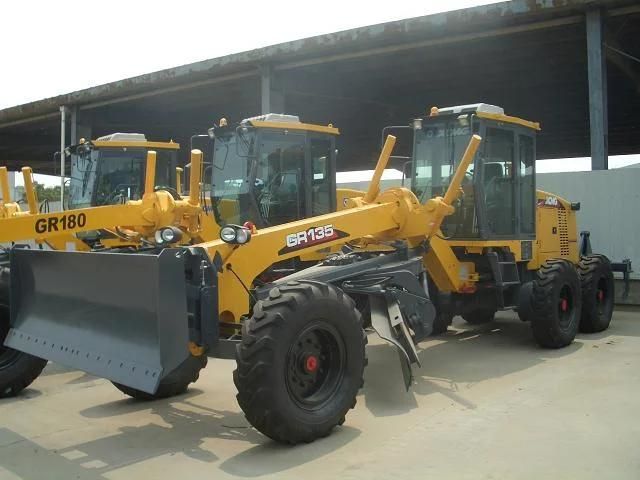

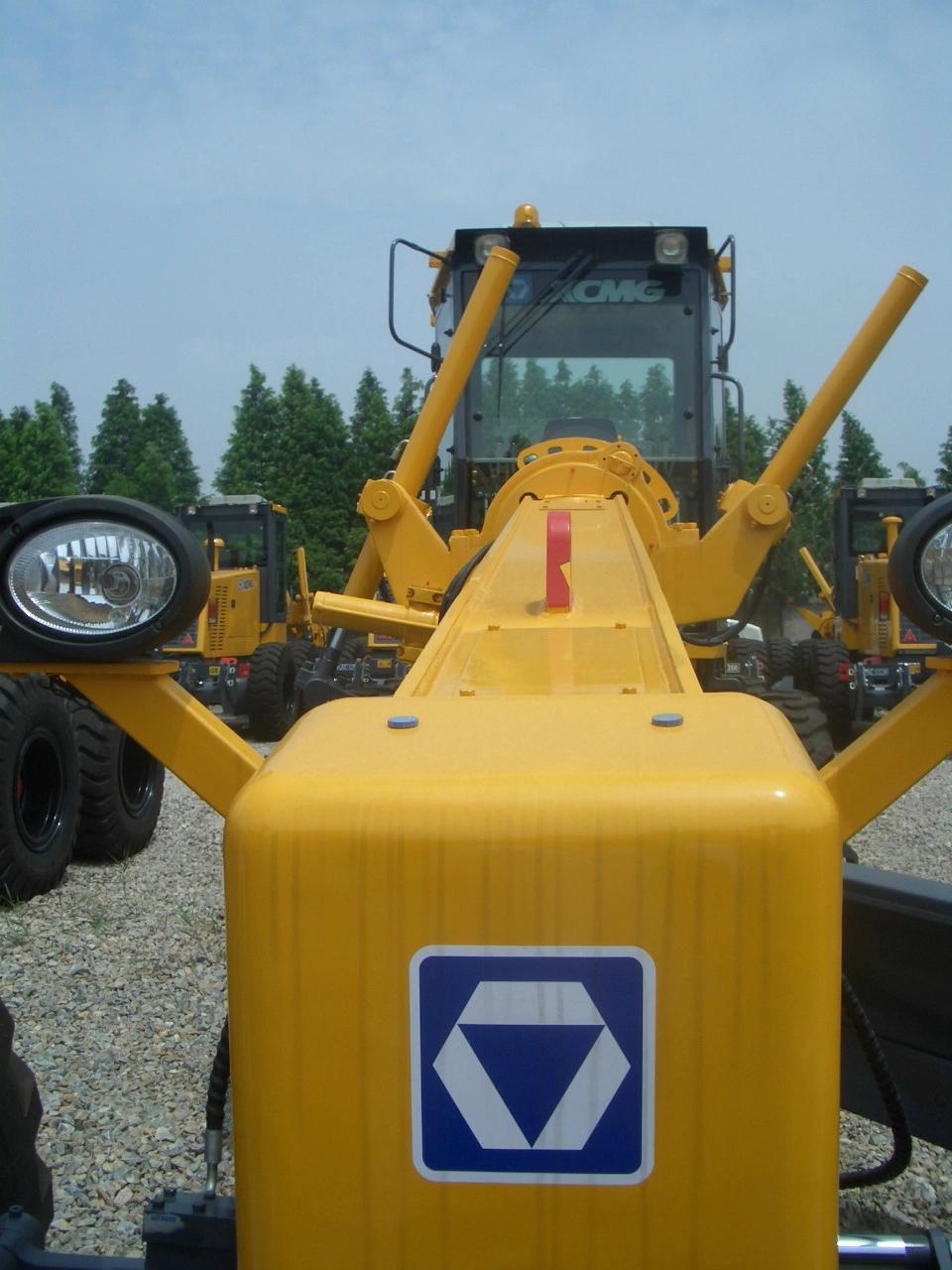

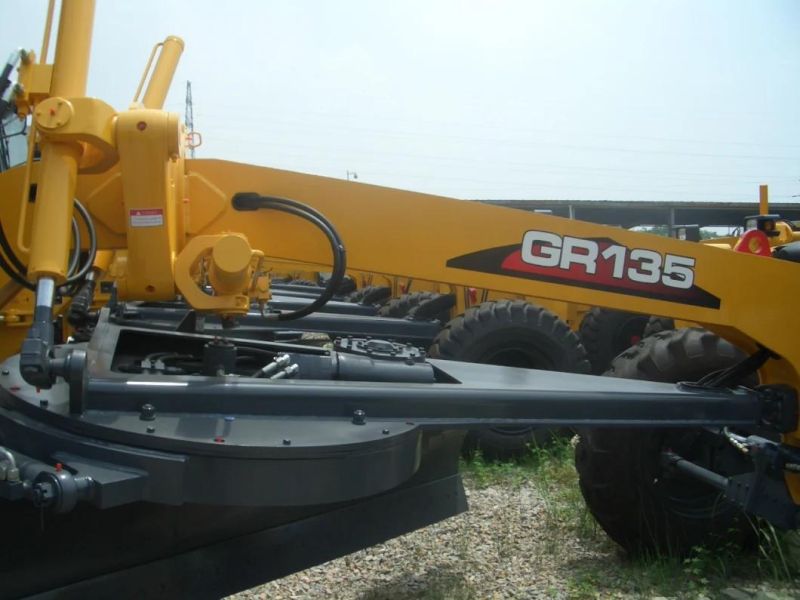

135HP mini motor grader GR135

GR series of motor grader are mainly used in the operation of road surface leveling, ditch digging, slope leveling, bulldozing, scarification and snow removing on the road, airport and farmland. The motor grader is the necessary construction machinery for defense construction, mine construction, urban and rural road construction and irrigation works and farmland improvement.

New appearance.
The adopted articulated frame assists the front wheel to steer, featuring small turning radius and flexibility.
Electro-hydraulic controlled brake power shift gearbox includes 6 Forward gears, and 3 Reverse gears.
The adopted international matched hydraulic parts ensure the reliable operation.
The blade movement is hydraulic controlled fully.
The rear axle is three-way drive axle with NO-SPIN self -locking differential.
The reasonable distribution of the adjustable operation panel, seat, lever and instrument guarantees the comfortable and convenient operation.

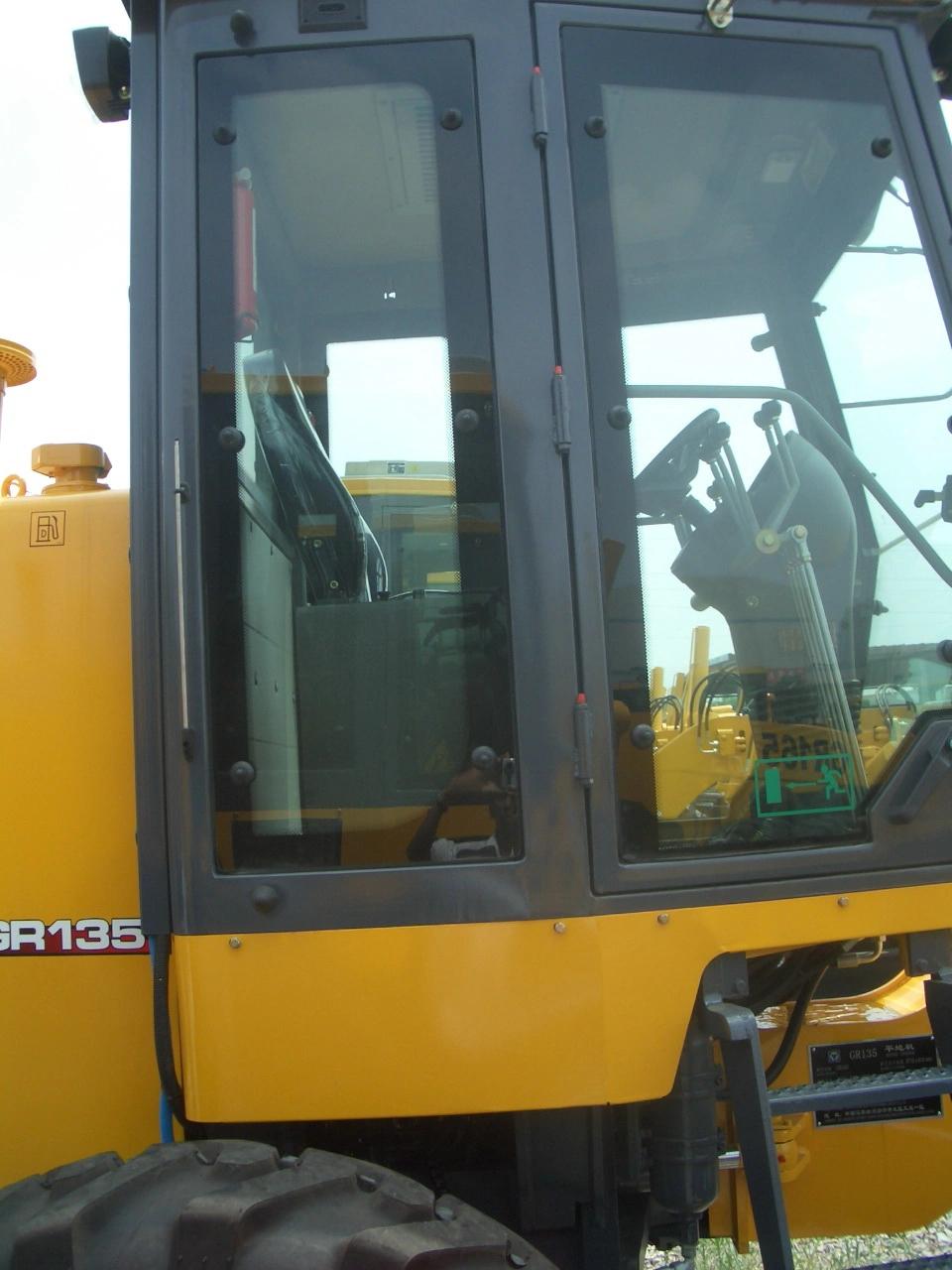

The luxury and beautiful cab features wide visibility and good sealing.
The machine can be equipped with front bulldozing plate, rear scarifier, front harrow and auto-leveling system.

Trade terms:
1. Shipping method: 40HQ container
2. Best delivery: In 7 working days after deposit
3. Payment terms: T/T(30% as deposit, 70% paid before delivery) or L/C
4. Packing: Nude, spare parts and tools into standard export cases
5. Guarantee: One year service after delivery.

Basic specification
Engine model	6BT5.9
Rated power/speed	100/2200kw/rpm
Dimension(LxWxH)	8015×2380×3050mm
Operating weight(Standard)	11000kg
Performance specification
Travelling speed ,forward	5813203042km/h
Travelling speed ,reverse	51330km/h
Tractive force(f=0.75)	61.3KN
Max. gradeability	20%
Tire inflation pressure	300kPa
Working hydraulic pressure	16MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	±49°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	16
Frame articulation angle	±27°
Min. turning radius using articulation	6.6m
Blade
Maximum lift above ground	410mm
Maximum depth of cutting	535mm
Maximum blade position angle	90°
Blade cutting angle	28°_70°
Circle reversing rotation	360°
Moldboard width X height	3710×610mm
