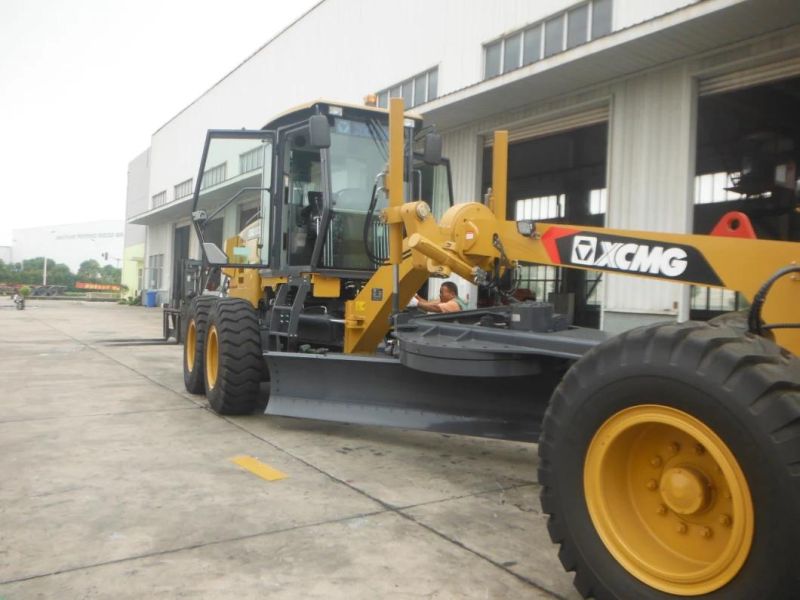

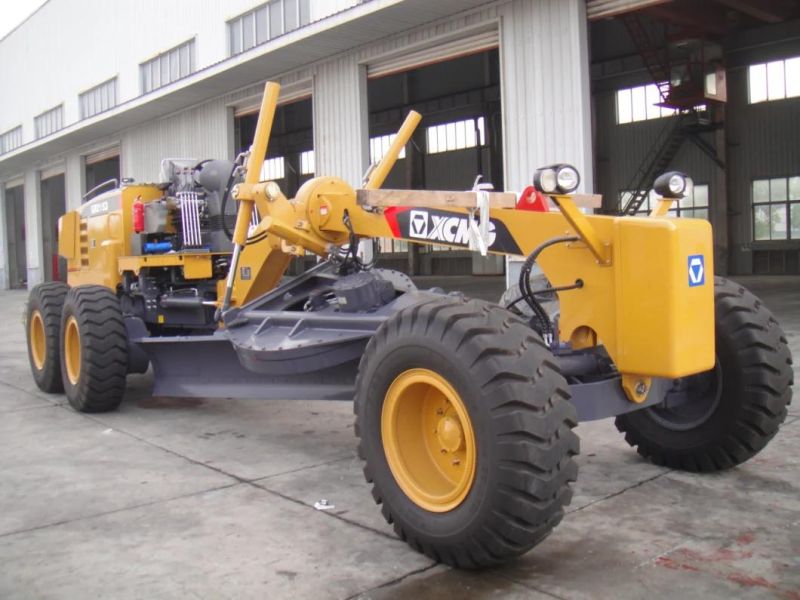

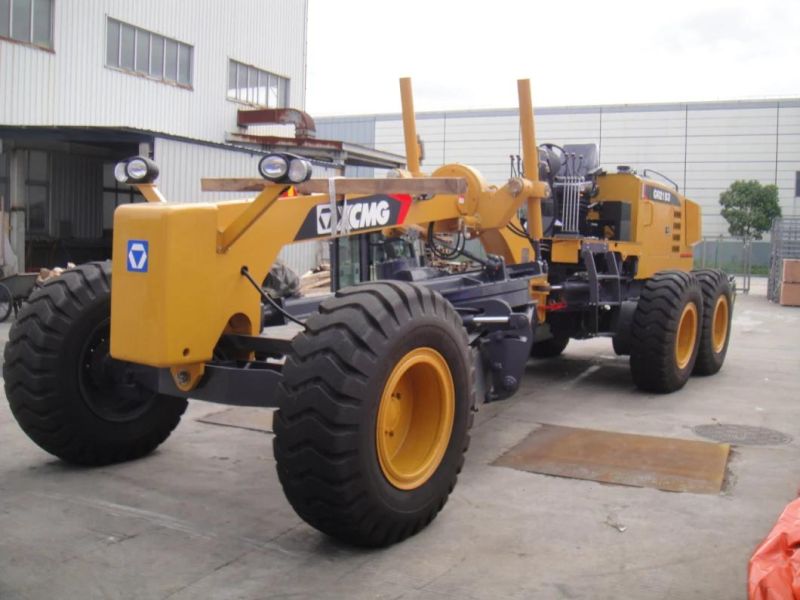

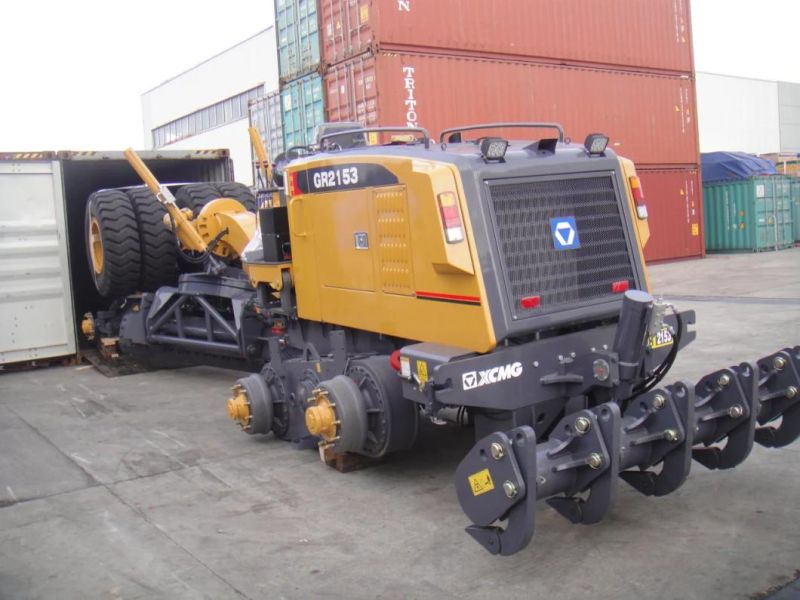

• Model NO.：GR2153

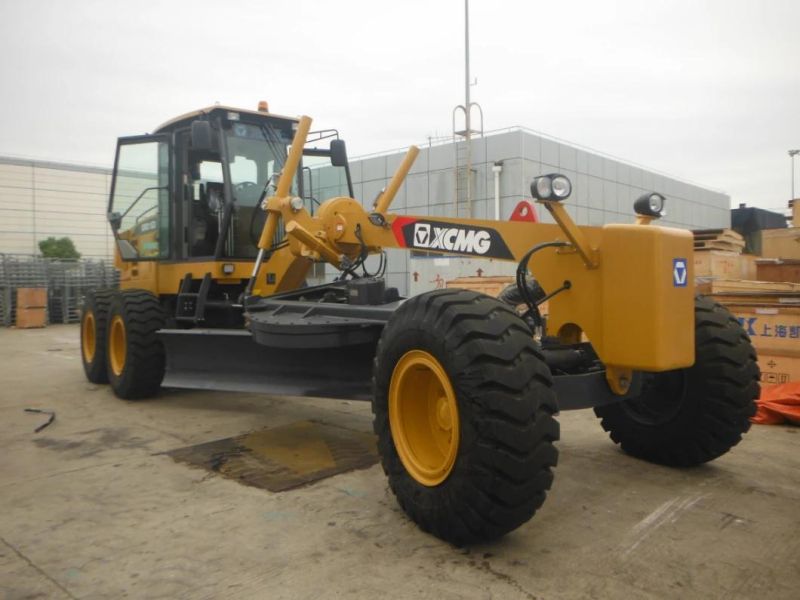

• Name：Xg 215HP Motor Grader with Zf,Hc Transmission
• Engine Model：6ctaa8.3 6CTA8.3
• Rated Power/Speed：153kw,2200rpm 160kw,2200rpm
• Dimension：8970*2625*3470mm
• Operating Weight(Standard)：16500kg
• Travelling Speed ,Forward：5 8 11 19 23 38 Km,H
• Travelling Speed ,Reverse：5 11 23 Km,H
• Tractive Force(F=0.75)：82kn
• Transmission Pressure：1.3~1.8MPa
• Max. Gradeability：20%
• Transport Package：Nude Packing
• Specification：CE, ISO
• Trademark：ORIEMAC
• Origin：Xuzhou, China
• Production Capacity：100 Units,Month

Basic specificationEngine model6CTAA8.3 6CTA8.3Rated power/speed  153kW/2200rpm  160kW/2200rpmDimension(LxWxH)8970×2625×3470mmOperating weight(Standard)16500kg
Performance specification
Travelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.75)82KNMax. gradeability20%Tire inflation pressure260 kPaWorking hydraulic pressure16 MPaTransmission pressure1.3~1.8MPa
Operating specification
Max. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation7.3mBiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height4270×610mm
